2.6 Connecting the Quick Startup to the Internet
Once you have verified that the CCU and EUM are communicating properly, you may want to
to connect the Quick Startup system to the Internet.
To Connect to the Internet
1. Connect the PC to the Ethernet port of the EUM as shown in Figure 5.

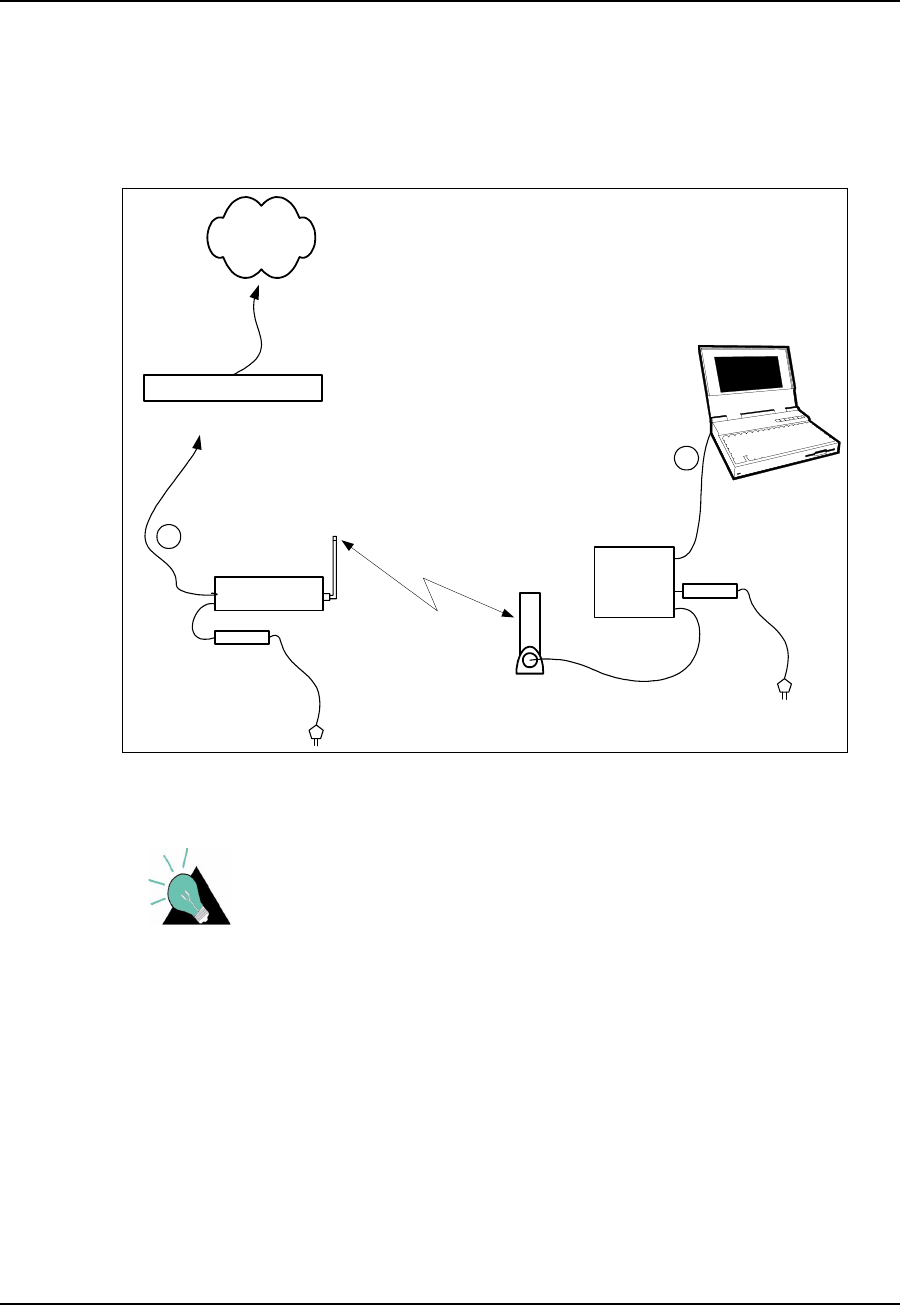

Figure 5 Quick Startup Connecting to the Internet
TIP: If you want to connect the Quick Setup to the Internet, you
must obtain the CCU gateway IP address from your network
administrator. The CCU Ethernet IP address can then be set to
any IP address in the subnet.
2. If you have not already configured the PC IP address as outlined in Testing CCU–
EUM Communications on page 9, open the TCP/IP Properties window in the PC. If
you are not sure how, consult your operating system manual.
3. Select Use the following IP address (or Specify an IP address; the exact wording
depends on the operating system), and enter the following:
IP Address 10.0.1.2
Subnet Mask 255.255.252.0
Default Gateway10.0.0.1
CCU3000
Ethernet crossover
cable
CCU set-up
antenna
CCU power
supply
EUM3000
EUM Antenna
EUM Power Supply
Gateway Router
Internet
1
2
Radio
Link
