User's Manual
Table Of Contents
- Contents
- Contents v
- Figures ix
- Tables xi
- Preface xv
- Appendix A Specifications 157
- Appendix B Factory Configuration 159
- Appendix C CommandLine Syntax 163
- Appendix D Antenna Guidelines 181
- Appendix E CCU/EUM Data Tables 183
- Appendix F Ping Commands 197
- Appendix G SNMP MIB Definitions 199
- Appendix H Operating Statistics 223
- Appendix I IP Plan — Example 241
- Appendix J Acronyms and Glossary 253
- Index 261
- Figures
- Tables
- Preface
- 1 Introduction
- 2 Quick Startup
- 3 Detailed Description
- 4 IP Network Planning
- 5 Radio Network Planning
- 6 Installation/Diagnostic Tools
- 7 Configuring the CCU
- 7.1 CCU and EUM Serial Number, MAC Address, and Station ID
- 7.2 Setting the CCU Password
- 7.3 Configuring the CCU RF Parameters
- 7.4 Configuring CCU IP Parameters
- 7.5 Configuring DHCP Relay
- 7.6 Configuring Port Filtering
- 7.7 Configuring the SNTP/UTC Time Clock
- 7.8 Configuring SNMP
- 7.9 Adding EUMs to the Authorization Table
- 8 Configuring the EUM
- 9 Installing the EUM
- 9.1 Before you Start the EUM Installation
- 9.2 Other EUM Programming Considerations
- 9.3 Installation Overview
- 9.4 Installation Procedures
- 9.4.1 Opening the Box
- 9.4.2 Turning off the End-user’s Cordless Phones
- 9.4.3 Choosing a Location for the EUM and Antenna
- 9.4.4 Connecting the EUM Components
- 9.4.5 Conducting a Preliminary Check of the EUM
- 9.4.6 Positioning the Antenna
- 9.4.7 Mounting the Antenna
- 9.4.8 Connecting the End-user’s PC
- 9.4.9 Obtaining Valid IP Addresses for the End-user’s PC
- 9.4.10 Testing the Data Link
- 9.4.11 Configuring the Browser Application
- 9.4.12 Completing the Installation
- 9.4.13 Baselining the Installation
- 9.4.14 Troubleshooting
- 10 Maintaining the Network
- 11 Monitoring the Network
- 12 Troubleshooting
- 13 Specialized Applications
- Appendix A Specifications
- Appendix B Factory Configuration
- Appendix C CommandLine Syntax
- Appendix D Antenna Guidelines
- Appendix E CCU/EUM Data Tables
- Appendix F Ping Commands
- Appendix G SNMP MIB Definitions
- MIB-II Elements Supported from RFC-1213
- WaveRider CCU Enterprise MIBs
- CCU Base MIB
- CCU General Information Group
- CCU Radio Configuration Group
- CCU Radio Statistics Group
- CCU Radio General Statistics Group
- CCU Radio Driver Statistics Group
- CCU Radio MAC Statistics Group
- CCU Ethernet Statistics Group
- CCU Modem Information MIB
- CCU Registration Information MIB
- CCU Registration Table
- CCU Authorization Information MIB
- CCU Authorization Table
- CCU RFC MIB-II Traps
- WaveRider EUM Enterprise MIBs
- EUM RFC MIB-II Traps
- Appendix H Operating Statistics
- Appendix I IP Plan — Example
- Appendix J Acronyms and Glossary
- Index
2 Quick Startup
10 APCD-LM043-4.0
64 bytes from 10.0.0.1: icmp_seq=6. time=16. ms
64 bytes from 10.0.0.1: icmp_seq=7. time=64. ms
64 bytes from 10.0.0.1: icmp_seq=8. time=64. ms
----10.0.0.1 PING Statistics----
8 packets transmitted, 8 packets received, 0% packet loss
round-trip (ms) min/avg/max = 16/52/112
console>
This test verifies the radio link between the EUM and the CCU.
To Run a Ping Test Through the EUM Ethernet Port
1. Connect the PC to the EUM Ethernet port, as shown in Figure 4.

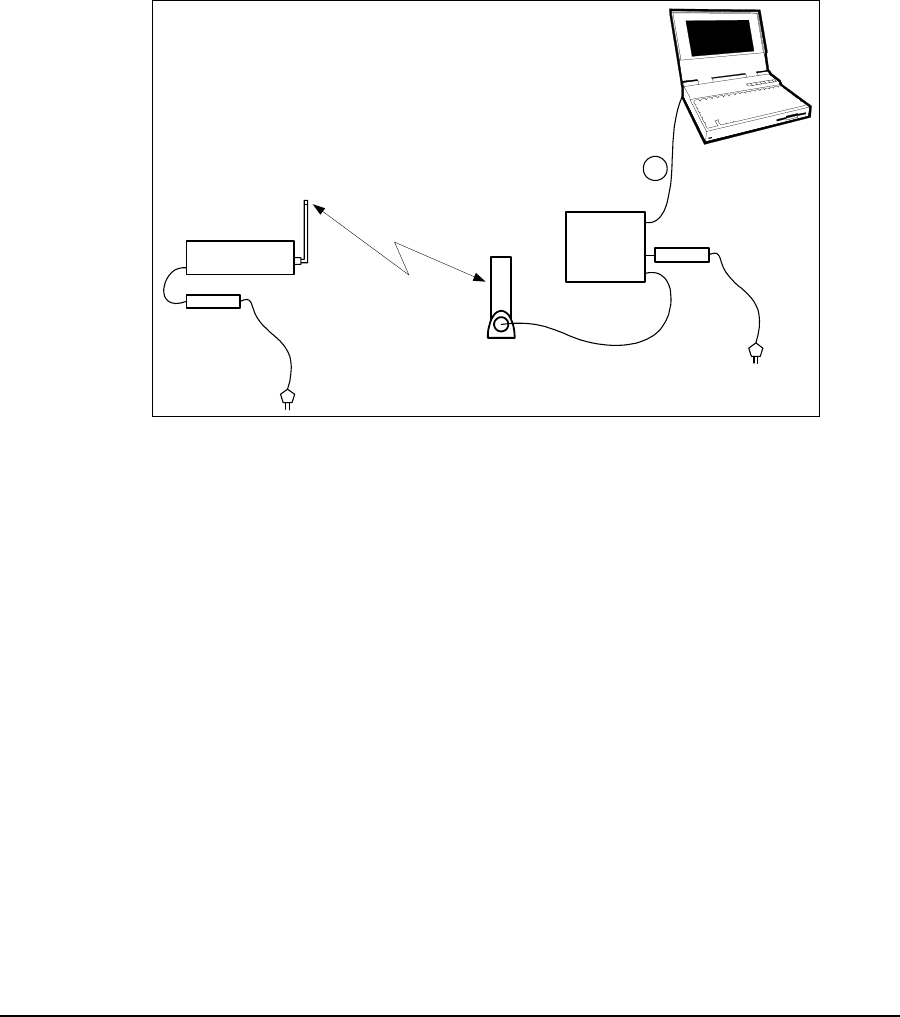

Figure 4 Quick Startup — Ping Test (from EUM Ethernet port)
2. Open the TCP/IP Properties window in the PC. If you are not sure how, consult your
operating system manual.
3. Select Use the following IP address (or Specify an IP address—the exact wording
depends on your operating system). Enter the following:
• IP Address 10.0.1.2
• Subnet Mask 255.255.252.0
• Default Gateway10.0.0.1
4. From the PC, progressively ping the PC Ethernet port (10.0.1.2), the EUM (10.0.0.2),
and the CCU radio (10.0.0.1) and Ethernet (192.168.10.10) ports.
CCU3000
Ethernet crossover
cable
CCU set-up
antenna
CCU power
supply
EUM3000
EUM Antenna
EUM Power Supply
1
Radio
Link
