2QuickStartup
APCD-LM043-4.0 9
5. Confirm that the EUM has been properly configured, as follows:
Console> ip
Ethernet/USB IP Address: 10.0.0.2
Ethernet/USB Net Mask : fffffc00
Gateway IP Address: 10.0.0.1
Console> radio
RF Power: HIGH
Radio Frequency: 9150
Console>
2.5 Testing CCU–EUM Communications
Once you have completed the configuration of the Quick Startup, you can test
communications between the CCU and the EUM by pinging the CCU through the EUM
console port.
To Run a Ping Test Through the EUM Console Port
1. Connect the PC to the EUM console port, as shown in Figure 3.

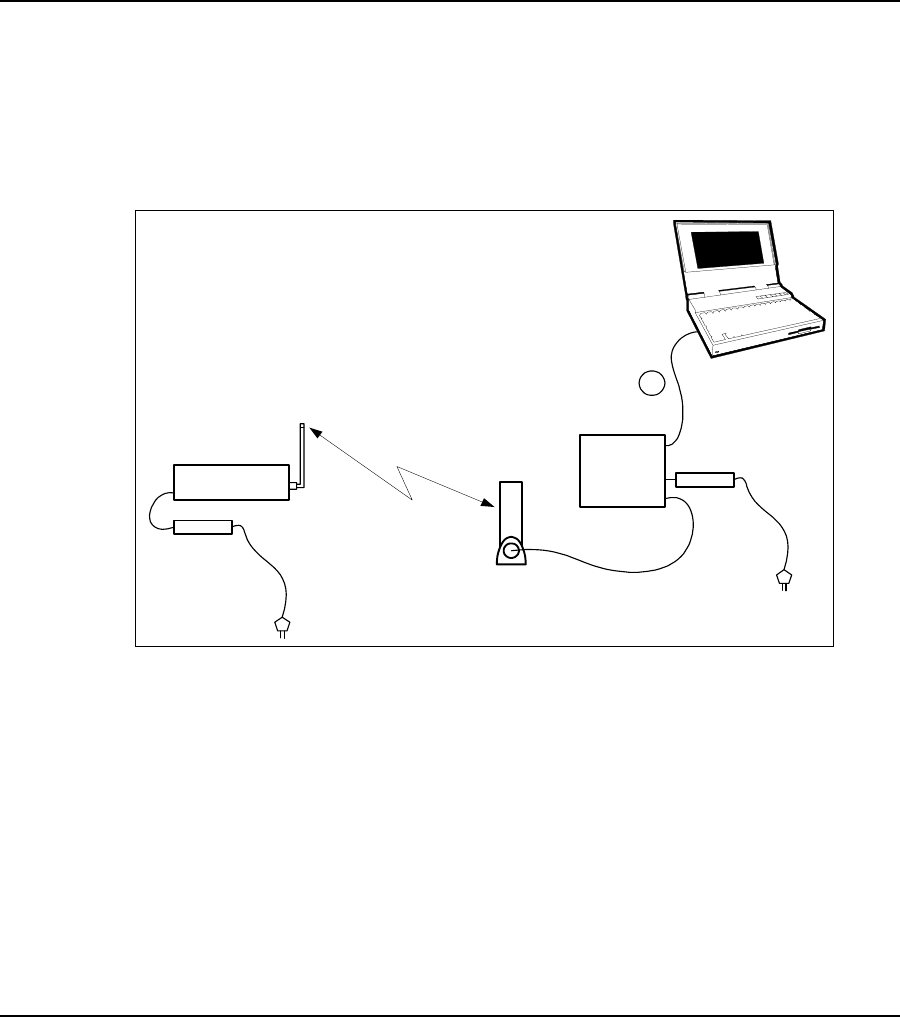

Figure 3 Quick Startup — Ping Test (from console port)
2. From the EUM, ping the CCU radio port (IP address 10.0.0.1), as follows. Press any
key to stop.
console>
console> ping 10.0.0.1
Press any key to stop
PING 10.0.0.1: 56 data bytes
64 bytes from 10.0.0.1: icmp_seq=1. time=112. ms
64 bytes from 10.0.0.1: icmp_seq=2. time=48. ms
64 bytes from 10.0.0.1: icmp_seq=3. time=48. ms
64 bytes from 10.0.0.1: icmp_seq=4. time=32. ms
64 bytes from 10.0.0.1: icmp_seq=5. time=32. ms
CCU3000
CCU set-up
antenna
CCU power
supply
EUM3000
EUM Antenna
EUM Power Supply
Radio
Link
1
RS232 cable
