2 Quick Startup
8 APCD-LM043-4.0
2.4 EUM Configuration
1. Connect the PC to the console port of the EUM, as shown in Figure 2.

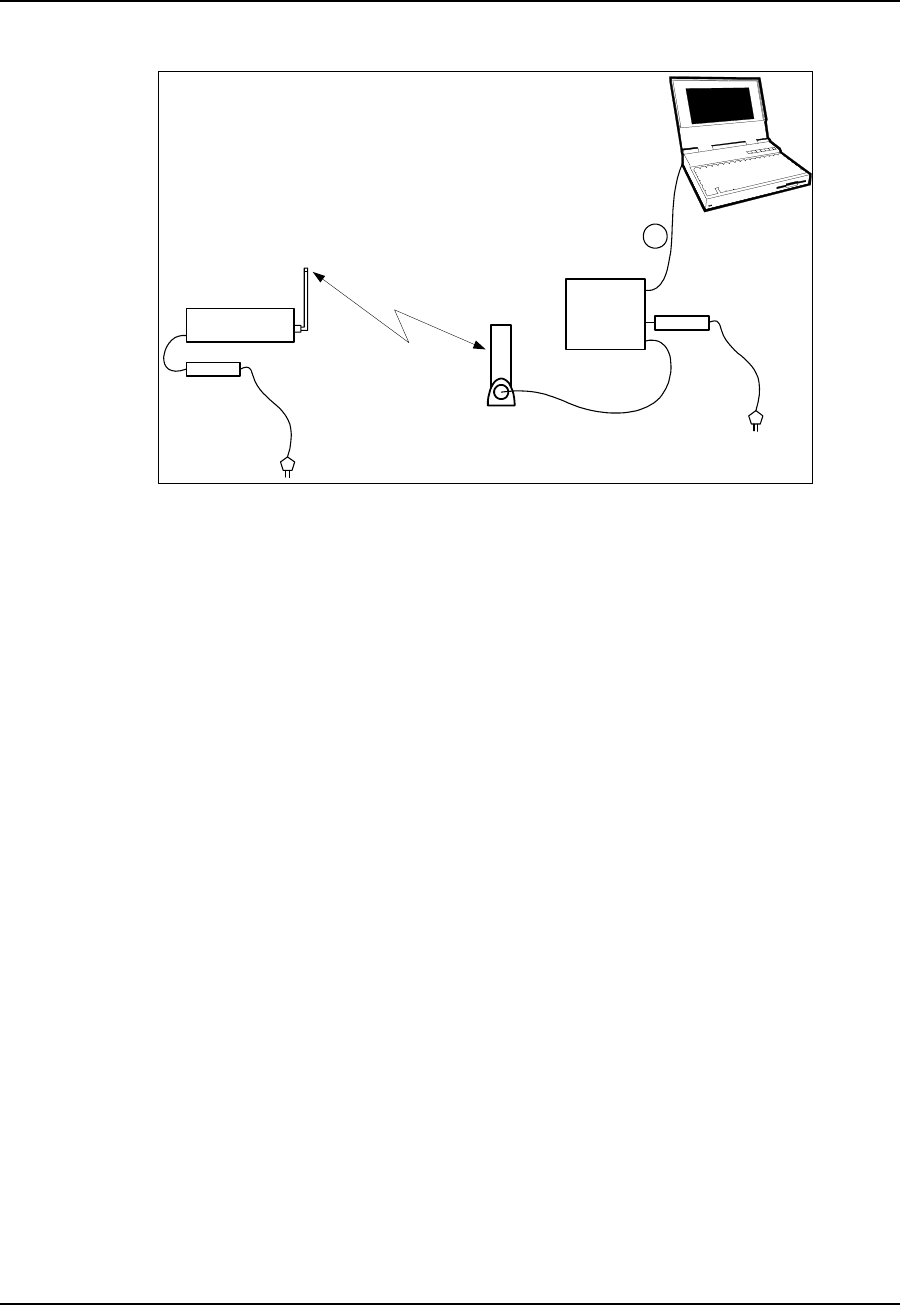

Figure 2 Quick Startup — EUM Configuration
2. Start the terminal emulation software.
3. Type the following commands to configure the EUM:
WaveRider Communications, Inc. LMS3000
Password:
Console> ip ethernet 10.0.0.2 22
Console> ip gateway 10.0.0.1
Console>
Console> radio frequency 9150
Console>
Console> save
Basic Config saved
Port Filter Config saved
sntp cfg file saved
Console>
4. Reboot the EUM for the settings to take effect.
Console> reset
rebooting EUM ...
(... Power On Self Test ...)
WaveRider Communications, Inc. LMS3000
Password:
CCU3000
RS232 cable
CCU set-up
antenna
CCU power
supply
EUM3000
EUM Antenna
EUM Power Supply
1
Radio
Link
