User's Manual

2 Quick Startup
6 APCD-LM043-4.0
2.2 Equipment Setup
1. Remove the equipment from the boxes and set up the physical configuration shown in
Figure 1. Use this setup procedure to configure the CCU, while keeping the following
points in mind:
• Maintain the order of installation shown in Figure 1.
• Maintain at least 3 to 5 meters of physical separation between CCUs and
EUMs.
• Ensure the paths between the CCU and EUMs are relatively free from
obstruction.

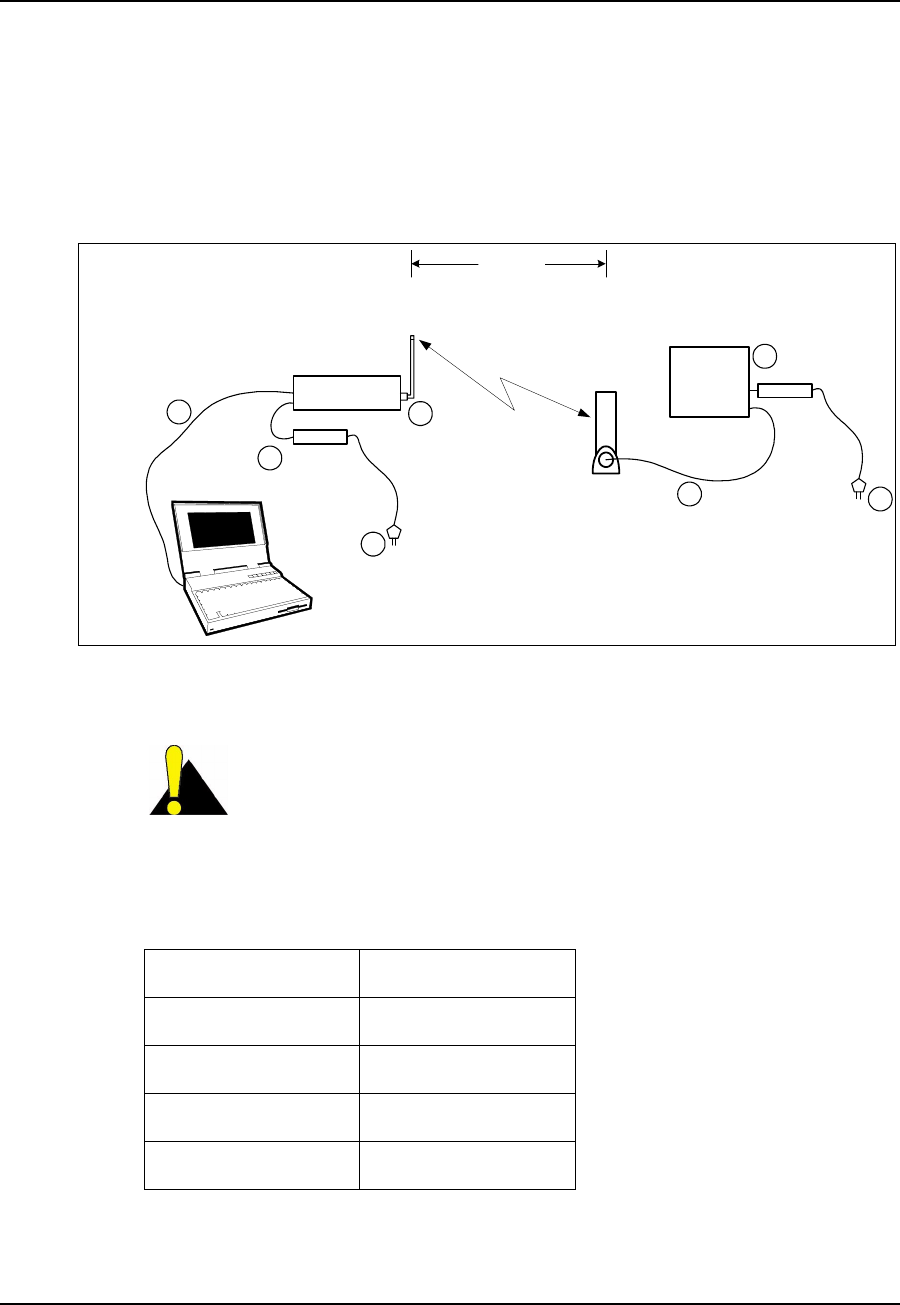

Figure 1 Quick Startup — CCU Configuration
CAUTION: Always make sure that you connect the antenna to
the CCU or EUM before you apply power to the unit.
2. Configure your PC terminal emulation software as shown in Table 1.
Table 1 Console Settings
Bits per second 9600
Data bits 8
Parity None
Stop bits 1
Flow Control None
CCU3000
RS232 cable
CCU set-up
antenna
CCU power
supply
EUM3000
EUM Antenna
EUM Power Supply
1
3-5metres
2
3
4
5
6
7
Radio
Link
