9 Installing the EUM
APCD-LM043-4.0 117

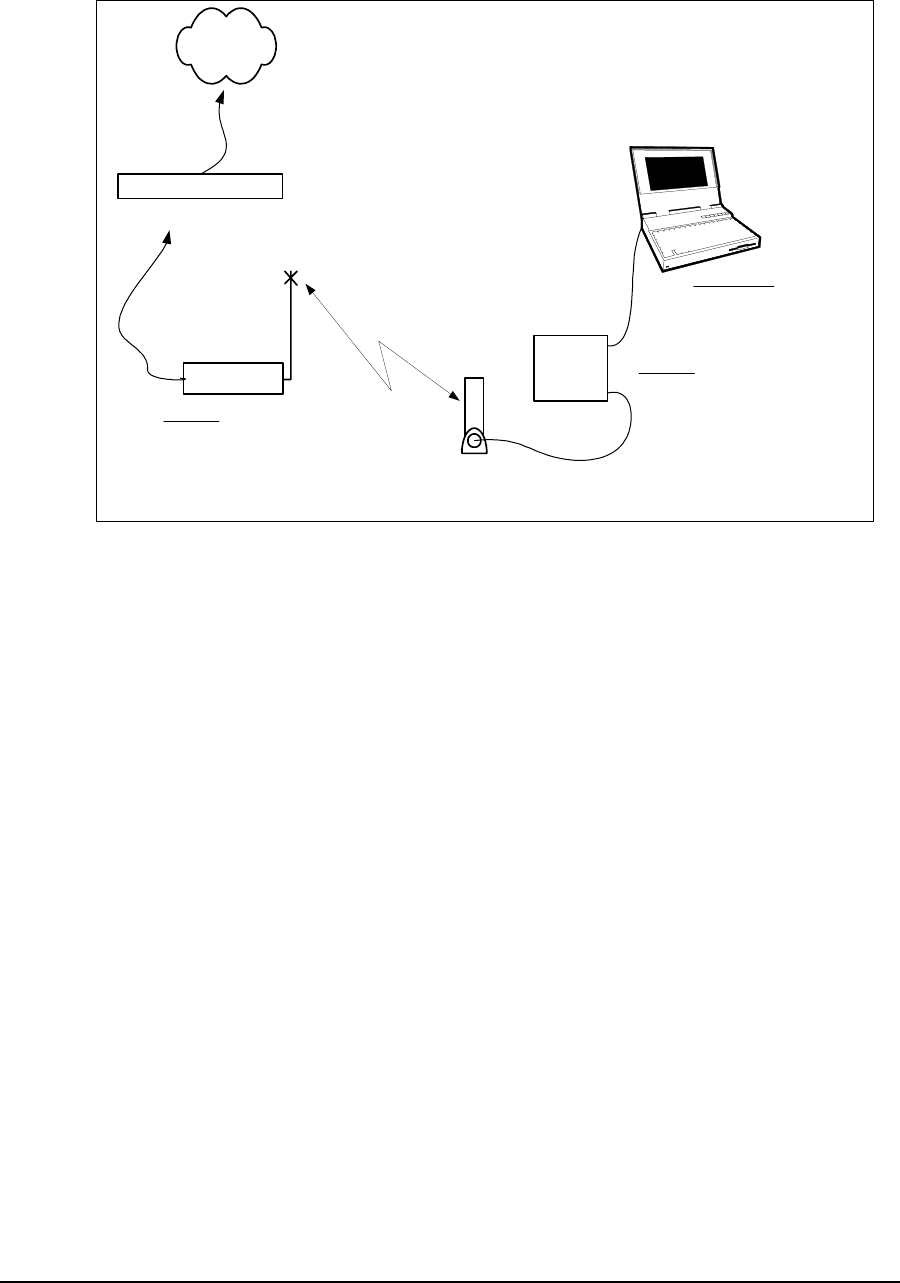

To illustrate data link testing between the PC and the EUM, consider the sample configuration
shown in Figure 47.
Figure 47 Sample Configuration — Testing the Data Link
Using the sample configuration shown in Figure 47, confirm the connection between the end-
user’s PC and the EUM as demonstrated below:
This is what successful ping from the end-user’s PC to the EUM looks like:
C:\>ping 10.5.4.117
Pinging 10.5.4.117 with 32 bytes of data:
Reply from 10.5.4.117: bytes=32 time<10ms TTL=64
Reply from 10.5.4.117: bytes=32 time<10ms TTL=64
Reply from 10.5.4.117: bytes=32 time<10ms TTL=64
Reply from 10.5.4.117: bytes=32 time<10ms TTL=64
Ping statistics for 10.5.4.117:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 0ms, Maximum = 0ms, Average = 0ms
C:\>
This is what an unsuccessful ping from the end-user’s PC to the EUM looks like:
C:\>ping 10.5.4.116
Pinging 10.5.4.116 with 32 bytes of data:
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Ethernet crossover
cable
EUM Antenna
Gateway Router
Internet
Radio
Link
End-user's Premises
End-user's PC
IP Address 10.5.6.117
Net Mask 16
Gateway IP 10.5.0.1
EUM3000
IP Address 10.5.4.117
Net Mask 16
Gateway IP 10.5.0.1
CCU3000
Radio IP Address 10.5.0.1
Net Mask 16
