9 Installing the EUM
114 APCD-LM043-4.0
WARNING!
The antennas for the EUM must be fix-mounted, indoors or
outdoors, to provide a separation distance of 20cm or more
from all persons, to satisfy RF exposure requirements. The
distance is measured from the front of the antenna to the
human body. WaveRider recommends installing the
antenna in a location where personnel are not able to bump
into it, obstruct the signal from the base station, or trip over
antenna cables.
3. Position the antenna in the bracket according to one of the configurations illustrated in
Figure 45. Click and lock the antenna in place. For maximum signal reception, ensure
the concave surface of the antenna points toward the WISP antenna and the trough of
the inset wave points towards the floor.

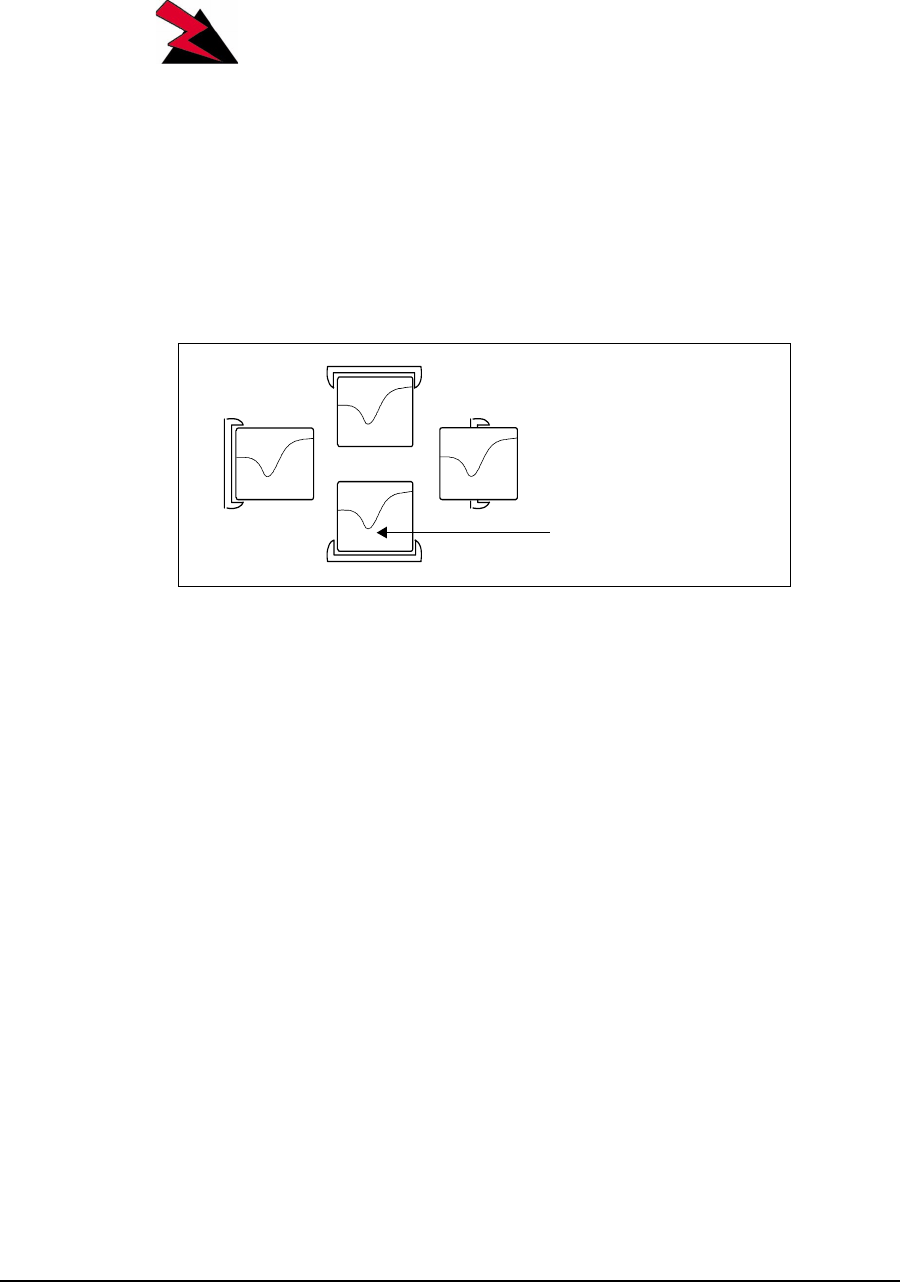

Figure 45 Mounting the Antenna in the Bracket
NOTE: The location, position, and orientation of the antenna affects the
robustness of the Internet connection. Pointing the antenna at
buildings or other obstacles often impedes communications, but
some surfaces may provide desirable signal bounce. For optimal
reception, try various positions before fix-mounting your antenna.
4. Once the antenna is permanently mounted, re-align it for best signal.
- Concave surface pointing
towards WISP antenna
- Trough of inset wave pointing
towards floor.
Inset wave
