9 Installing the EUM
APCD-LM043-4.0 113

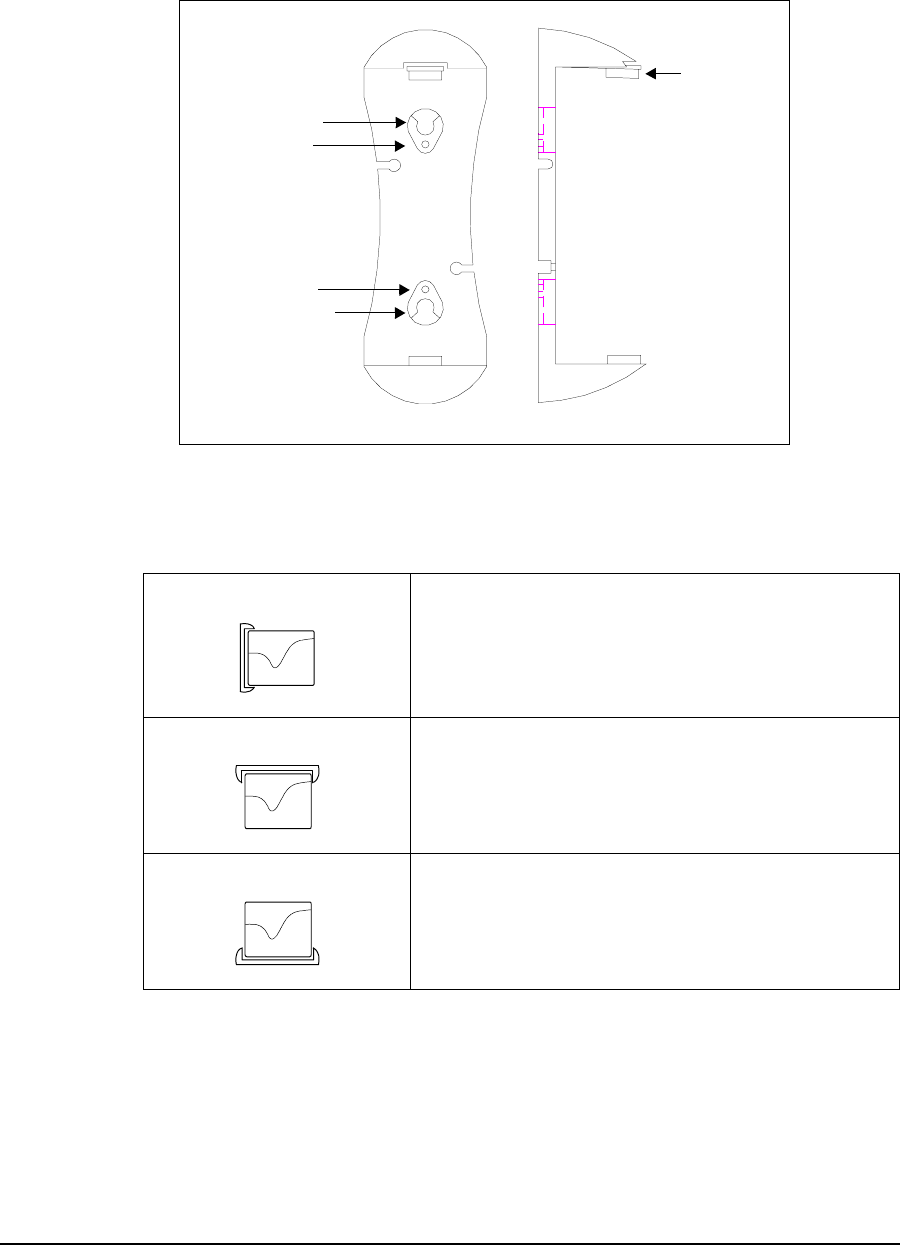

Figure 44 shows the location of the spring clip, suction cup holes, and screw holes on
the antenna bracket.
Figure 44 Antenna Bracket Components
Table 23 Surface Mounting Options for the Antenna
Side Mount
Mount the antenna on a wall, window, window frame,
or solid furniture with spring clip side closest to the
ceiling.
Top Mount
Hang the antenna from a ceiling or the shelf of a
bookcase.
Bottom Mount
Mount the antenna on solid furniture (a desk or shelf)
or on a window sill.
Spring Clip
Suction Cup Hole
Screw Hole
Suction Cup Hole
Screw Hole
