Turn on the power at fuse or circuit box.
8. Thread the fixture wire and fixture grounding wire through the top loop, long threaded pipe and mounting strap.
9. Pull out the source wires from the outlet box. Make wire connections using wire nuts as follows:
---Connect the smooth-coated wire (marked) from the fixture to the black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire from the power source.
---Attach the fixture grounding wire to the mounting strap with the green grounding screw. Then connect it to the house
grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
10. Attach the canopy to the mounting strap: insert the top loop through hole, then secure by tightening collar.
CAUTION: With silicone caulking compound, caulk completely around where back of canopy meets with the
ceiling surface to prevent water from seeping into the outlet box.
11. Attach the glass shade and frame onto the fixture, secure them with ball nuts.
12. Install bulb (not included). See relamping label at socket area or packaging for maximum allowed wattage.

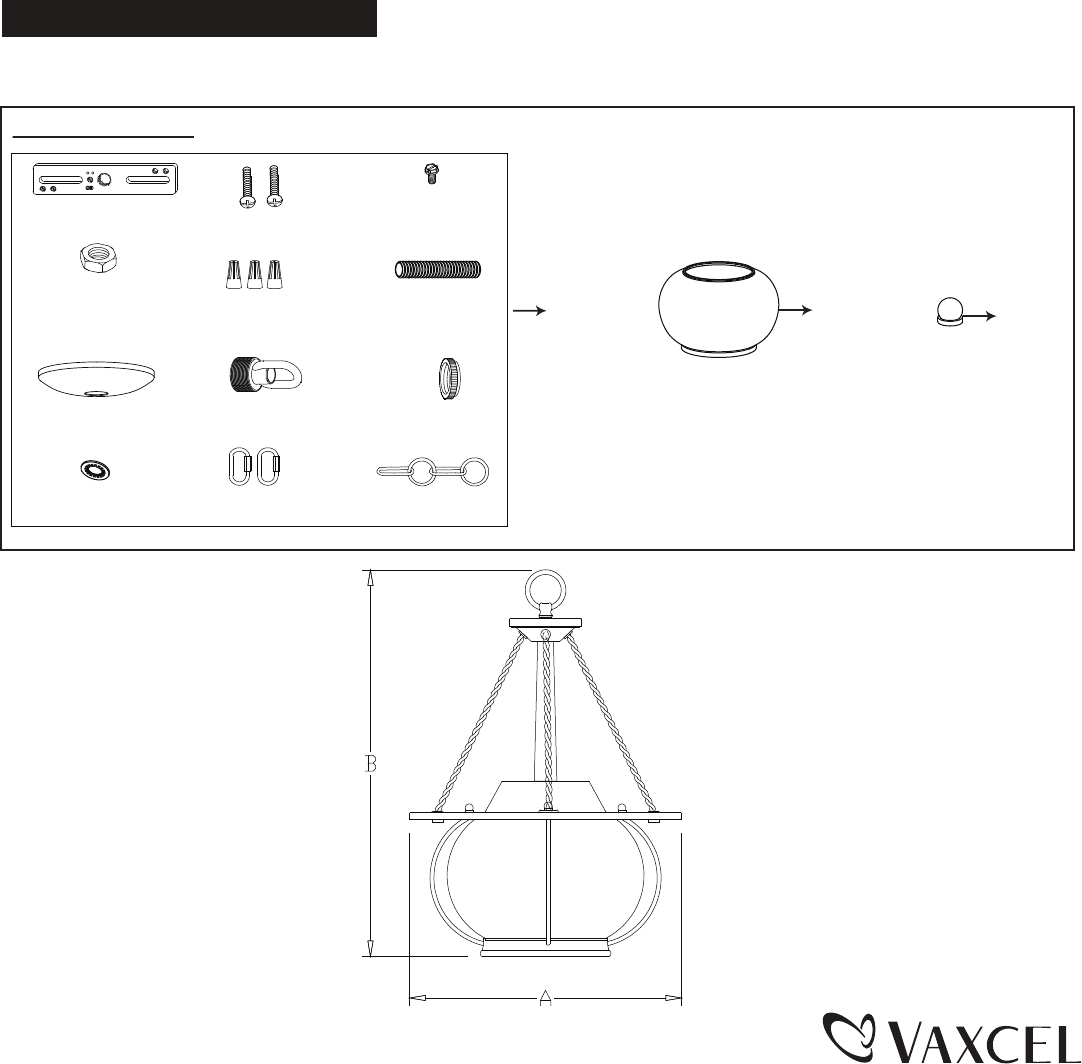

Mounting Strap (A)
Mounting Screw (B)
Green Grounding
Screw (C)
Hex Nut (D)
Wire Nut (E)
Canopy (G)
Top Loop (H)
Collar (I)
Threaded Pipe (F)
Washer (J)
Loop Lock (K)
Chain (L)
Spare Parts List:
Glass Shade
(9679CS)
(1 PC)
Ball Nut
(5229BB)
(4 PCS)
Assembly Kit
(5228MM)
(1 SET)
The following parts are available for re-order if damaged or missing.
A: 13-1/2"
B: 19-1/2"
