Installation Sheet

Tighten blades to blade holders by
using blade screws and washers.
PAGE: 3 / 5
Secure blade holders to the motor with
motor screws and washers.

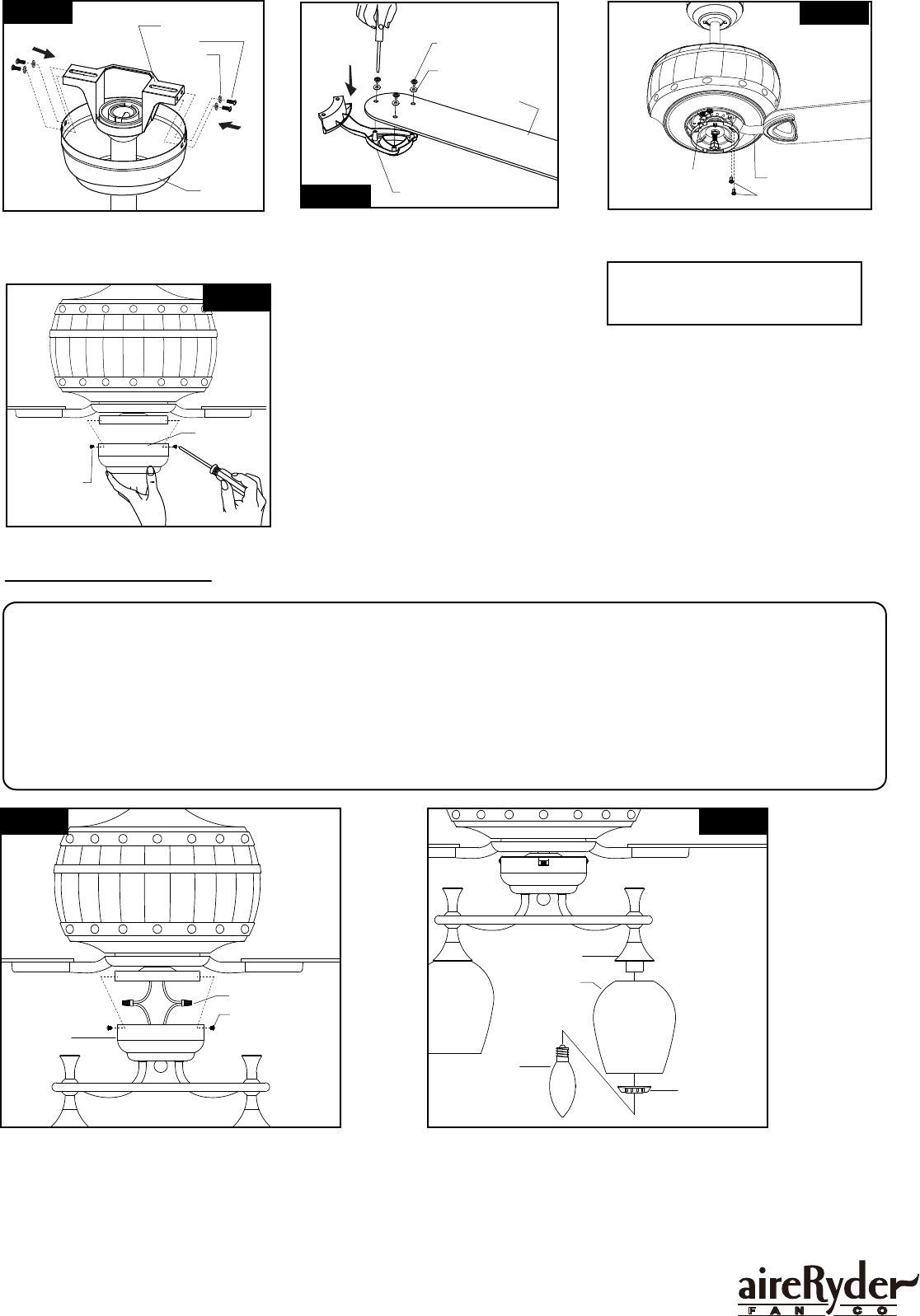

Fig.14
Blade Screw
Washer
Blade Holder
Blade
Plastic Insert
Fig.15
Motor Screw
Blade Holder
NOTE: Before installing blade
holders to the motor, please
remove the plastic inserts.
Fig.16
Fig.17 Fig.18
Assembly without fan light
Make sure the wires of the fan light in the switch box are capped with wire nuts.
Secure the switch box with the switch box screws.
Note: To install the fan light, skip this step and proceed to Fig. 17.
Attach the glass shades onto the glass holders, and then
secure them with socket rings .
Install bulbs (included). See relamping label at socket area
or packaging for maximum allowed wattage.
Bulb Type B
Max.60W
(included)
Make wire connections using wire nuts:
--- The blue wire from the switch box to
the black wire from fan light.
--- The white wire from the switch box
to the white wire from fan light.
Carefully put the wires into the switch box.
Secure the fan light onto the switch box
using the switch box screws.
Switch Box
Screw
Switch Box
Switch Box Screw
Wire Nut
Glass Shade
Socket Ring
Glass Holder
Fan Light
Fan Light Installation:
WARNING:
As per EPACT 2005 requirements, this fan light has a built-in current limiting device to conserve
energy. The fan light will not operate if the combined wattage of the installed bulbs exceeds 190
Watts. If the fan light shuts off shortly after being switched on, it may be due to excessive current
demand. Turn off power to the fan and replace the light bulbs with lower wattage bulbs.Turn on
power to the fan, using the pull chain, wall switch, or remote control (whichever is installed on the
particular fan).
