Installation Sheet

PAGE: 2 / 3
090218

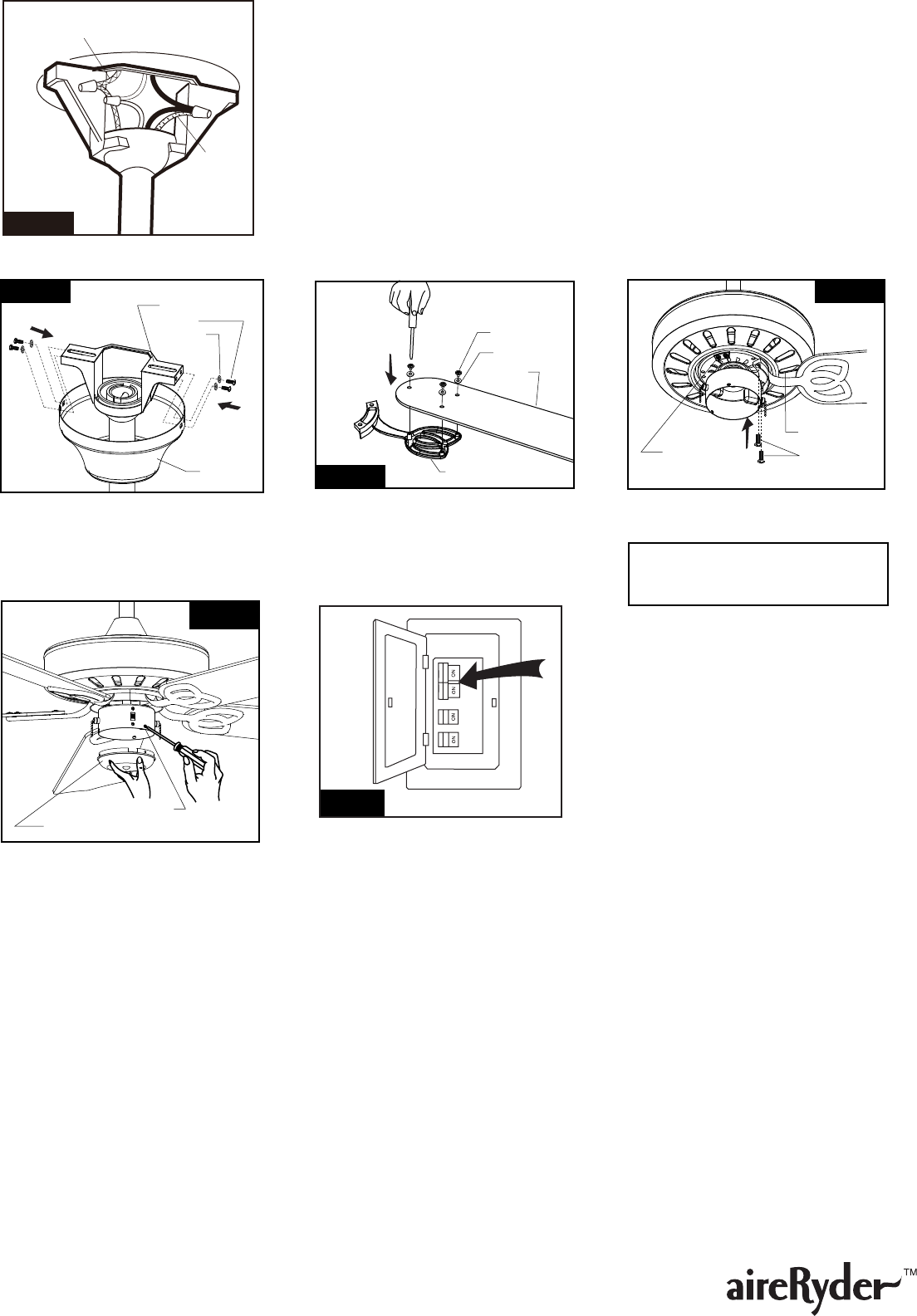

Fig.14
Turn ON the electric power at the
main fuse or circuit breaker box.
Fig.11
Attach the canopy to the hanger
bracket, and then secure it with
four screws and washers.
Attach blades to blade holders by
using blade screws and washers.
Blade
Blade Holder
Blue
Green (Ground)
Fig.9
Make wire connections:
1). The white motor wire to the white wire from the outlet box with a wire nut.
2). The black motor wire and blue wire to the black wire from the outlet box with
a wire nut.
3). The ground wire from the outlet box to the ground wire from the motor
with a wire nut.
*** After making the wire connections, the wires should be spread apart with the
grounded wires on one side of the outlet box and the ungrounded wires on the
other side of the outlet box.
*** After the connections have been made, the wires should be turned upward and
pushed carefully up into the outlet box.
Make sure the wires of the fan light
in the switch box are capped with
wire nuts. Secure the switch box
cover with the switch box screws.
Secure blade holders to the motor
with motor screws and washers.
NOTE: Before installing blade
holders to the motor, please
remove the plastic inserts.
Blade Screw
Washer
Screw
Hanger Bracket
Washer
Canopy
Fig.10
Fig.12
Motor Screw
Plastic Insert
Blade Holder
Fig.13
Switch Box Screw
Switch Box Cover
