INSTALLATION INSTRUCTIONS
IMPORTANT:
BEFORE YOU BEGIN INSTALLING THE FAN, CAREFULLY READ ALL INFORMATION ON THE SEPARATE
SHEET "SAFETY INSTRUCTIONS" AS WELL AS THE FOLLOWING "INSTALLATION INSTRUCTIONS". IF IN
DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
THIS FAN MUST BE INSTALLED WITH A WALL CONTROL/SWITCH.
SAVE ALL INSTRUCTIONS.
NOTE: The fan weight is 15.4 lb (7 kg). Be sure the outlet box you are using is securely attached to the building
structure and can support the full weight of the fan. Failure to do so can result in serious injury.

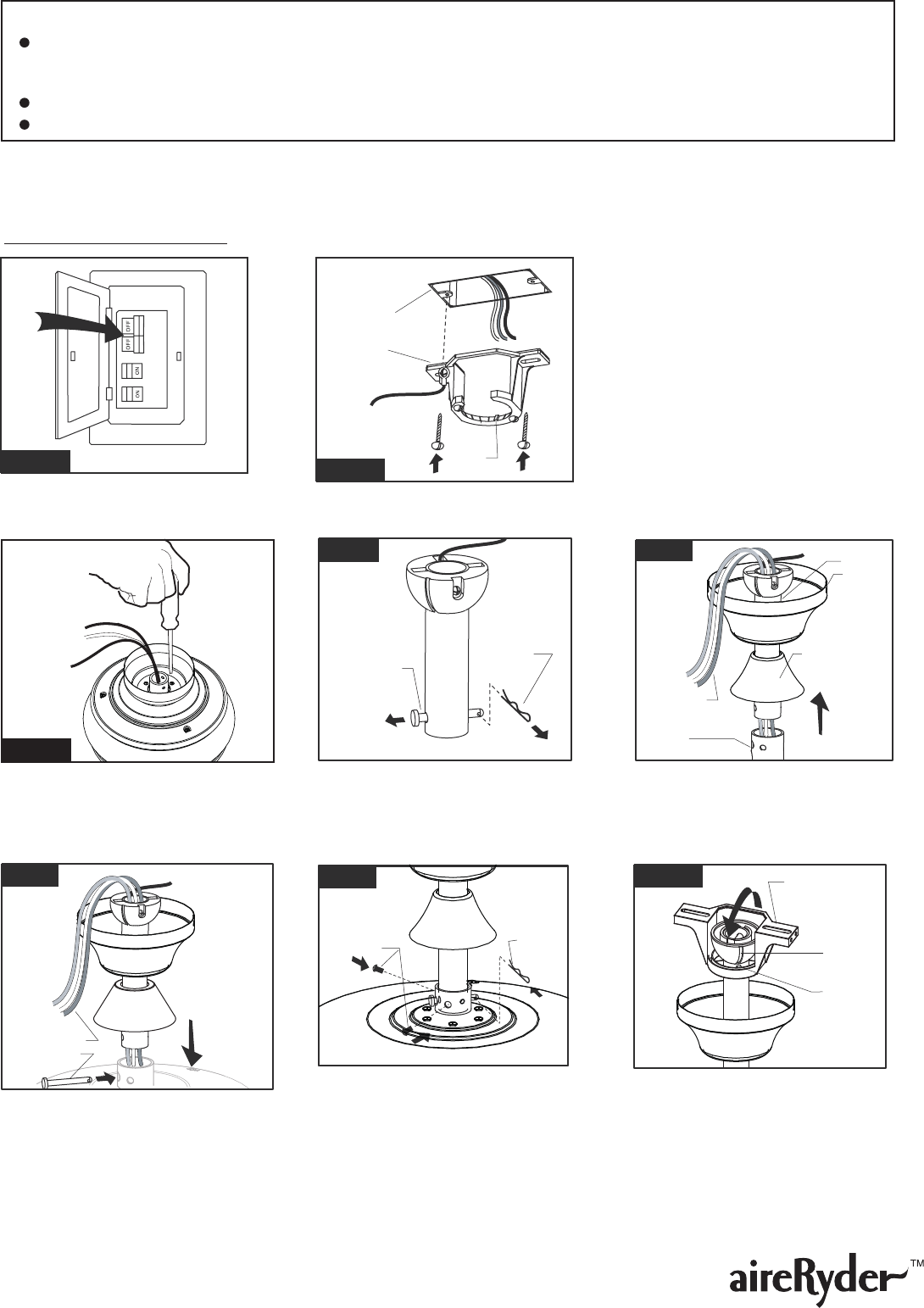

Attach the hanger bracket to the outlet
box with 2 mounting screws. (To reduce
the risk of fire, electric shock, or personal
injury, mount to an outlet box marked
"Acceptable for fan support" and use
mounting screws provided in assembly kit.)
Note: For slope ceiling installation, make
sure that the chip of the hanger bracket
is toward the floor.
(For downrod mount only):
Hang fan on hanger bracket, and
rotate the downrod until the chip on
the hanger bracket snaps into the slot
on the hanger ball.
Note: For slope ceiling installation,
make sure the slot of hanger ball and
the chip of hanger bracket are toward
the floor.
Fig.1
Outlet Box
Hanger
Bracket
Chip
Fig.2
Turn OFF the electric power at the
main fuse or circuit breaker box.
( For downrod mount only):
Remove the Lock Pin and take off
the Hanger Pin.
Fig.4
( For downrod mount only):
Insert the Downrod into the Collar.
Slide Hanger Pin through holes of
Collar and Downrod.
Fig.6
Fig.7
Lock Pin
Collar Screws
( For downrod mount only):
Insert and tighten the two Collar
Screws. Slide Lock Pin into Hanger
Pin until it locks into position.
Slot
Chip
Hanger Bracket
Fig.8
( For ceiling mount only):
Attach the canopy to the housing
with three ceiling mount screws.
Go to Fig.9 for the next step.
( For downrod mount only):
Slide canopy and downrod stand
cover onto downrod, as shown;
Then thread motor wires through
downrod.
Motor Wires
Collar
Downrod
Downrod Stand
Cover
Canopy
Fig.5
Hanger Pin
Motor Wires
