Installation Guide

191129

3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:

• Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.

• Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.

• Attach the fixture grounding wire (usually green insulation or bare wire) to the cross bar unit (A) with the

green grounding screw. Then, depending on local code connect it to the house grounding wire with the wire

connector (C).

Carefully put all of the wires back into the outlet box.

4. Attach the backplate of the fixture to the cross bar unit (A) by aligning and inserting the two headless screws from

the cross bar unit (A) into the open holes on the backplate, then place the two rubber pads (E) over the exposed

headless screws before screwing the two bolt nuts (D).

Note: With silicone caulking compound, caulk completely around where the backplate meets with the wall

surface to prevent water from seeping into the outlet box.

5. Install bulb (not included). See relamping label at socket area or packaging for maximum wattage allowed .

6. Attach the glass shade to the fixture, secure it with three set screws.

Turn on the power at fuse or circuit box.

The following parts are available for re-order if damaged or missing.

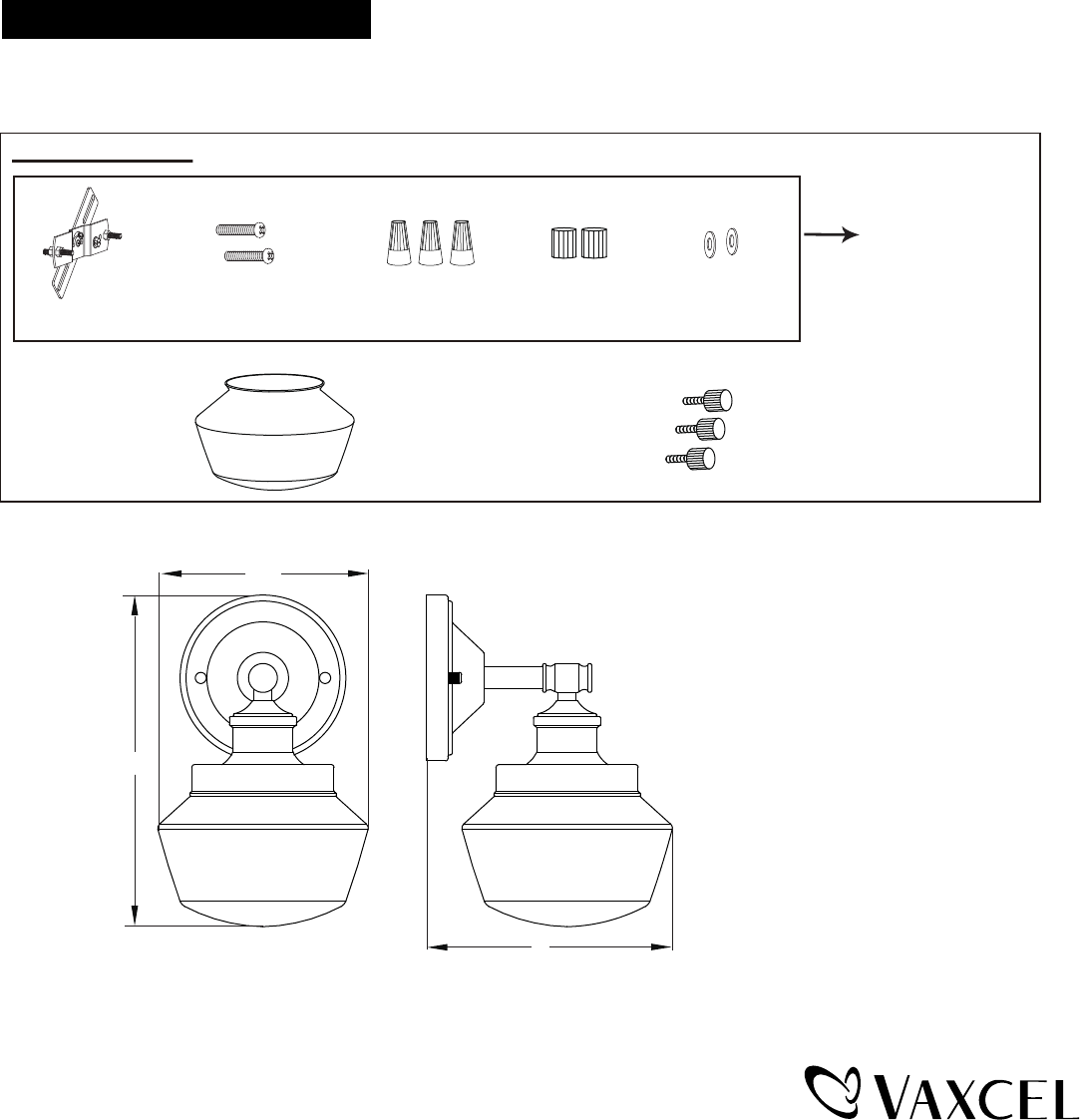

Spare Parts List:

Mounting Hardware

6195MM (1SET)

Mounting Screw (B) Wire Connector (C) Bolt Nut (D)

Rubber Pad (E)

Cross Bar Unit (A)

Glass Shade

10144CS

A: 9-1/2”

B: 6”

C: 7”

Set Screw

6198SER
