Installation Guide

191129

Maximum Wattage: 60W Incandescent Bulb or 20W LED

dimmable bulb.

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

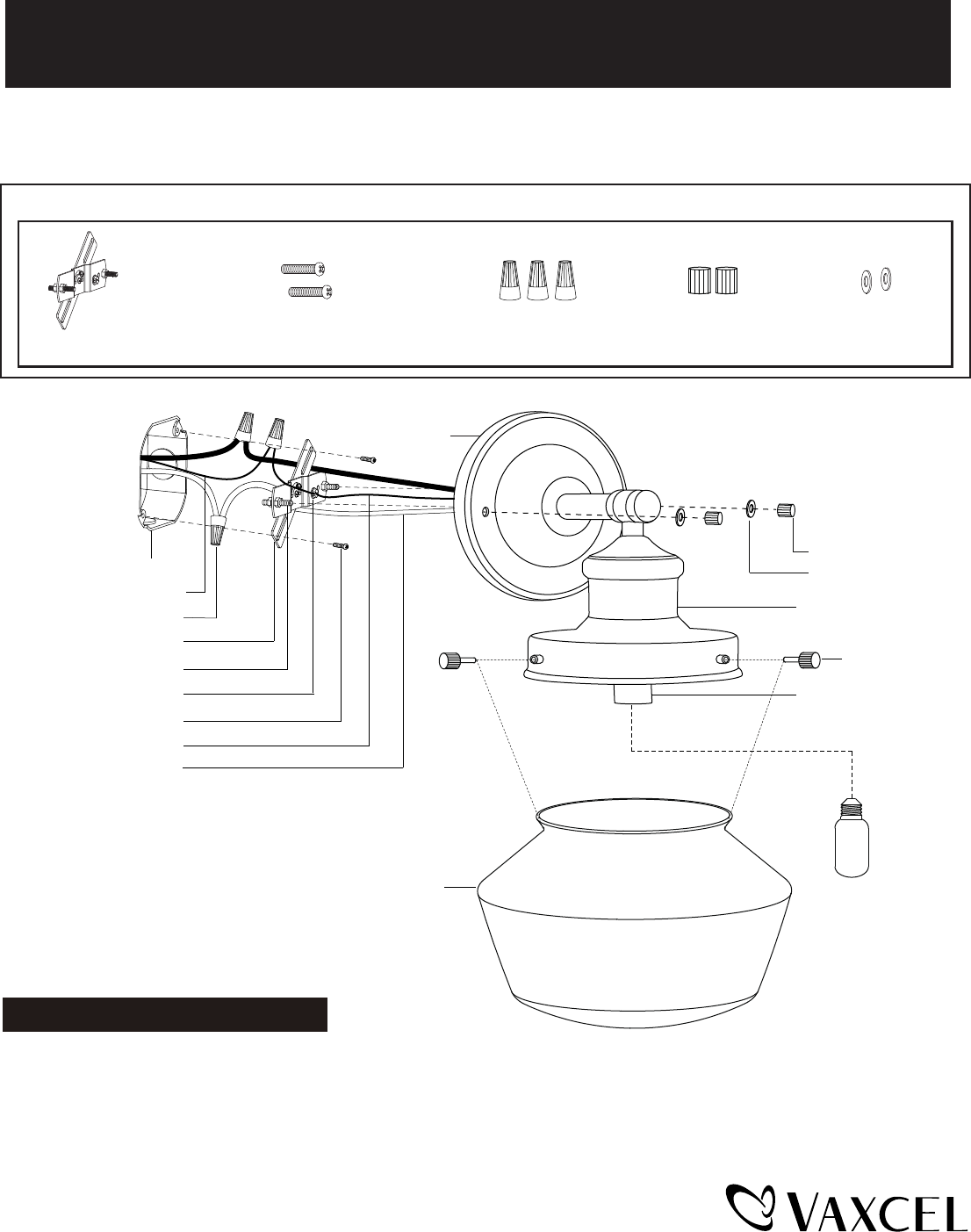

Hardware Package (included):

Mounting Screw (B) Wire Connector (C) Bolt Nut (D)

Rubber Pad (E)

Cross Bar Unit (A)

T0573

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

Installation steps

1. Remove the two bolt nuts (D), the two rubber pads (E) and the cross bar unit (A) from the backplate.

2. Attach the cross bar unit (A) to the outlet box using two mounting screws (B). Adjust the length of the preinstalled

headless screws if necessary.

Note: Make sure that the headless screws are lined up horizontally to make the fixture level.

Turn off the power at fuse or circuit box.

Max.60W Type T12

4” Bulb (not included)

Socket

Fixture

Set Screw x 3

Glass Shade

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ

AND SAVE THESE INSTRUCTIONS.

Wire Connector (C)

Outlet Box

Mounting Screw (B)

Headless Screw

Green Grounding Screw

Cross Bar Unit (A)

Fixture Wire

Fixture Grounding Wire

Backplate

Bolt Nut (D)

Rubber Pad (E)

House Grounding Wire

PAGE 1
T0573 ASSEMBLY AND INSTALLATION INSTRUCTIONS W WARNING: Turn off the main power at circuit breaker before installing fixture. AVERTISSEMENT: Coupez la source d’alimentation principale au panneau central de disjoncteurs avant d’installer le luminaire. NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements. 2. READ AND SAVE THESE INSTRUCTIONS.
PAGE 2
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows: • Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source. • Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source. • Attach the fixture grounding wire (usually green insulation or bare wire) to the cross bar unit (A) with the green grounding screw.
