Installation Guide

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

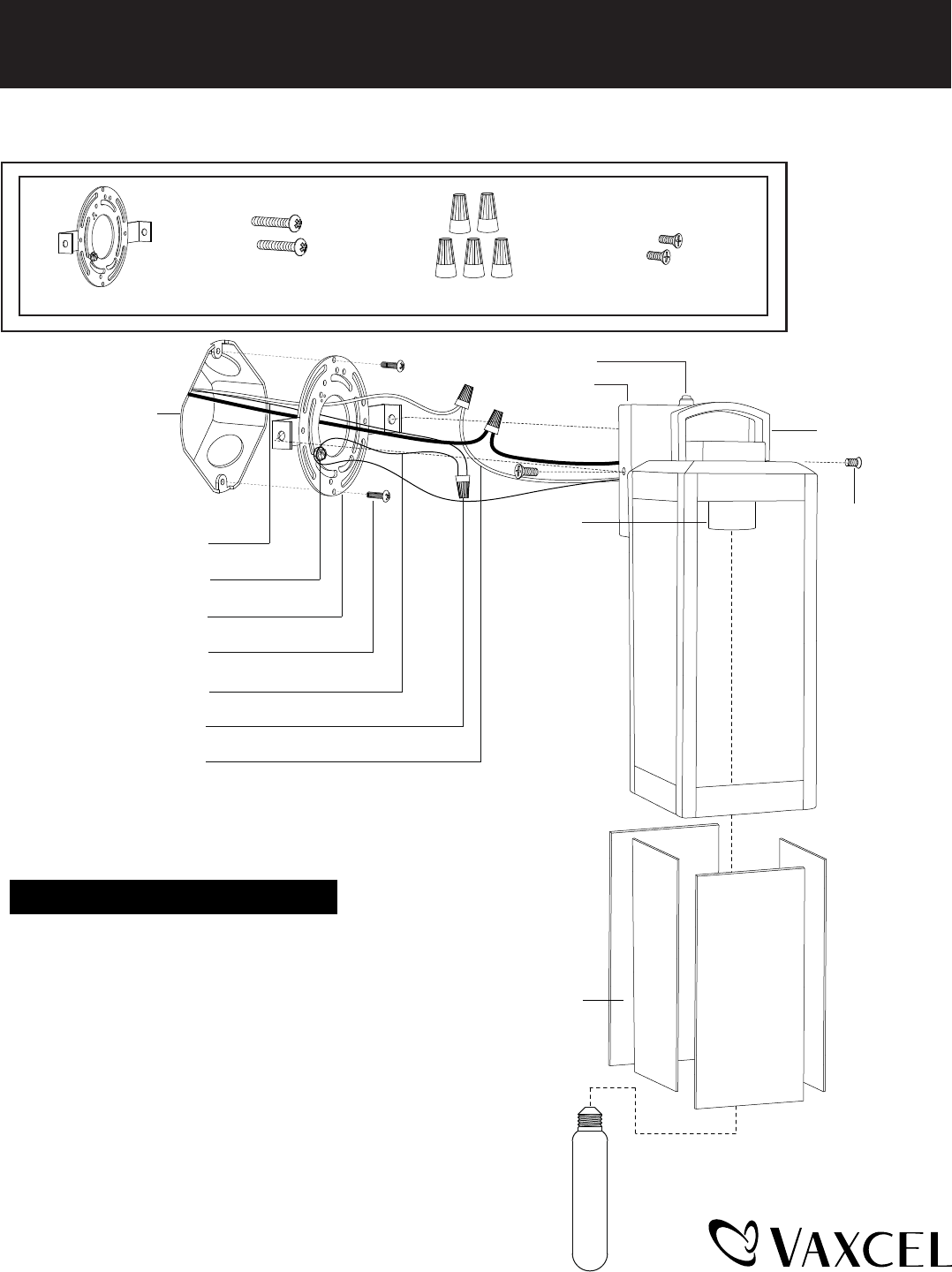

T0566 / T0567

Fixture

Glass Panel

Photocell

Backplate

Fixture Grounding Wire

Wire Connector (C)

Mounting Plate Unit (A)

House Grounding Wire

Outlet Box

Fixture Wire

Set Screw (D)

Socket

Mounting Screw (B)

Green Grounding Screw

Max.60W Type T10 Bulb

(not included)

WARNING: Turn off the main power at circuit breaker before installing fixture.

AVERTISSEMENT: Coupez la source d’alimentation principale au panneau

central de disjoncteurs avant d’installer le luminaire.

Set screw (D) Mounting Screw (B) Wire Connector (C)Mounting Plate Unit (A)

191206

Turn off the power at fuse or circuit box

Installation Steps

1. Remove the two set screws (D), the mounting

plate unit (A) from the backplate.

2. Attach the mounting plate unit (A) to the outlet

box by using two mounting screws (B).

PAGE 1
ASSEMBLY AND INSTALLATION INSTRUCTIONS T0566 / T0567 WARNING: Turn off the main power at circuit breaker before installing fixture. AVERTISSEMENT: Coupez la source d’alimentation principale au panneau central de disjoncteurs avant d’installer le luminaire. NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements. 2. READ AND SAVE THESE INSTRUCTIONS.
PAGE 2
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows: • Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source. • Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
PAGE 3
The following parts are available for re-order if damaged or missing.
