ASSEMBLY AND INSTALLATION

INSTRUCTIONS

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

161120

Metal Pad (B) Allen (C)

Lock Nut (A)

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

L0001 / L0002 / L0003 / L0004

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (inculded):

Turn off the power at fuse or circuit

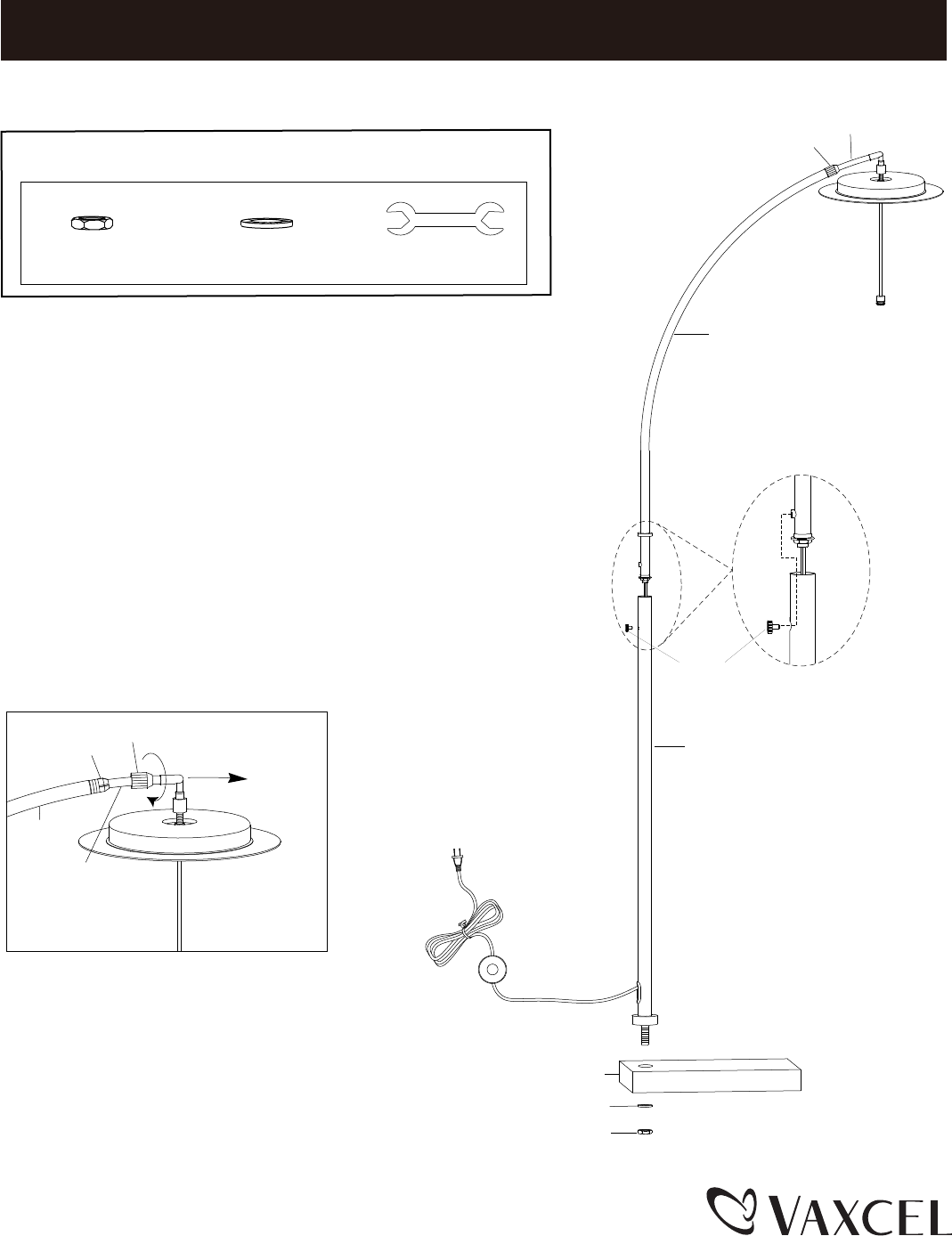

Installation Steps (K0022/K0023)

1. Attach the column into the hole of base and tighten it with metal pad

and lock nut.

2. Pull the fixture wires and insert the arm into the hole of column and

tighten it with set screw.

Make sure the screw hole of column aligns with threaded hole

of arm and arm in the middle of the base.

Warning: LED electronics can be damaged by electro

static discharge (ESD)shock. Before installation,

discharge yourself by touching a grounded bare metal

surface to remove this hazard. To avoid damage, do

not touch the LED module.

3. Unscrew the lock screw from the arm to slide

the inner arm out from the arm. (Fig.1)

Note: Hold the inner arm up for suceeding in

unscrewing lock screw and to prevent

it from scuffing.

Set Screw

Arm

Inner Arm

Screw

Column

Lock Nut (A)

Metal Pad (B)

Base

Adjusting the length of the inner arm (Fig.1,2,3)

Arm

Plastic Clip

Inner Arm

Lock Screw

Fig.1

Summary of content (3 pages)

PAGE 1
ASSEMBLY AND INSTALLATION INSTRUCTIONS AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF L0001 / L0002 / L0003 / TO L0004 WARNING: POWER BEFORE INSTALLING ORSHOCK, SERVICING THIS TO FIXTURE. TO AVOID RISK OF ELECTRICAL BE SURE SHUT OFF POWER WHILE INSTALLING OR SERVICING THIS FIXTURE. NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements. 2. READ AND SAVE THESE INSTRUCTIONS.
PAGE 2
Fig.2 Plastic Clip Protected Flim Inner Arm Arm 5. Insert the inner arm into the arm and slide the plastic clip back into the arm to prevent the inner arm from scuffing. Place the inner arm to the desired location and tighten lock screw back to arm. (Fig.3) Note: Hold the inner arm up for suceeding in screwing lock screw and to prevent it from scuffing. Note: Restore the plastic clip as sooner to prevent inner arm from scuffing. Fig.3 Plastic Clip Lock Screw 4.
PAGE 3
Function and Operation ON-OFF LOCK-UNLOCK DIMMING 1x 2x DIMMING LIGHTS Hold hand under 4 inches of sensor to adjust brightness. NOTE: Dimming ranges from 100% to 5% brightness. TURNING LIGHTS ON, OFF Wave hand under 4 inches of sensor once to turn light on or off. LOCK / UNLOCK LIGHT Wave hand under 4 inches of sensor within 0. 5 seconds twice to lock or unlock sensor. The following parts are available for re-order if damaged or missing.
