VAXserver 4000-200 Conversion

4.4 Installing the Kit

10. Reconnect the CPU module cables.

11. Reinstall the CPU I/O panel over slot 1.

12. Reconnect the CPU I/O panel cables.

13. Install the new CPU label to the CPU I/O panel as shown in Figure 4–3.

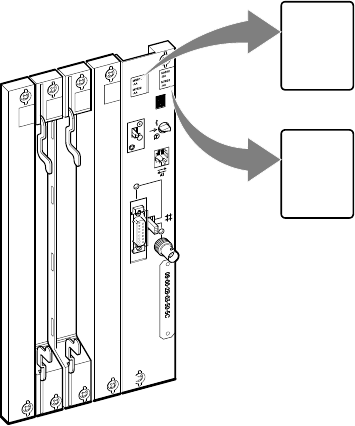

Figure 4–3 Attaching CPU Labels

MLO-003907

MS650

KA660

M7626

LJ-00539-TI0

BA/BB

M7622

BA/BB

AA/BA

14. Turn on the system power and run system diagnostics to verify system

operation.

15. Close the system door (BA430) or reinstall the front panel (BA215).
