VAXserver 4000-200 Conversion
4.4 Installing the Kit
6. Release the CPU I/O panel as shown in Figure 4–2. Disconnect the cable
that connects the CPU to the I/O panel, and set the panel aside.

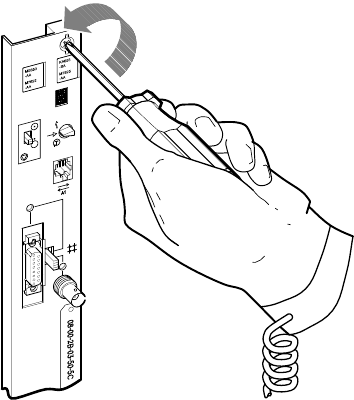

Figure 4–2 Removing CPU I/O Panel
LJ-00538-TI0
Attach Antistatic
Wrist Strap to
System Chassis
To Release: Push In and Turn
Counterclockwise 1/4-Turn
To Fasten: Push In and Turn
Clockwise 1/4-Turn
7. Disconnect the CPU module cables.
8. Remove the old CPU module from slot 1.
9. Install the new KA660-AA CPU module in slot 1.
