3.4 Installing the Kit

19. Reconnect the cables to the CPU I/O panel.

20. Attach the new CPU module and memory module labels to the CPU I/O

panel as shown in Figure 3–4.

21. Attach the new memory module labels to the memory module covers.

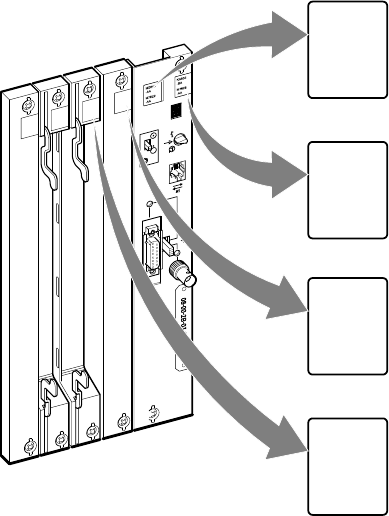

Figure 3–4 CPU and Memory Label Locations

MLO-003907

MS650

KA660

M7626

Option

LJ-00487-TI0

BA/BB

M7622

BA/BB

AA/BA

MS650

BA/BB

M7622

BA/BB

22. Close the system cabinet door.

23. Turn on the system and run system diagnostics to verify system operation.
