VAXserver/MicroVAX 3600/3900 Conversion
3.4 Installing the Kit
3.4 Installing the Kit
To install the conversion kit:
1. Turn the cabinet door key switch to the bottom position, lower the access
door, and turn the power switch on the CPU box to off (0).
2. Turn off the system power to any expander boxes connected to the system.
3. Open the system cabinet door as shown in Figure 3–1.

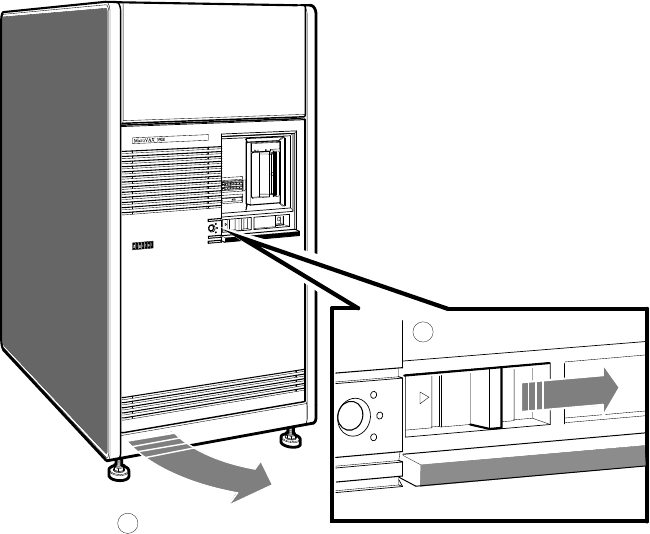

Figure 3–1 Opening Cabinet Door
MLO-003746
1
Push Latch Right
2
Swing Door Open
3–4 VAXserver/MicroVAX 3600/3900 Conversion
