VAXserver/MicroVAX 3300/3400 Conversion
1.4 Installing the Kit
6. Release the CPU I/O panel as shown in Figure 1–3. Disconnect the cable
that connects the CPU module to the I/O panel, and set the panel aside.

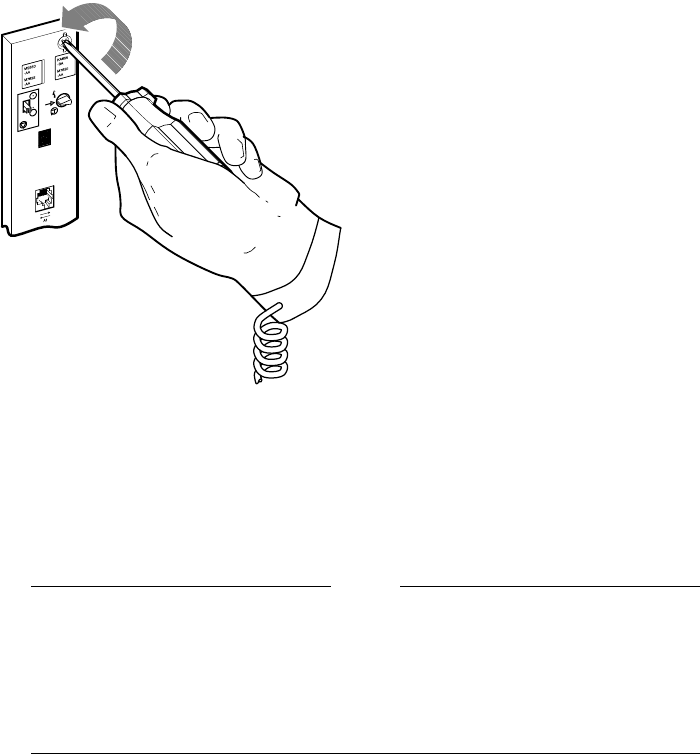

Figure 1–3 Removing CPU I/O Panel
MLO-002615
Attach Antistatic
Wrist Strap to
System Chassis
To Release: Push In and Turn
Counterclockwise 1/4-Turn
To Fasten: Push In and Turn
Clockwise 1/4-Turn
7. Disconnect the CPU module cables.
8. Remove the old CPU module from slot 1.
9. Install the new KA660-AA/BA CPU module in slot 1.
Note
If there are any MS650-AA memory modules installed in the system,
then remove the modules from the system and install either MS650-BA
or MS650-BB memory modules.
A 3-connector memory cable is included in the memory kit for a
2-memory module connection.
1–6 VAXserver/MicroVAX 3300/3400 Conversion
