A-1
Appendix A
Specifications
Overview
Introduction This appendix describes the physical and electrical specifications for the Vanguard
3400 Series.
Dimensions Figure A-1 shows the exterior dimensions of the Vanguard 3400 Series.

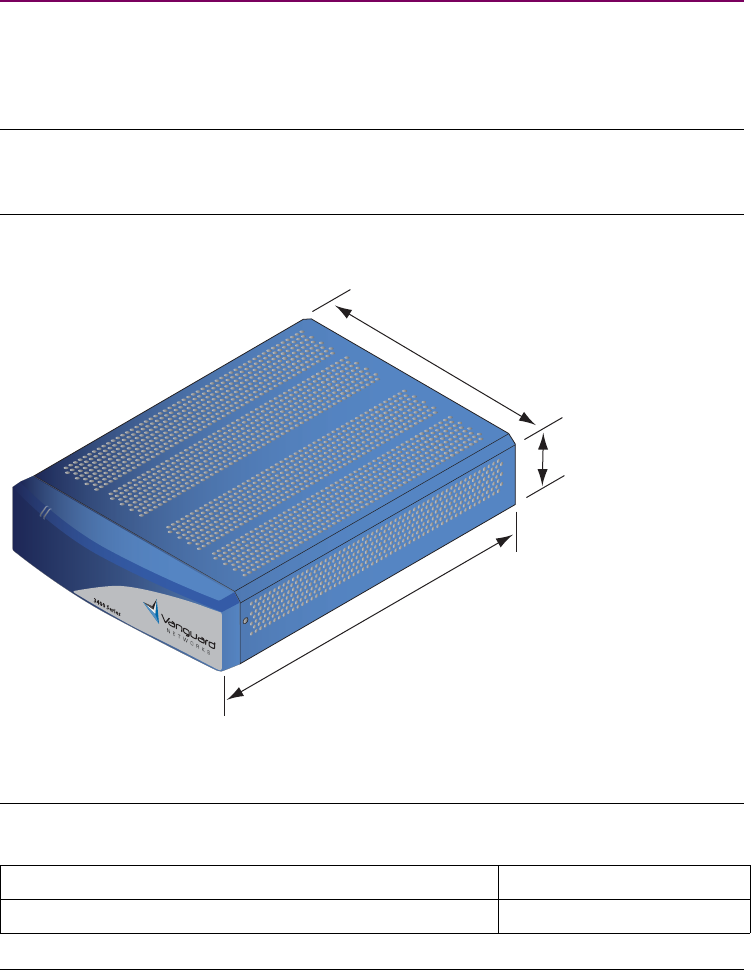

Figure A-1. Vanguard 3400 Series Exterior Dimensions
Weight The Vanguard 3400 Series/ weights are listed below:
Environment Operating temperature: 32° to 98° F (0° to 40° C)
Storage temperature: -40° to 158° F (-40° to 70° C)
Relative humidity: 5% to 90% (non-condensing)
Length: 11.6 in.
(29.5 cm)
Width: 8.4 in.
(21.3 cm)
Height: 2.6 in.
(6.6 cm)
Vanguard Weight
3400 Series with one daughtercard installed. 8 lbs
