3-18 Installation and Replacement
Modifying Your Vanguard 3400 Series

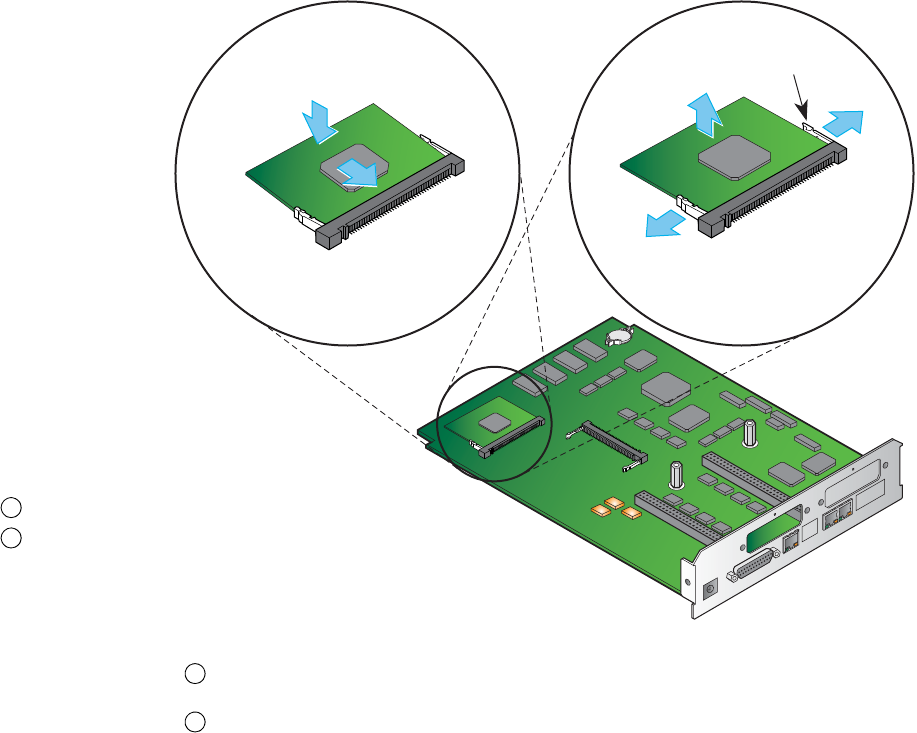

Figure 3-10. Encryption PCI Mezzanine Card Installation/Replacement
Inserting Encryption
PCI Mezzanine Card
Removing Encryption
PCI Mezzanine Card
Release Lever
Adding Encryption PCI Mezzanine Card
Insert the module into the connector at an angle as shown.
Push down on the module so that it is parallel to the motherboard
and the release levers lock it into place.
1
2
Removing Encryption PCI Mezzanine Card
Pull outward on the release levers at the side of the card, to allow the module to be removed
from the connector.
Raise the leading edge of module so that it is at an angle to the motherboard and remove it
from the connector.
1
2
