3-10 Installation and Replacement
Installing The Vanguard 3400 Series

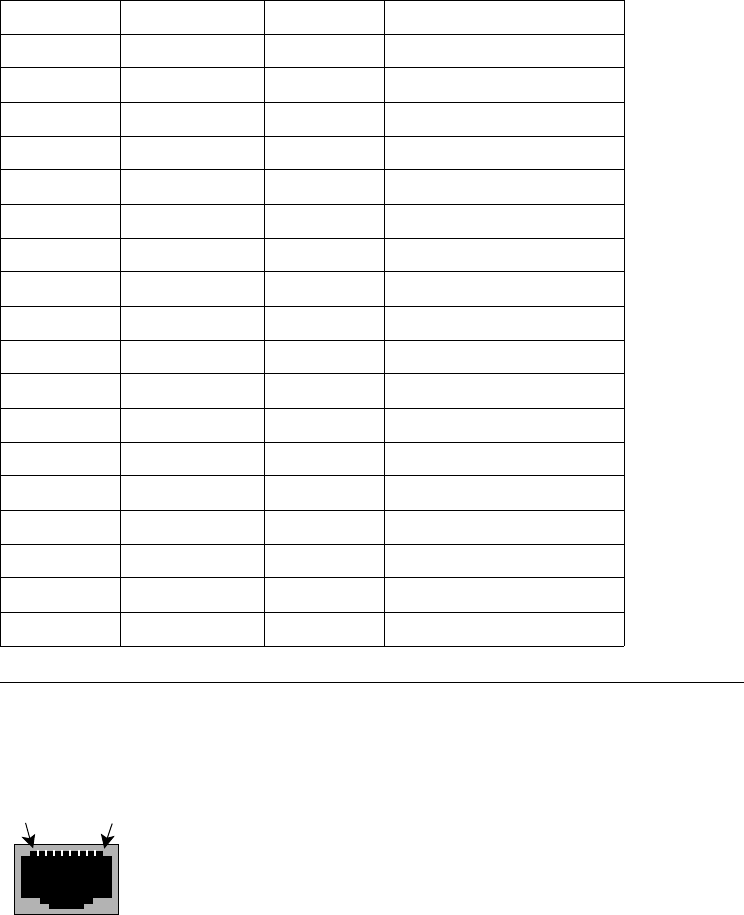

This table describes the DB25 connector pinouts for port 1:
Port 4 This port has an RJ-45 connector. Use Port 4 as the CTP for Use Port 4 as the CTP
for communicating with, configuring, monitoring, and for coldloading the node.
Figure 3-5 shows the pin numbers for port 4.
Figure 3-5. Port 4 Pin Numbers
DB25 V.24 Pinouts (DCE)
Pin ITU Circuit I/O Signal Name
1 --- ----- Protective Ground
2 103 INPUT Transmitted data
3 104 OUTPUT Received data
4 105 INPUT Request To Send
5 106 OUTPUT Clear To Send
6 107 OUTPUT Data Set Ready
7 102 ----- Signal Ground
8 109 OUTPUT Data Carrier Detect
14 --- INPUT Data Restraint Out
15 114 OUTPUT Transmitted Clock
16 --- ----- N/C
17 115 OUTPUT Received Clock
18 --- INPUT External Rx Clock
20 108/2 INPUT Data Terminal Ready
21 --- ----- N/C
22 125 OUTPUT Ring Indicator
24 113 INPUT External Tx Clock
25 142 INPUT Make Busy
Pin 8
Pin 1
