Installation and Replacement 3-9
Installing The Vanguard 3400 Series
Cable Adapters and Special Cables
To emulate a high speed DTE interface V.11/X.21, V.35, or V.36 on any 3460 Series
Universal Serial Port requires the use of a Cable Adapter (
Figure 3-4) and special
cables.

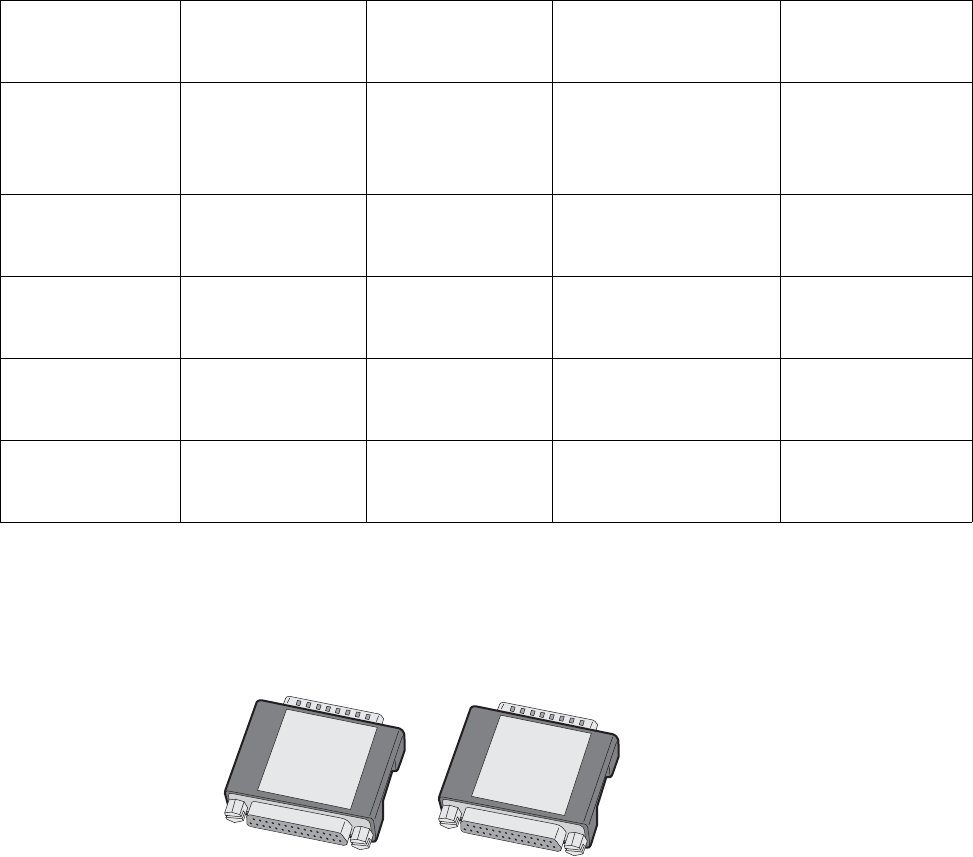

Figure 3-4. Cable Adapters
V. 2 4 / R S 2 3 2 D T E 62026-01 DB50M-
two DB25Fs
N/A 80110
3' DB25M-DB25M
or 80109
15' DB25M-DB25M
N/A
V.35 or V.36 DCE 62026-01
DB50M-two
DB25Fs
1152-10021
DB25M-DB25F
N/A 92104
7' DB25M-M34F
V.35 or V.36 DTE 62026-01
DB50M-two
DB25Fs
1152-10021
DB25M-DB25F
51177
1' DB25M-DB25F
91917
7' DB25M-M34M
V. 11 / X . 2 1 D C E 62026-01
DB50M-two
DB25Fs
1152-10022
DB25M-DB25F
N/A 92089
7' DB25M-DB15F
V. 11 / X . 2 1 D T E 62026-01
DB50M-two
DB25Fs
1152-10022
DB25M-DB25F
51176
1' DB25M-DB25F
91918
7' DB25M-DB15M
3460 Motherboard Port 1 and 2-Port Serial Data Card Interface
(continued)
Cabling
Interface Type
Y-Cable
(one per
2-PSDC)
Cable Adapter
(one per port)
DCE-DTE crossover
Cable (one per port)
Adapter Cable
(one per port)
1152-10021
REV. 1
V.35
V.36
1152-10022
REV. 1
V.11
X.21
