APRIL 2000

P/N: 432-00127

READ INSTRUCTIONS CAREFULLY BEFORE INSTALLING NEW ELEMENT.

DO NOT REPLACE ANY ITEM ON FILTER WHILE IT IS UNDER PRESSURE.

DO NOT OPERATE IF THERE IS A LEAK IN FILTER. TAKE FILTER OUT OF SERVICE IMMEDIATELY.

DO NOT OPERATE ABOVE MAXIMUM WORKING PRESSURE (MWP) AT MAXIMUM OPERATING TEMPERATURE (°F).

•

WARNINGS

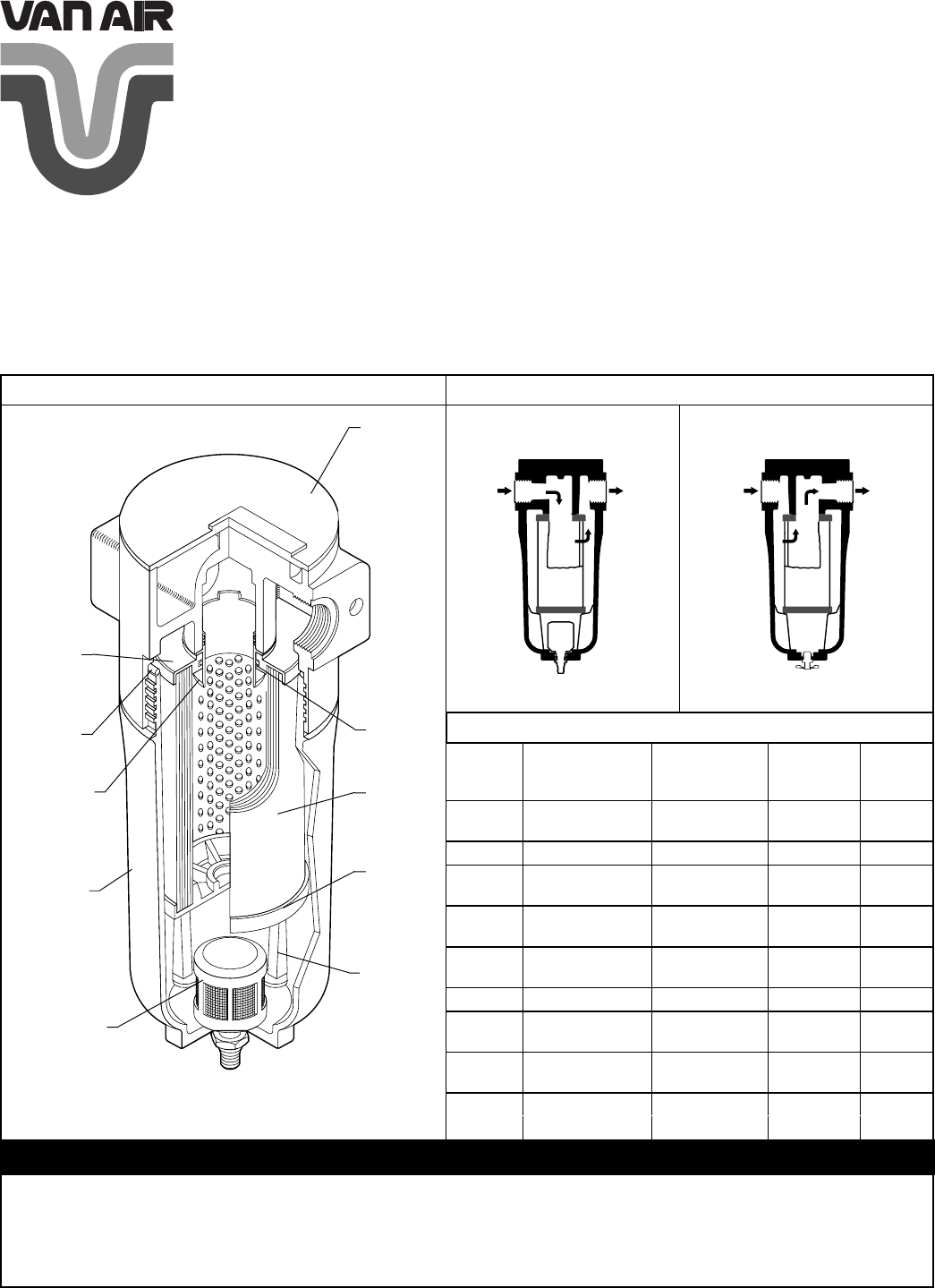

FILTER

BOWL

ELEMENT

ADAPTER

HOUSING

O-RING

ELEMENT

TOP

ENDCAP

ADM-2-2

ELEMENT

O-RING

ELEMENT

BOTTOM

ENDCAP

ELEMENT

SUPPORT

FILTER

HEAD

FILTER DETAILS

FILTRATION GRADES

ELEMENT

GRADE PURPOSE

NOMINAL

PARTICULATE

REMOVAL

ELEMENT

FLOW

DIRECTION

ENDCAP

COLOR

CODE

AA Extra Coarse

Coalescing

25.00µ IN/OUT BLACK

A Coarse Coalescing 5.00µ IN/OUT GREEN

B General Purpose

Coalescing

1.00µ IN/OUT RED

C High Efficiency

Coalescing

0.01µ IN/OUT BLUE

RAA Extra Coarse

Particulate

25.00µ OUT/IN BLACK

RA Coarse Particulate 5.00µ OUT/IN GREEN

RB General Purpose

Particulate

1.00µ OUT/IN RED

RC High Efficiency

Particulate

0.01µ OUT/IN BLUE

RD Vapor Absorbing 0.01µ OUT/IN BLACK

FLOW DIRECTION THROUGH ELEMENT

IN/OUT

(COALESCING)

OUT/IN

(PARTICULATE)

INLET

OUTLET INLET

OUTLET

INSTALLATION INSTRUCTIONS

E200 & E100 SERIES FILTER

ELEMENTS

(FOR F200 & F100 SERIES FILTERS- ALL GRADES)

PRODUCT PURPOSE & FUNCTION:

Van Air's E200 & E100 series filter elements provide long service life as well as ease of maintenance. With push on style

elements, there are no tie rods, gaskets, nuts and bolts. Both the particulate and coalescing elements will operate efficiently for

extended periods of time until a pressure drop of 10 PSID has occurred. Our differential pressure indicators and gauges can visually

alert when element changeout is needed. The activated carbon elements (RD grade) must be changed to suit specific applications,

or at least every 6 months.

Summary of content (4 pages)

PAGE 1
APRIL 2000 P/N: 432-00127 INSTALLATION INSTRUCTIONS ® E200 & E100 SERIES FILTER ELEMENTS (FOR F200 & F100 SERIES FILTERS- ALL GRADES) PRODUCT PURPOSE & FUNCTION: Van Air's E200 & E100 series filter elements provide long service life as well as ease of maintenance. With push on style elements, there are no tie rods, gaskets, nuts and bolts. Both the particulate and coalescing elements will operate efficiently for extended periods of time until a pressure drop of 10 PSID has occurred.
PAGE 2
ELEMENT REPLACEMENT NING IMPORTANT TO REDUCE ENERGY CONSUMPTION FROM EXCESSIVE PRESSURE DROP AND MINIMIZE CHANCE OF CONTAMINANT CARRYOVER, INSTALL NEW ELEMENT WHEN PRESSURE DROP REACHES 10 PSID (EXCEPT GRADE RD). INSTALL NEW RD ELEMENTS WHEN HYDROCARBON VAPORS ARE FIRST DETECTED DOWNSTREAM OR AT LEAST EVERY 6 MONTHS. 1. Close inlet and outlet shutoff valves (and open bypass valve if provided), or lock out all compressed air supply to filter housing. 2.
PAGE 3
E200 REPLACEMENT ELEMENTS FILTER MODEL ELEMENT MODEL ELEMENT PART NUMBER FILTER MODEL ELEMENT MODEL ELEMENT PART NUMBER F200-15-1/4 THRU 25-1/2 E200-15/25-AA 26-10400 F200-265-1-1/4 E200-265-RB 26-2108 F200-15-1/4 THRU 25-1/2 E200-15/25-RAA 26-10401 F200-265-1-1/4 E200-265-C 26-2086 F200-15-1/4 THRU 25-1/2 E200-15/25-A 26-10402 F200-265-1-1/4 E200-265-RC 26-2119 F200-15-1/4 THRU 25-1/2 E200-15/25-RA 26-10403 F200-265-1-1/4 E200-265-RD 26-2156 F200-15-1/4 THRU 25-1/2 E200-15/25
PAGE 4
WARRANTY I. INSTALLATION. Unless otherwise set forth in a quotation and/or acknowledgment, Seller shall not be responsible for installation. Cost of and all risks of damage to the equipment and/or components thereof caused by installation shall be the sole responsibility of Buyer. If supervision of installation and/or supervision of start up of the equipment is to be provided by Seller, Buyer shall assume all costs incurred by Seller in furnishing supervision.
