Product Information

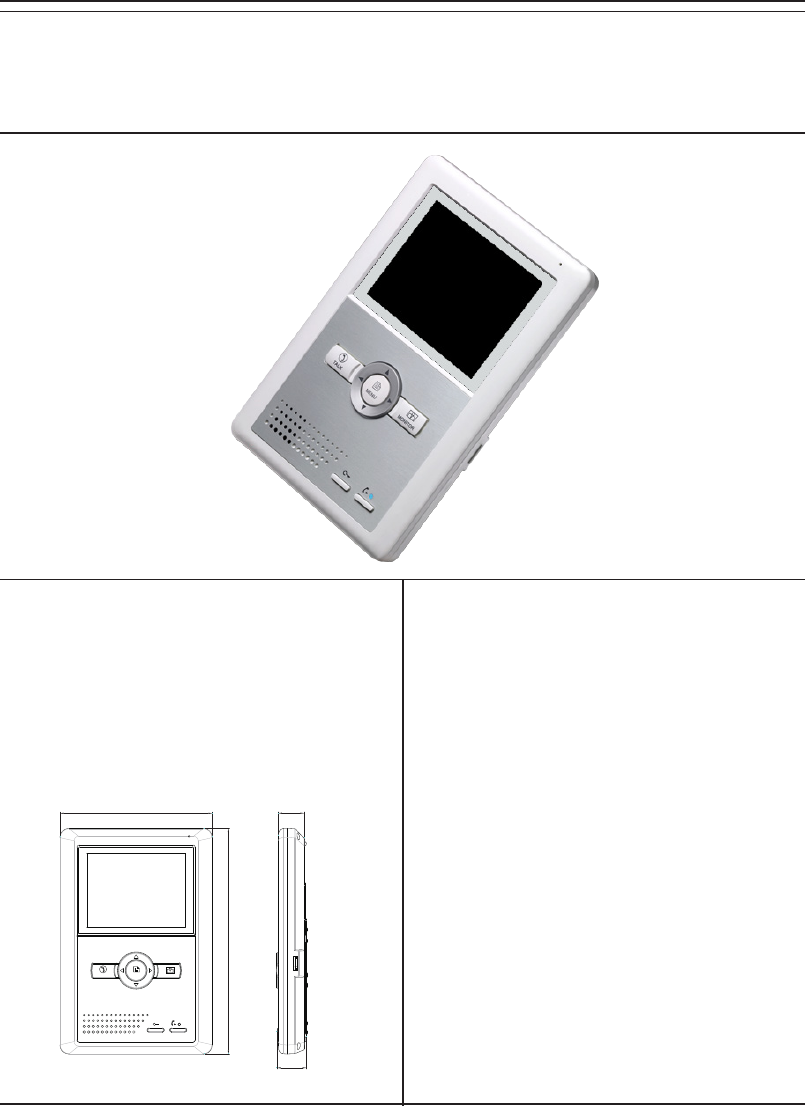

AT25 Series

CAT5 Indoor Monitor

DESCRIPTION FEATURES

DIMENSION

CAT5 system 4 inch color TFT Monitor ► Plastic housing with aluminum front panel;

► Streamlined & thin design with 23mm

thickness only;

► Text menu;

► 12pcs 8-chord Melodies for choose freely;

► Compatible with all AT outdoor & Indoor

stations ;

*1 Multi language & Remote controller

operation(customized);

135

200

26.1

TALK

MONITOR

PAGE 1
Product Information AT25 Series CAT5 Indoor Monitor DESCRIPTION FEATURES CAT5 system 4 inch color TFT Monitor ►► Plastic housing with aluminum front panel; ►► Streamlined & thin design with 23mm thickness only; DIMENSION ►► Text menu; ►► 12pcs 8-chord Melodies for choose freely; 23 135 ►► Compatible with all AT outdoor & Indoor stations ; 200 *1 TALK MENU MONITOR 26.
PAGE 2
1. Parts and Functions Microphone LCD Screen Navigation Button MENU Button TALK Button TALK MENU MONITOR MONITOR Button UNLOCK Button LED Indicator CALL Button Speaker Mounting Hook Main Connection Port Mounting Hook 2.
PAGE 3
. Specification ** Power Supply : DC 24V (supplied by system); ** Power Consumption: <0.5W on standby, <15W on working; ** Display Device: 4’’digital TFT screen with 4:3 rate; ** Video signal: 1Vp-p, 75Ω, CCIR standard; ** Resolution: >300 TV lines; ** Working temperature: 0 ~ +40 0C ** Wiring: CAT5 cable,polarity; ** Monitor Dimension: 200(H)×135(W)×23(D)mm 4. Ordering Information for Monitor TALK MENU MONITOR AT25/D4 Model No.
PAGE 4
5. Optional Accessories (Not included) Item Brief Description Remark DB1-W Desktop bracket in white color For desktop mounting DB1-B Desktop bracket in black color For desktop mounting 6. Packing Information Dimensions: 163(H)×240(W)×40(D)mm Carton: 530 (H)×340 (W)×258 (D)mm Gross Weight: 0.60Kg Quanlity: 24PCS 7.
