Specifications

UVP ... [phone] | [phone] | [phone] | UVP.com
J-138 lamp stand is for use with
any EL Series Lamps allows for
hands free use
C-10E4 and C-10E6 cabinets
can be used with EL Lamps which
emit UV in a darkroom environment
(see page 13 for cabinet ordering
information)
The 8-watt EL lamps can be used
with the C-65 cabinet when a
darkroom environment is needed
(see page 13 for cabinet ordering
information)
J-138 Stand shown with
the 8-watt EL Lamp.
Accessories for EL Series UV Lamps:
J-138 Stand Dimensions:
10.74H x 13L x 3W in. (273 x 330 x 76mm)
Accessories
J-138 Lamp Stand 18-0063-01
C-10E4 Cabinet
(for 4W EL Lamps)
95-0072-08
C-10E6 Cabinet
(for 6W EL Lamps)
95-0072-09

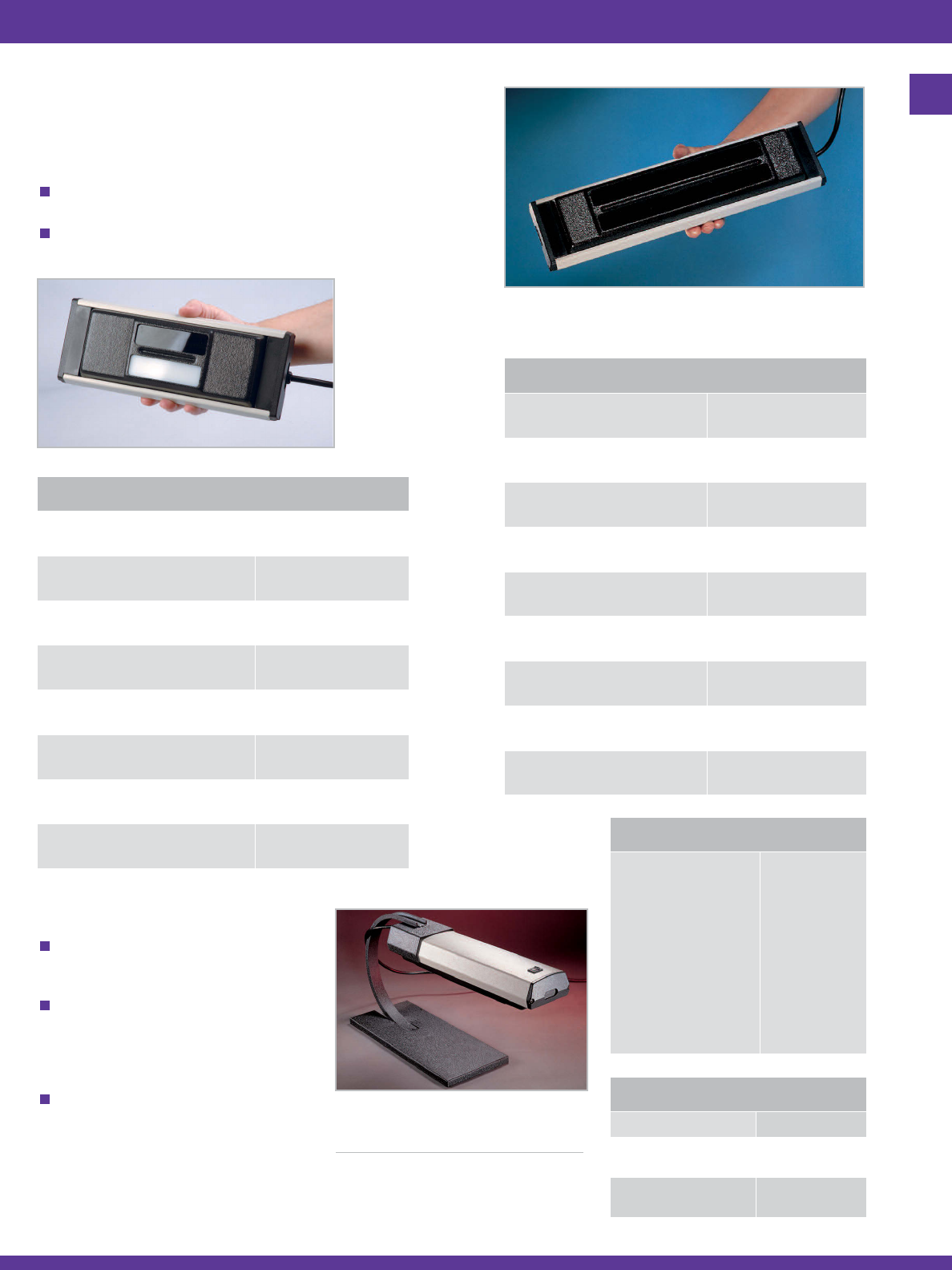

UV/White and Twin EL Series Lamps are available in four, six
and eight watt configurations.
EL Series White/
UV lamps include
UV and white light
(UVS-14 shown).
EL Series Twin Models have two tubes of the same
UV wavelength (UVL-28 shown).
White/UV Models include one UV tube (254, 302 or 365nm)
and one white light tube in one lamp
Twin Models include two tubes of the same UV wavelength
for added UV intensity
Twin Models - Ordering Information
UVL-28
8-watt, 365nm UV
95-0248-01 (115V)
95-0248-02 (230V)
UVM-28
8-watt, 302nm UV
95-0250-01 (115V)
95-0250-02 (230V)
UVS-28
8-watt, 254nm UV
95-0249-01 (115V)
95-0249-02 (230V)
UVL-26
6-watt, 365nm UV
95-0275-01 (115V)
95-0275-02 (230V)
UVM-26
6-watt, 302nm UV
95-0276-01 (115V)
95-0276-02 (230V)
UVS-26
6-watt, 254nm UV
95-0277-01 (115V)
95-0277-02 (230V)
UVL-24
4-watt, 365nm UV
95-0267-01 (115V)
95-0267-02 (230V)
UVM-24
4-watt, 302nm UV
95-0268-01 (115V)
95-0268-02 (230V)
UVS-24
4-watt, 254nm UV
95-0269-01 (115V)
95-0269-02 (230V)
UV/White Models Ordering Information
UVL-18
8-watt, 365nm UV/white
95-0198-01 (115V)
95-0198-02 (230V)
UVM-18
8-watt, 302nm UV/white
95-0199-01 (115V)
95-0199-02 (230V)
UVS-18
8-watt, 254nm UV/white
95-0200-01 (115V)
95-0200-02 (230V)
UVL-16
6-watt, 365nm UV/white
95-0272-01 (115V)
95-0272-02 (230V)
UVM-16
6-watt, 302nm UV/white
95-0273-01 (115V)
95-0273-02 (230V)
UVS-16
6-watt, 254nm UV/white
95-0274-01 (115V)
95-0274-02 (230V)
UVL-14
4-watt, 365nm UV/white
95-0264-01 (115V)
95-0264-02 (230V)
UVS-14
4-watt, 254nm UV/white
95-0266-01 (115V)
95-0266-02 (230V)
Replacement Tubes
Tube, 8-watt, White
Tube, 8-watt, 365nm
Tube, 8-watt, 302nm
Tube, 8-watt, 254nm
Tube, 6-watt, White
Tube, 6-watt, 365nm
Tube, 6-watt, 302nm
Tube, 6-watt, 254nm
Tube, 4-watt, White
Tube, 4-watt, 365nm
Tube, 4-watt, 254nm
Tube, 4-watt, 302nm
34-0056-01
34-0006-01
34-0042-01
34-0007-01
34-0063-01
34-0034-01
34-0044-01
34-0013-01
34-0066-01
34-0005-01
34-0003-01
34-0071-01
36
5
Advanced Imaging Systems
Ultraviolet Lamps
Ultraviolet Lamps
ChemiDoc-It and GelDoc-It Imaging Systems
Ultraviolet transilluminator sits
on the easy-access roll out tray
(select from single or multiple
UV wavelengths)
White light sources include epi
white light and optional LED white
light plate for illumination of Instant
Blue, Silver and Coomassie Blue
High resolution scientific grade
CCD camera
Motorized or manual lens
Selectable four position
filter wheel; includes an
Ethidium Bromide filter
(optional filters available)
Unique viewer window allows
UV-safe viewing of gels without
opening the door
Computer required
(order separately)
Access port for connecting to
the external BioLite (optional)
high intensity multispectral
light source
Lighting switches are
conveniently located
VisionWorks
®
LS Software for image capture,
enhancement, analysis and documentation of
gels, blots and plates. See p. 39 for information.
ChemiDoc-It
2
and GelDoc-It
2
Systems with separate computer and monitor
allow users to capture quality images and perform quantitative analysis,
image enhancements and generate reports at one location.
ChemiDoc-It
2
810 with class-leading image resolution and cooled CCD
(MegaCam 810) with 8.1 MP resolution. Enables shorter exposure times
in chemiluminescence, fluorescence and colorimetric applications.
ChemiDoc-It
2
610 deeply cooled CCD (OptiChemi 610) with 3.2 MP
resolution and extended exposure times in IR/NIR, multiplex and
chemiluminescence applications.
ChemiDoc-It
2
510 with cooled CCD camera (BioChemi 510) with
2.1 MP or 4.1 MP resolution** delivers affordable, high sensitivity for
chemiluminescence, fluorescence and colorimetric applications.
GelDoc-It
2
310 with high resolution CCD camera (GelCam 310) with
2.0 MP resolution for fluorescence and colorimetric research.
System Selection
ChemiDoc-It
2
Applications*
GelDoc-It
2
Applications*
* Applications listed may require additional accessories.
System Specifications:
Cameras/Lens: See specifications p. 39
Darkroom: Light tight
Wide access door
Sliding transilluminator tray
Gel viewing window
Chemi tray (with chemi systems)
Epi Light: White Light
Transillumination: Single or Multiple UV
Filter sizes: 21x26 or 25x26cm
Emission Filters: EtBr (580-630nm)
Four position filter wheel
Other filters available
Software: VisionWorksLS capture/analysis
Systems includes: Camera and lens, darkroom,
EtBr filter, epi white light, choice of transilluminator,
VisionWorksLS Capture and Analysis Software.
System configurations may vary by country.
Contact UVP for system details.
The optional LED
White Light Plate
plugs into the dark-
room for samples
such as Instant Blue,
Coomassie Blue and
Silver Stains.
Advanced Imaging Systems
®
22
®
Dimensions (WDH): 18.5 x 15 x 32 in.
(47 x 38 x 81cm)
White/UV and Twin EL Series Lamps
** 2.1 MP with zoom lens, 4.1 MP with fixed lens
