B-100A pistol-grip
handle balances
the lamp comfort-
ably in the hand.
Dimensions:
B-100A, B-100A/R:
Lamp Head 8.5L x
5.5Dia. in. (216 x
140mm)
Weight: 11.72lb
(5.33kg)
The B-100A High Intensity Lamp features 100 watts of
365nm longwave UV which is excellent for many uses
including inspection purposes.
B-100Y and
B-100YP
produce high
contrast light
for fine sur-
face particle
detection.
The B-100Y and B-100YP lamps provide high-contrast light
for the semiconductor fabrication industry and fine
surface particle detection.
Manufactured with a scratch-resistant, powder painted
aluminum lamp head
Lamp head is connected to the transformer base by an
8 ft. (2.44 m) cord
The handle fits into the transformer base allowing the
lamp head to rotate a full 360 degrees
The B-100A/R has the same features as the B-100A
plus 20 ft. (6.1 m) primary and secondary cords for
additional mobility; cord holders (on two sides of the
ballast) keep slack cord under control
B-100A/R
includes 20 ft.
(6.1 m) primary
and secondary
cords for
additional
mobility.
A yellow filter blocks wavelengths shorter than 500nm
and produces three strong mercury lines at 543, 574
and 576nm
Lamp intensity is so brilliant, particles down to 10 microns
are routinely visible
The lamp handle fits into the transformer base allowing
the lamp head to rotate 360 degrees
B-100Y has scratch-resistant, powder painted aluminum
housing, while the B-100YP has a Cool-Touch design
Ordering Information
BL-15 (not CE)
Replacement Tube, 15-watt
95-0130-01 (115V)
34-0017-01
The lamp has a long, narrow housing that is lightweight
for easy handheld use
Two adjustable hooks are included
The BL-15 longwave 365nm BLB UV lamp is ideal for
inspection applications in hard to reach places.
Dimensions: 20L x 2Dia in. (508 x 50.8mm)
Weight: 2.5 lb (1.1kg); Cord length: 15 ft.
Dimensions:
B-100YP: Lamp Head 9.75D x 6Dia in. (248 x 152mm)
B-100Y: Lamp head 8.5L x 5.5Dia. in. (216 x 140mm)
Ordering Information
B-100A
100-watt, 365nm
Intensity at 2/10 in. (mW/cm
2
)
95-0044-22 (115V)
95-0044-02 (230V)
21,700/8,900
B-100A/R
100-watt, 365nm
Intensity at 2/10 in. (mW/cm
2
)
95-0044-03 (115V)
95-0044-04 (230V)
21,700/8,900
B-100Y
100-watt
95-0044-24 (115V)
95-0044-18 (230V)
B-100YP
100-watt
95-0127-03 (115V)
95-0127-04 (230V)
Bulb, Spot
Lamp Guard
Lamp Visor (B-100Y, B-100A)
Filter/Bezel (B-100YP)
Filter/Bezel (B-100A, B-100A/R)
Filter/Bezel (B-100Y)
34-0054-01
19-0158-01
19-0124-01
38-0168-02
38-0168-03
38-0168-04
BL-15 UV Inspection Lamp
B-100A and B-100A/R Lamps
B-100Y and B-100YP Lamps
32
9
Basic Imaging Systems Ultraviolet Lamps
Choice of monochrome CCD
camera - FluorCam 210 or
FluorCam 220
Compact design and small
footprint are excellent for
limited laboratory space
Zoom lens is easily accessible
for adjustment of the aperture,
zoom and focus
Save images to the USB drive
or connect to a network for
image transfer to another com-
puter
Side access doors (BioDoc-It
220 models only) allow gels to
be moved while viewing gel
fluorescence through the window
Epi white light for focusing
and illumination of samples
Ethidium bromide filter is
placed in the slide-out filter
tray; allows exchange of filter
(other filters available)
Select from Benchtop UV or
Visi-Blue Transilluminators
Large 8” touch screen
displays live preview of images;
the screen tilts for optimum
viewing angle
Unique Viewer window
allows UV-safe viewing of gels
without opening the door

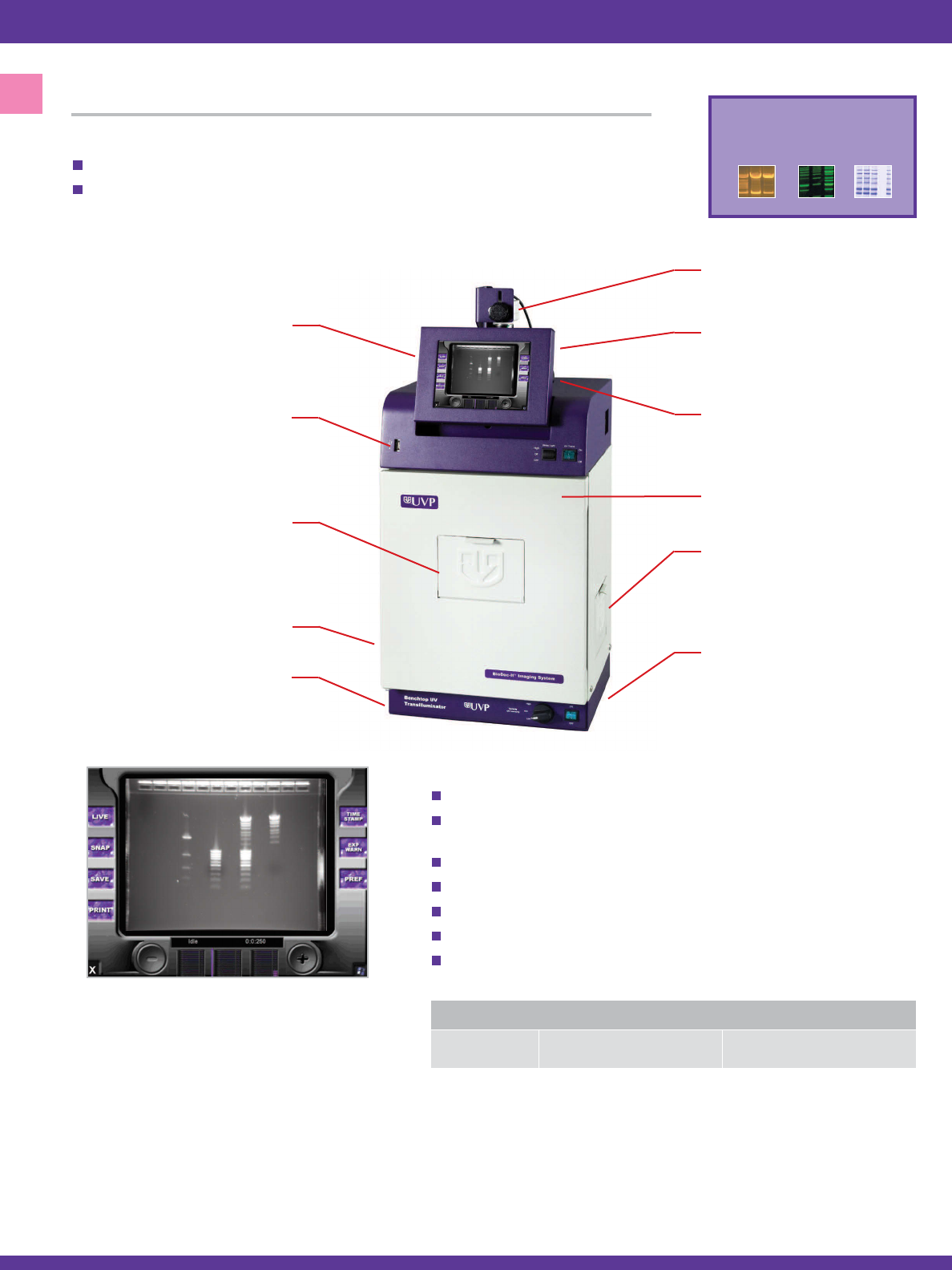

BioDoc-It
®
Imaging Systems
Commonly used functions are selected directly from the main screen:
Live – See a live preview of the gel
Snap – Capture the image and Save the snapped image to TIFF,
GIF and JPEG file formats
Print – Connect and print to an optional printer
Time Stamp – Set the date and time for each image captured
Exp Warn – Set the exposure warning
Pref – Set user preferences
Integration – Increase or decrease integration times
Wide access door with
safety switch turns UV off when
the door is open
BioDoc-It Systems are available in two different styles:
BioDoc-It 220 models feature a 1.3 megapixel camera plus side access doors
BioDoc-It 210 models feature a 0.3 megapixel camera (no side doors).
Capture, preview and save gel images with user-friendly features that enable fast, easy to
use gel documentation. The simple design is excellent for multiple user laboratories. An
external computer is not required. Network connectivity is integrated for transfer of
images directly to a computer.
Camera Specifications
Camera/
Description
FluorCam 210 FluorCam 220
CCD Imager:
Resolution:
Pixel Resolution:
Grayscale:
Lens:
Monochrome 8-bit scientific
grade CCD
0.3 megapixels
640 x 480
0 - 256
8-48 mm zoom
Monochrome 12-bit scientific
grade CCD; 16-bit file bit depth
1.3 megapixels
1280 x 1024
0 - 65,535
8-48 mm zoom
Optional Accessories
GelTray protects the transilluminator surface
(27 x 23cm) 85-0007-05
Thermal Printer for archive quality prints.
See page 39 for details.
SYBR Green Filter enables capture of
SYBR Green and similiar stains. 38-0219-01
BioDoc-It
Applications*
Ultraviolet Lamps
Basic Imaging Systems
BL-15 has a narrow, durable plastic housing and 15’ cord.
* Applications may require light
plates. See page 27 for details.
