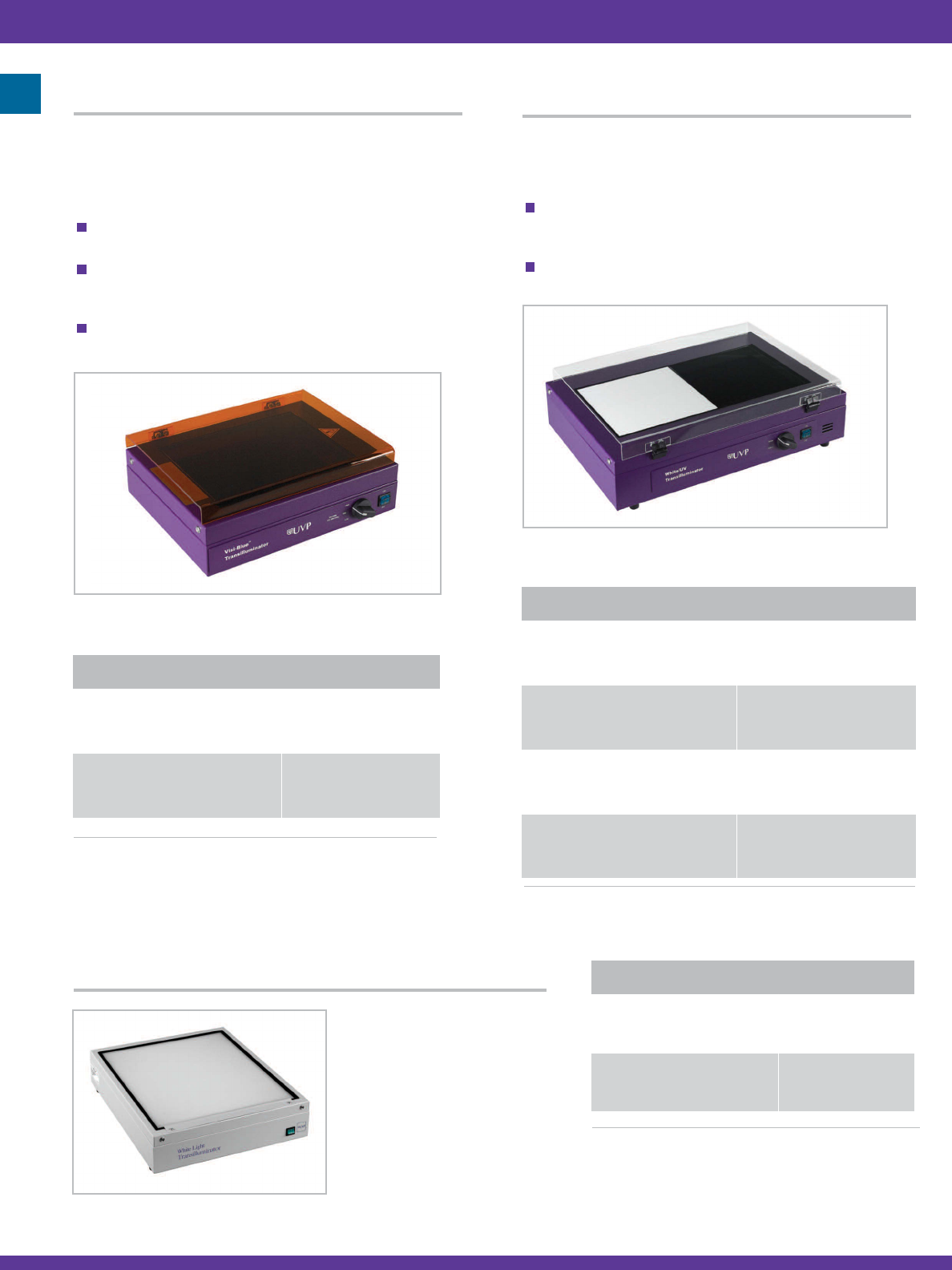

Visi-Blue transilluminators are excellent for use with blue
460-470nm excitation samples including SYBR Green,
SYPRO Orange and GFP stains. A special amber camera
filter (50mm sq) is included for photography of gels.
Visi-Blue transilluminators and converter plates
minimize photonicking of DNA samples
The amber protective cover blocks blue light
transmission and allows visualization of most samples
above 500nm
VB-26V is a compact 8-watt model while the
VB-40V is a large format 25-watt model
VB-26V Visi-Blue Transilluminator patented
design supplies 460-470nm illumination.
Dimensions: Height includes amber cover
VB-26V: 11D x 14W x 4.8H in. (279 x 356 x 122mm)
Wt: 15 lb. (6.8 kg)
VB-40V: 13.25D x 19.13W x 5.6H in. (337 x 486 x 143mm)
Wt: 21 lb. (9.6 kg)
Ordering Information
VB-26 8-watt Variable Intensity
Filter Size 21 x 26cm
Replace. Tube, 365nm BLB
95-0461-01 (100-115V)
95-0461-02 (230V)
34-0031-01
VB-40V 25-watt Variable Intensity
Filter Size 20 x 40cm
Replace. Tube, 365nm BLB
95-0433-01 (100-115V)
95-0433-02 (230V)
34-0060-01
White/UV transilluminators have 20 x 20cm white light and
UV filter areas side by side for illumination of multiple
stained gel types:
White light can be used for viewing Coomassie blue
and silver stained protein gels, autoradiographs and
microtiter plates
The UV side can be used for viewing Ethidium Bromide
and other stained gels
Dimensions: Height include UV blocking cover
13.25D x 19.13W x 5.64H in. (337 x 486 x 143mm)
Weight: 21 lb. (9.6 kg)
White/UV Transilluminator Easily switch between the
UV and white light sources.
Ordering Information
TLW-20 8-watt
365nm UV/White
Filter Size 20 x 20cm
95-0415-01 (100-115V)
95-0415-02 (230V)
TMW-20 8-watt
302nm UV/White
Filter Size 20 x 20cm
95-0415-04 (100-115V)
95-0415-05 (230V)
LMW-20 8-watt
365/302nm UV/White
Filter Size 20 x 20cm
95-0418-01 (100-115V)
95-0418-02 (230V)
Replacement Tube, White
Replacement Tube, 365nm
Replacement Tube, 302nm
34-0056-01
34-0006-01
34-0042-01
Work areas of 21 x 26cm or
36 x 43cm.
White Light Transilluminators
offer uniform light diffusion for
autoradiographs, film positives,
negatives, X-ray film, microtiter
plates and gels.
Plexiglas
Ò
and glass filter
plates are sealed into the unit
for durability.
Ordering Information
TW-26 8-watt
Filter Size 21 x 26cm
Replacement Tube
95-0208-01 (115V)
95-0208-02 (230V)
34-0056-01
TW-43 14-watt
Filter Size 36 x 43cm
Replacement Tube
95-0214-01 (115V)
95-0214-02 (230V)
34-0059-01
Dimensions:
TW-26: 9.5D x 13.25W x 4.25H in. (241 x 337 x 108mm)
Wt: 8 lb. (3.8 kg)
TW-43: 19.1D x 16W x 4.25H in. (486x406x108mm)
Wt: 19 lb. (8.6 kg)
Visi-Blue
TM
Transilluminators
White/UV Transilluminators
White Light Transilluminators
Transilluminators
Transilluminators
Rare Gas Lamp are
available with Argon,
Krypton, Neon or
Xenon fills.
Rare gas lamps incorporate the Pen-Ray lamp
body but replace the mercury for other reactive
ingredients. Gases available are argon,
krypton, neon, neon-mercury and xenon.
Ask UVP about other gas combinations. A
recommended power supply (order separately)
is noted for each lamp.
Pen-Ray Rare Gas Lamps
Ordering Information / Specifications Dimensions Recommended Power Supplies
Part Number Model Description Gas Fill
Lighted
Length
(mm)
Quartz
Diameter
(mm)
Handle
Diameter
(mm)
Overall
Lamp
Length
(mm)
Cord
Length
(mm)
AC
Power
Supply
DC Power
Supply/
Current
Maximum
Nominal
Starting
Voltage
Nominal
Operating
Voltage
90-0013-01 11AC-2.12-PO-16 Argon 53.8 6.5 9.5 117.3 406.4 PS-3 PS-6/10mA 1000 450
90-0014-01 11KC-2.12-PO-16 Krypton 53.8 6.5 9.5 117.3 406.4 PS-3 PS-6/10mA 1000 450
90-0015-01 11NC-2.12-PO-16 Neon 53.8 6.5 9.5 117.3 406.4 PS-3 PS-6/10mA 1000 450
90-0016-01 11CC-2.12-PO-16
Neon/
Mercury
53.8 6.5 9.5 117.3 406.4 PS-1 PS-6/10mA 1000 500
90-0017-01 11XC-2.12-PO-16 Xenon 53.8 6.5 9.5 117.3 406.4 PS-2 PS-6/6mA 1000 500
Part Number Model
Input
Current
Primary
Voltage
Lamp Current
(mA/AC)
Dimensions
L x W x H (mm)
AC INPUT POWER SUPPLIES
99-0055-01 PS-1 AC 115V/60Hz 18 160 x 94 x 53
99-0055-02 PS-1 AC 230V/50Hz 18 160 x 94 x 53
99-0056-01 PS-2 AC 115V/60Hz 6 160 x 94 x 53
99-0056-02 PS-2 AC 230V/50Hz 6 160 x 94 x 53
99-0057-01 PS-3 AC 115V/60Hz 10 160 x 94 x 53
99-0057-02 PS-3 AC 230V/50Hz 10 160 x 94 x 53
99-0004-01 PS-4 AC 115V/60Hz 26 117 x 147 x 97
99-0004-02 PS-4 AC 230V/50Hz 26 117 x 147 x 97
40-0062-01 PS-8 AC 115V/60Hz 30 256 x 102 x 86
40-0062-02 PS-8 AC 230V/50Hz 30 256 x 102 x 86
99-0033-01 PS-9 AC 115V/60Hz 48 147 x 117 x 92
99-0033-02 PS-9 AC 230V/50Hz 48 147 x 117 x 92
DC INPUT POWER SUPPLIES
44-0002-01 PS-7* DC 12V/30kHz 5/10 28 x 56 x 17
99-0076-01 PS-6* DC 24V/38kHz 18 98 x 89 x 38
99-0077-01 PS-5* DC 12V/38kHz 18 98 x 89 x 38
99-0065-01 PS-6 DC 24V/38kHz 28 122 x 108 x 51
99-0065-02 PS-6** DC 24V/38kHz 18 122 x 108 x 51
99-0065-03 PS-6 DC 24V/38kHz 18 122 x 108 x 51
99-0065-04 PS-6** DC 24V/38kHz 10 122 x 108 x 51
99-0065-05 PS-6 DC 24V/38kHz 10 122 x 108 x 51
99-0065-06 PS-6** DC 24V/38kHz 6 122 x 108 x 51
99-0065-07 PS-6 DC 24V/38kHz 6 122 x 108 x 51
Pen-Ray Lamps operate on AC current.
For certain systems it may be desirable to
operate the lamp at higher frequencies than
60 Hz. Lamps can operate satisfactorily at
frequencies from 50 Hz to 50 kHz. Lamps
using PS-6 operate at the nominal frequency
of 38 kHz. Mating recommendations are
available to provide optimum energy output
from, and maximum life span of, Pen-Ray
Lamps.
The power supplies feature a standard lamp
current shown in the chart. Power supplies
can be ordered with specific ranges and
currents. Contact UVP for information.
Specific DC power supplies are designed as
open power sources with board only and no
housing for placement in other units.
Pen-Ray Power Supplies
Pen-Ray Light Sources
PS-1 Power supply (99-0055-01) with lamp
connector. PS-2 and PS-3 have the same
housing as the PS-1.
* Board only
** With timer
