Specifications

XX Series shortwave bench lamps use 254nm UV as a reliable
and effective tool for decontamination in hospitals, research labs,
pharmaceutical labs and clinics. Work areas and equipment can
become contaminated with bacteria which may be passed via the
air or by hand, infecting research projects and workers. Once the
micro-organism is determined and how much energy is needed,
divide the energy required (in units mW/cm
2
at 12 in. for the XX-
15S) to calculate the total exposure time required to do the job.
Place the lamp in an upward facing position for purifying air or
facing downward for sanitizing work surfaces
Shortwave (254nm) ultraviolet can kill up to 99% of bacteria,
mold spores, yeast and germs
The UV intensity can be increased by bringing the lamp closer
to object being sterilized
Dimensions:
XX-15: 19.75L x 6W x 4.25H in. (502 x 152 x108mm)
Weight: 5 lb (2.3kg)
XX-20: 24L x 6W x 4.25H in. (610 x 152 x 108mm)
Weight: 10 lb (4.5 kg)
XX-40: 49.6L x 6W x 4.25H in. (1260 x 152 x 108mm)
Weight: 20 lb (9.0 kg)

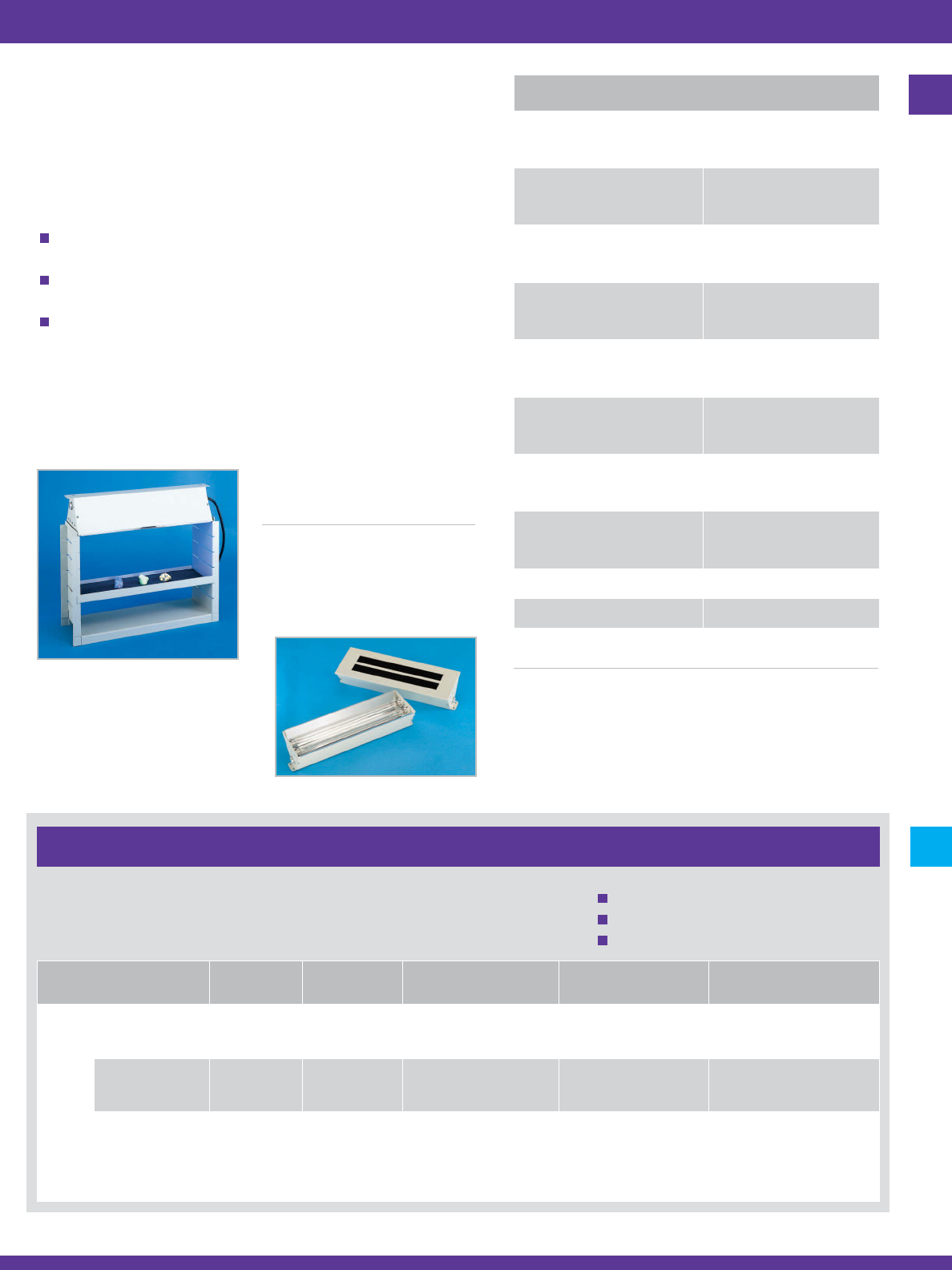

Exposure Stand shelf is
adjustable to different levels for
exposure of samples.
XX-15 lamp models can be attached to the Exposure Stand for
exposure of materials to ultraviolet. Shelf is adjustable to set
distances from the UV source.
Stand Dimensions:
20W x 6D x 13H in. (508 x 152 x
330mm)
Weight: 8 lb (3.6 kg)
XX-15 Lamp Accessories
Optional UV transmitting filter
for the XX-15S allows use for
fluorescence applications.
Filter Cover can be attached
to the XX-15S lamp.
11
Ordering Information
XX-15S
254nm UV, 15-watt
Replacement Tube
95-0042-05 (115V)
95-0042-09 (230V)
34-0008-01
XX-15M
302nm UV, 15-watt
Replacement Tube
95-0042-08 (115V)
95-0042-15 (230V)
34-0039-01
XX-15L
365nm UV, 15-watt
Replacement Tube
95-0042-07 (115V)
95-0042-13 (230V)
34-0009-02
XX-15 BLB
365nm BLB UV, 15-watt
Replacement Tube
95-0042-06 (115V)
95-0042-11 (230V)
34-0017-01
XX-20S
254nm, 20-watt
Replacement Tube
95-0045-07 (115V)
95-0045-08 (230V)
34-0067-01
XX-20 BLB
365nm BLB UV, 20-watt
Replacement Tube
95-0045-04 (115V)
95-0045-05 (230V)
34-0068-01
XX-40S
254nm, 40-watt
Replacement Tube
95-0043-07 (115V)
95-0043-08 (230V)
34-0067-02
XX-40 BLB
365nm BLB UV, 40-watt
Replacement Tube
95-0043-04 (115V)
95-0043-05 (230V)
34-0068-02
Clear Cover (XX-15 BLB) 19-0140-01
Filter Cover (XX-15S) 38-0172-02
XX-15 Stand 18-0062-01
UVP ... [phone] | [phone] | [phone] | UVP.com
30
Basic Imaging Systems
Ultraviolet Lamps
These Fluorescent Inks are ready-made and suited for use on many surfaces
including skin, fabric and porous or textured materials. RI-10 and RI-20 inks are
used for re-admittance at events. See pages 3-10 for selection of longwave lamps.
Blak-Ray
Ò
Fluorescent Inks
Part Numbers
Normal
Color
Fluorescent
Color
Used For Used On Applied By
Readmittance
(Porous)
RI-10 Ink
96-0021-04
Qty: 12 pt./case
Colorless
Alcohol Base
Blue
Textile
Marking
Skin or Fabric
Felt Pen, Stencil, Stamp
and Pad, Brush, Automatic
Marker, Roller
RI-20 Ink
96-0021-05
Qty: 12 pt./case
Faint Yellow
Alcohol Base
Green
Textile
Marking
Skin or Fabric
Felt Pen, Stencil, Stamp
and Pad, Brush, Automatic
Marker, Roller
Printing
(Non-
Porous)
A-946 Ink
96-0057-04
Qty: 1 pt.
Colorless
Solvent Base
Blue
Industrial Coding,
Theatrical, Coupons,
Security Printing, Raffle
Tickets, Inventory Control,
Advertising
Aluminum, ABS, Acrylic,
Rubber, Cellulose
Acetate, Formica, Nylon,
Polystyrene,
Polyethylene
Roller, Felt Pen
Stamp and Pad, Automatic
Marker, Flexographic,
Rotogravure, Brush
Inks are economical
Simple to use
Inks are non-toxic
Ultraviolet Lamps Blak-Ray Fluorescent Inks
The sturdy housing of the MultiDoc-It is for multiple user laboratories
capturing gel images. For imaging in Thin Layer Chromatography (TLC)
applications, the system is available without a transilluminator.
High resolution megapixel digital color camera
for capturing images
Rugged metal darkroom, with overhead white
light, mounts onto a transilluminator (or plate
for TLC applications)
Capture software enables image capture,
enhancement and reporting capabilities
Optional UV lamps can be mounted in the
darkroom for overhead UV illumination
(MultiDoc-It TLC includes two UV lamps but
no transilluminator)
ChromaDoc-It features a high resolution digital color camera plus
overhead UV for capturing brilliant color Thin Layer Chromatography
(TLC) images. Software loads on the user’s computer for image capture,
image enhancement and reports.
Cabinet features built-in overhead shortwave
and longwave UV positioned on two sides of
the cabinet for uniform UV illumination
Interior overhead white light
Software controls the camera, image capture
and enhancement functions
Cabinet Dimensions: 19.75W x 16.5D x 15.375H in.
(502 x 419 x 391mm)
Dimensions: 14W x 12.7D x 19H in. (356 x 323 x 483mm)
ChromaDoc-It
TM
Imaging Systems
High resolution digital color
camera to capture gel images
Ethidium
bromide filter
Ordering Information
ChromaDoc-It System
97-0109-01 (115V)
97-0109-02 (230V)
Systems include: Digi Camera** (High Megapixel
Digital Color), Cabinet with 254/365nm UV and Camera
Mount, TLC filter; Capture/Control Software ( Windows
XP or higher)
Lightweight cabinet
features a curtain to
block ambient light
Built-in overhead
254nm/365nm UV
for bright illumination
of samples
Ordering Information
MultiDoc-It with
M-20V Transilluminator
97-0192-01 (115V)
97-0192-02 (230V)
MultiDoc-It with
LM-20E Transilluminator
97-0193-01 (115V)
97-0193-02 (230V)
MultiDoc-It with
M-26V Transilluminator
97-0194-01 (115V)
97-0194-02 (230V)
MultiDoc-It with
LM-26E Transilluminator
97-0195-01 (115V)
97-0195-02 (230V)
MultiDoc-It TLC
with 2 UVGL-25 UV lamps
97-0202-01 (115V)
97-0202-02 (230V)
UVGL-25 UV Lamp,
254/365nm UV
95-0021-12 (115V)
95-0021-10 (230V)
Systems include: Digi Camera**, darkroom, UV transilluminator, capture/control
software (Win XP or higher), EtBr filter. MultiDoc-It TLC includes UV lamps but no
transilluminator
MultiDoc-It
TM
Imaging Systems
Wide access door
with UV-safe
viewing window
Transilluminator connects to the
darkroom; UV shuts off when door
is open (select from several models)
Camera mounts
in the darkroom
Ethidium
bromide filter
Optional UV
lamps mount
in the darkroom
for overhead
UV lighting
(lamps are
included with
MultiDoc-It
TLC version)
MultiDoc-It System shown
with optional UV lamps for
overhead ultraviolet illumination.
** For current Digi Camera specifications, go to UVP.com or contact UVP.
Note: For DigiDoc-It, ChromaDoc-It and MultiDoc-It Systems, software loads on
user’s computer for image capture.
Models available with side access doors.
* Applications may require accessories.
MultiDoc-It Applications*
Access
door
ChromaDoc-It
Applications
Basic Imaging Systems
ChromaDoc-It TLC Imaging System The high resolution color camera
is excellent for imaging thin layer chromatography (TLC) gels.
