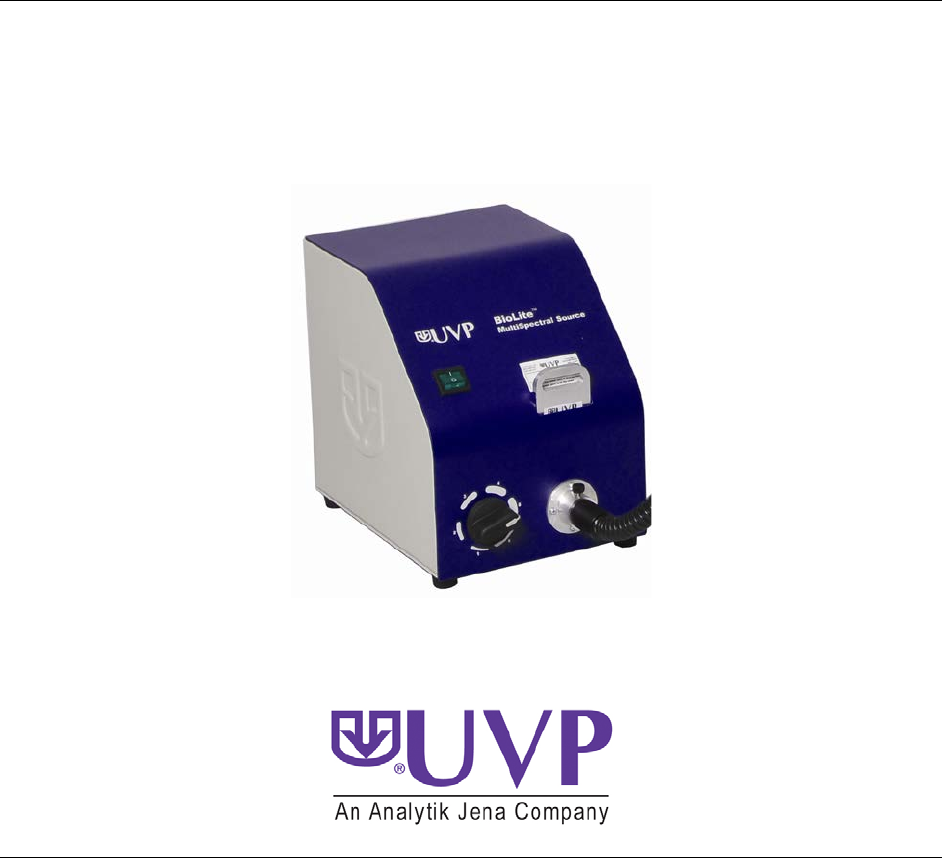

Manual BioLite™ MultiSpectral Light Source Installation and User Instructions UVP, LLC 2066 W. 11th Street Upland, CA 91786 Phone: (800) 452-6788 Fax: (909) 946-3597 Ultra-Violet Products Ltd. Unit 1, Trinity Hall Farm Estate Nuffield Road, Cambridge CB4 1TG UK Phone: +44(0)1223-420022 Fax: +44(0)1223-420561 Web Site: www.uvp.
Manual BioLite MultiSpectral Light Source 2 Table of Contents Introduction ..................................................................................................................................................................3 System Components ...................................................................................................................................................4 Specifications .........................................................................................
Manual BioLite MultiSpectral Light Source 3 Introduction The Manual BioLite MultiSpectral Light Source is a 150 watt quartz halogen light source designed for use with select UVP Advanced Imaging Systems. The unit features a six position mechanical dimmer permitting variable intensity, as well as easily exchangeable excitation filters for monochromatic light output. A closed optical path tightly controls the output spectrum, allowing for consistent repeatable measurements with superior signal to noise.
Manual BioLite MultiSpectral Light Source 4 System Components Refer to the packing slip and schematic shown below for specific parts and components included with the BioLite MultiSpectral Light Source. Excitation Filter Cartridge Master Power Switch Fiber Optic Port and Cable Light Intensity Selector Knob Specifications Color Temperature: 3250°K Bulb Type: 150 Watt Halogen Type EKE Ferrule Dimension: 0.718 inch (18.2 mm) Physical Dimensions: Height Width Depth Weight 8.
Manual BioLite MultiSpectral Light Source 5 Output Spectrum Intensity The graph below displays the spectral emission curve for the halogen light source within the BioLite (shown without filtering): Wavelength (nm) Safety Information WARNING: The device will overheat if the fan outlet on the back of the BioLite is blocked. WARNING: The quartz halogen bulb becomes very hot with use. Do not open the bottom access panel while the BioLite is running or without allowing it to fully cool.
Manual BioLite MultiSpectral Light Source 6 Setup Instructions BioLite MultiSpectral Light Source Setup 1. Plug the power cord into the receptacle on the back of the unit and the other end to a power outlet. 2. Position the BioLIte to the left of the darkroom. 3. Insert the filter cartridge into the filter port. NOTE: Filters and their cartridges are directional. Make sure that the label is facing forward.
Manual BioLite MultiSpectral Light Source 4. 7 The light guides should be on the inside of the darkroom. Make sure the fiber optic cables extend from the light guide toward the front of the darkroom (toward you). Match the drilled holes in the light guide holders to the protruding screws in the epi light structure. Use the brass thumb nuts to secure the light guides to the darkroom. Attach light guides to these screws at top of darkroom using the brass thumb nuts 5.
Manual BioLite MultiSpectral Light Source 4. 8 Position the light guide in the mounting bracket as shown below. Make sure the cable protruding from the light guide faces toward the front of the darkroom (toward the darkroom door) and that the light emitting portion of the light guide is facing toward the platform tray. Cable faces the front of the darkroom Light guide fits snugly in mounting bracket Light emitting portion of the light guide is facing platform tray 5.
Manual BioLite MultiSpectral Light Source 9 4. Thread the knurled (non-smooth side) of the fiber optic cable from the inside of the darkroom through the hole created by removing the stopper until the large bulb separating the smooth and rough side of the fiber optic cable can no longer be pushed through the opening. 5. Remove the rubber cap from the input side of the fiber optic trunk and insert the fiber optic receptacle into the round silver connector on the front of the BioLite. 6.
Manual BioLite MultiSpectral Light Source 10 Using the Light Source 1. Set the power switch on the front of the system to the ON (I) position. 2. Rotate the black rotary knob on the front of the BioLite to adjust light intensity as desired.
Manual BioLite MultiSpectral Light Source 11 Service Procedures Bulb Replacement The BioLite’s Type EKE 150 watt halogen bulb has a standard life of 200 hours. It must be replaced with the same bulb type only. The UVP part number is 34-0088-01. The BioLite bulb replacement procedure is as follows: 1. After allowing the unit sufficient time to cool after last use (at least 1/2 hour), unplug the BioLite from its power source. 2.
Manual BioLite MultiSpectral Light Source 12 5. Insert the replacement EKE halogen 150 watt bulb, ensuring that it is fully seated. 6. Replace the cover and secure with the brass nut before plugging unit back in or turning it on. Return Procedure A Returned Goods Authorization (RGA) number must be obtained from UVP Customer Service before returning any product. See “Technical Support” below for contact information.
Manual BioLite MultiSpectral Light Source 13 Care and Cleaning Use only mild soap or detergent solution for cleaning. Do NOT use oil- or petroleum-based cleaners for the cabinet. Ensure that the system is turned OFF and unplugged during cleaning. Technical Support UVP offers free lifetime technical support on all of its products and software. Should you have any questions regarding the product’s use, operation or repair, contact UVP’s offices at the locations below, or visit www.uvp.com.
