User Manual

2

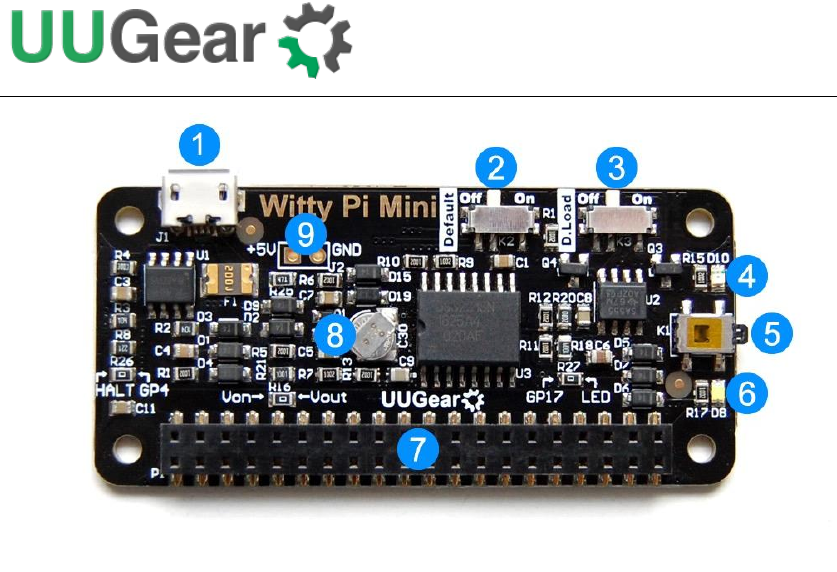

1) Micro USB connector as DC 5V power in
2) Configure if Raspberry Pi should be turned on when power connected
3) Configure if dummy pausing load should be turned on.
4) Red LED as power indicator, when Raspberry Pi is on.
5) Tact switch to turn on/off Raspberry Pi.
6) White LED as action indicator.
7) 2x20-pin header (connects to Raspberry Pi).
8) Super capacitor (0.08F, or 80000uF) for off-power time keeping.
9) Unpopulated connector as DC 5V alternative power input.
What is in the Package?
Each Witty Pi Mini package contains:
 Witty Pi Mini board x 1
 M2.5 x 10mm plastic screw x 4
 4mm spacer x 4
 M2.5 plastic nut x 4
