Provisioning Features
99
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Provisioning Features
The UTStarcom iAN-02EX supports two main features in its design.
a
Remote Configuration - Auto upgrade of ATA (Analog Telephone Adapter)
configuration using remote Provisioning server and configuration files.
b
Remote Firmware Upgrade - Auto upgrade of ATA firmware using remote
Upgrade Server and firmware file.
The Provisioning and Upgrade servers can use both TFTP/HTTP protocol in
order to transact the configuration and firmware files to the ATA.
The rules and provisioning methodology are explained in the subsequent
sections.
GUI Settings for
Provisioning/Upgrade
Server

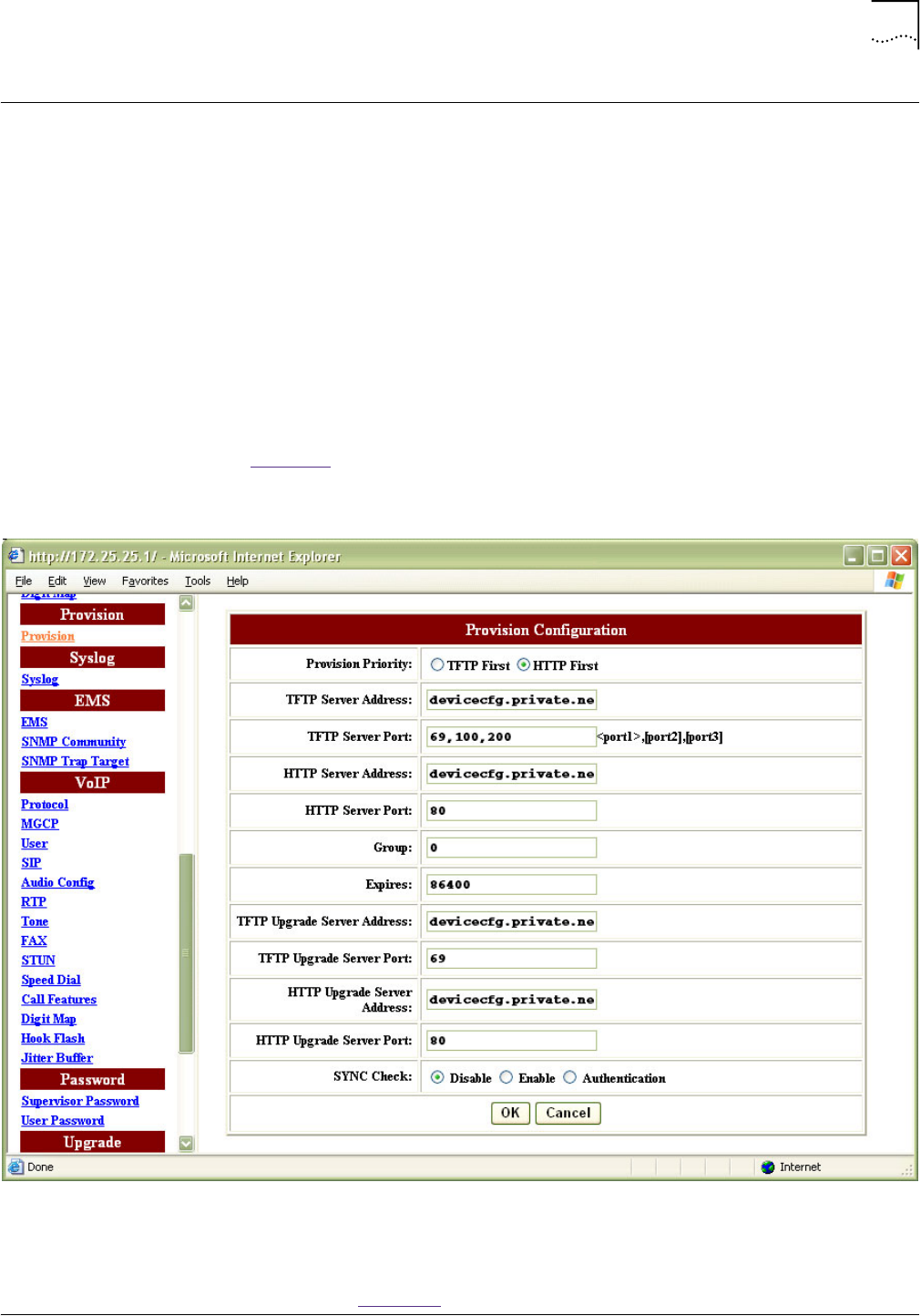

Figure 75 shows the provisioning tab on the GUI.
Figure 75
Provisioning / Upgrade Server GUI Settings
User needs to setup the provisioning / Upgrade servers and ports in order to
start up the process. The detailed description of the provisioning process is as
described in Chapter 5
.
