Technical data

View 89
Part Number UTSI-NJTC-200323150117 iAN-02EX
June 2005
Administrator Manual
View The abconfig.cfg contains all the configuration information of the ATA. User can
modify the configuration with the
Configuration Click Configuration in the View section. Click the configuration file listed in
Figure 67
to display the details shown in Figure 68.

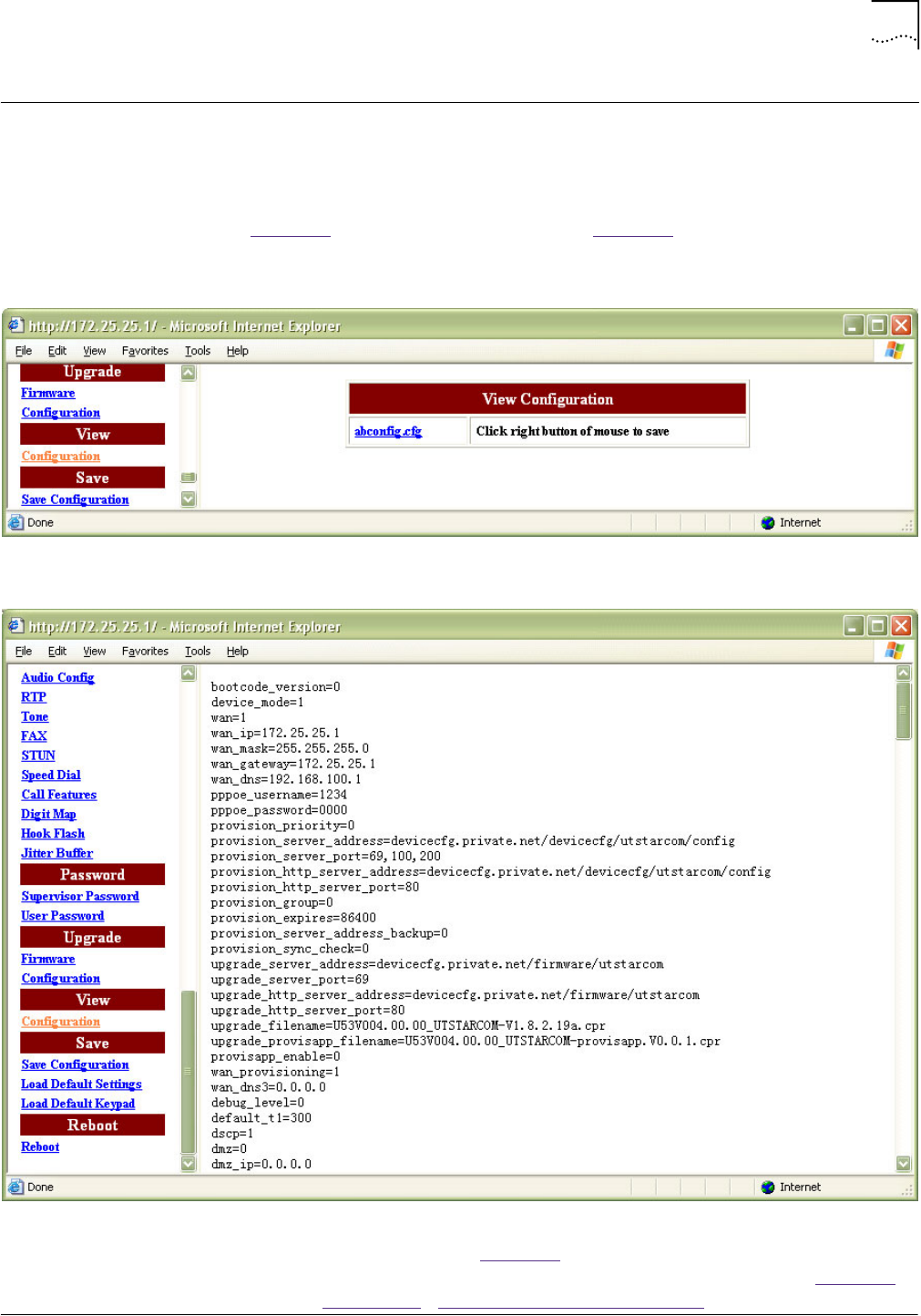

Figure 67 View - Configuration
Figure 68 View - Configuration - abconfig.cfg
Right click
abconfig.cfg in Figure 67 and click Save Target As to backup the
configuration file to a local directory. The backup file is displayed in Figure 69
.
Refer to Appendix C
.- Default Value and Value Range for the default settings.
