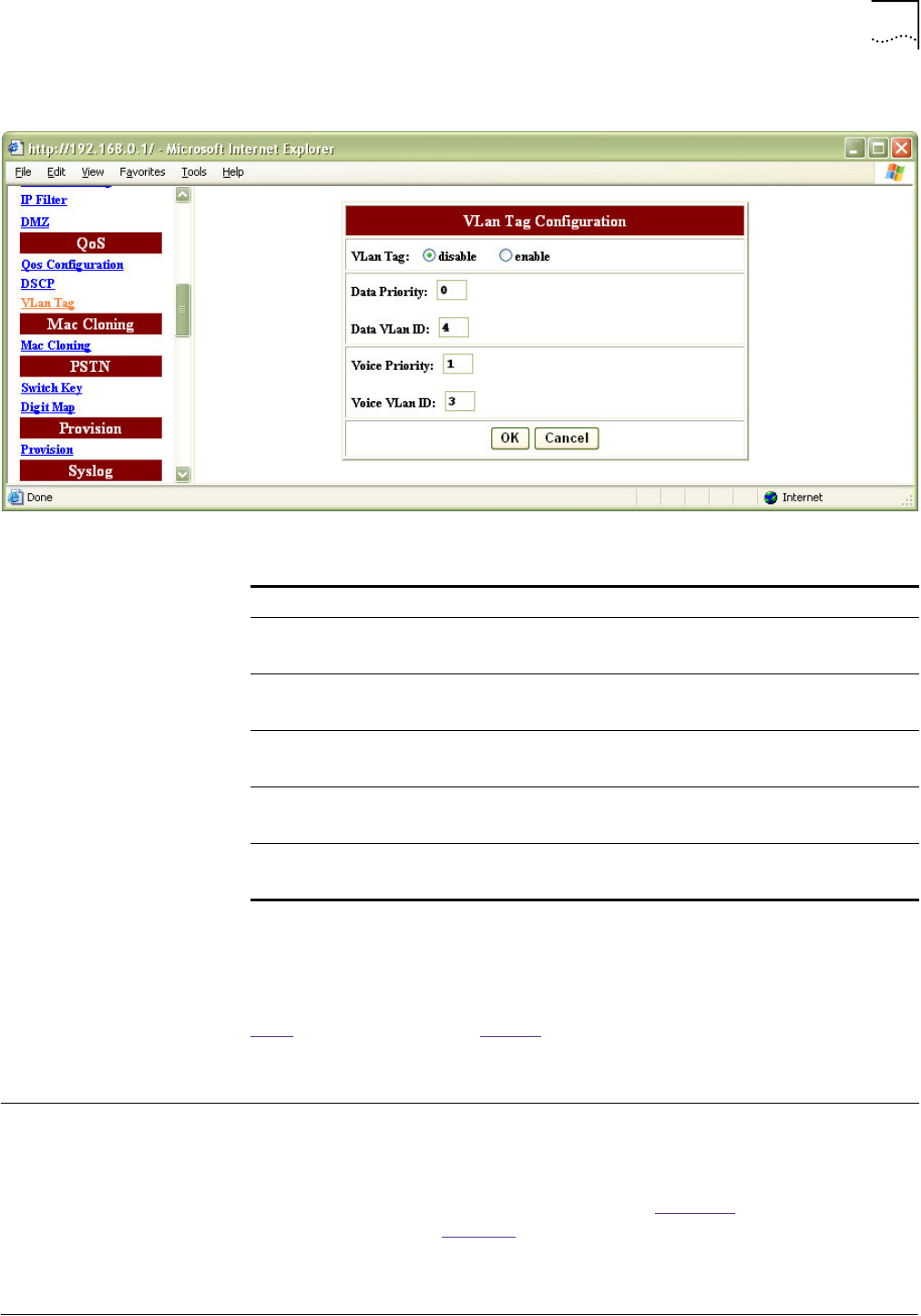

Figure 35
QoS - VLan Tag
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save
the configuration and Reboot the module for the new configuration to take
effect.
Mac Cloning
MAC cloning is to present a user defined MAC address to the WAN. It is useful
when the ISP has restrictions on the MAC address.
Mac Cloning
Click
Mac Cloning
in the
Mac Cloning
section. Figure 36 prompts for
configuration. Refer to Table 23
for more information of the parameters.
Table 22
QoS - VLan Tag Field Description
Field Description
VLan Tag To disable/enable VLan tag
Default: Disable
Data Priority The priority value for data packet
Default: 0
Data VLan ID The data VLan ID
Default: 4
Voice Priority The priority value for voice packet
Default: 1
Voice VLan ID The voice VLan ID
Default: 3
