Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Save the configuration and Reboot the module for the new configuration to take
effect.
DSCP
iAN-02EX provides the option to retain or remove the outgoing packet priority for
To S.
Click
DSCP
in the
QoS
section. Figure 34 prompts for configuration. Refer to
Table 21
for more information of the parameters.

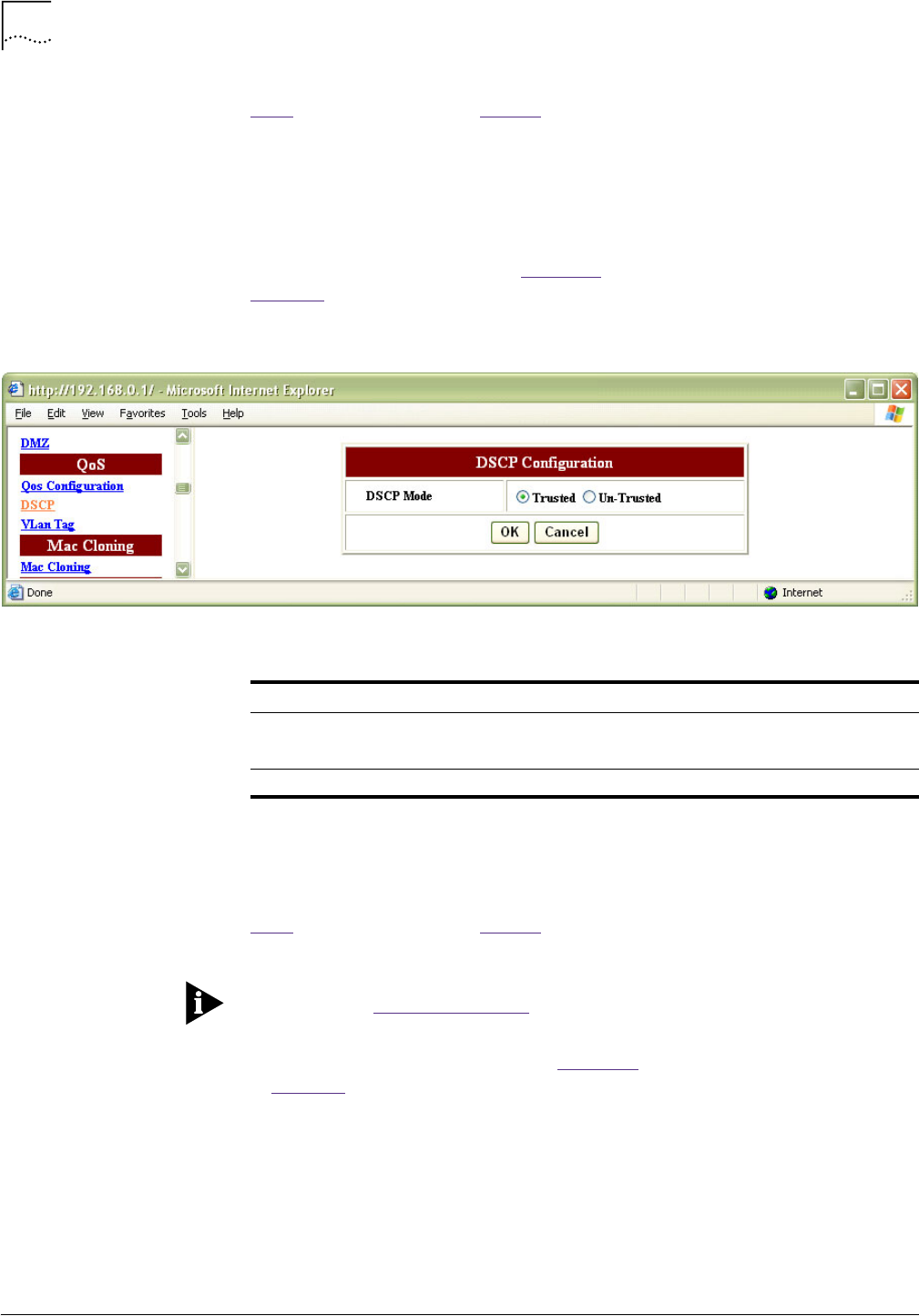

Figure 34
QoS - DSCP
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save
the configuration and Reboot the module for the new configuration to take
effect.
Note: Refer to QoS Configuration for ToS configuration.
VLan Tag
Click
VLAN Tag
in the
QoS
section. Figure 35 prompts for configuration. Refer
to Table 22
for more information of the parameters.
Table 21
QoS - DSCP Field Description
Field Description
Trusted Retain the DSCP priority associated with outgoing packets.
Default.
Un-Trusted Remove the DSCP priority associated with outgoing packets.
