Gateway Mode Settings
53
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Enter the corresponding ID number listed in the table and click
Delete
to remove
the entry.
Save
the configuration and Reboot the module for the new configuration to take
effect.
Note: Rule ID # 10 is a module default entry. Do not delete this entry.
IP Filter
iAN-02EX provides the option to block access from the IP addresses specified
in the IP filter.
Click
IP Filter
in the
Gateway Mode Settings
section. Figure 31 prompts for
configuration. Refer to Table 18
for more information of the parameters.

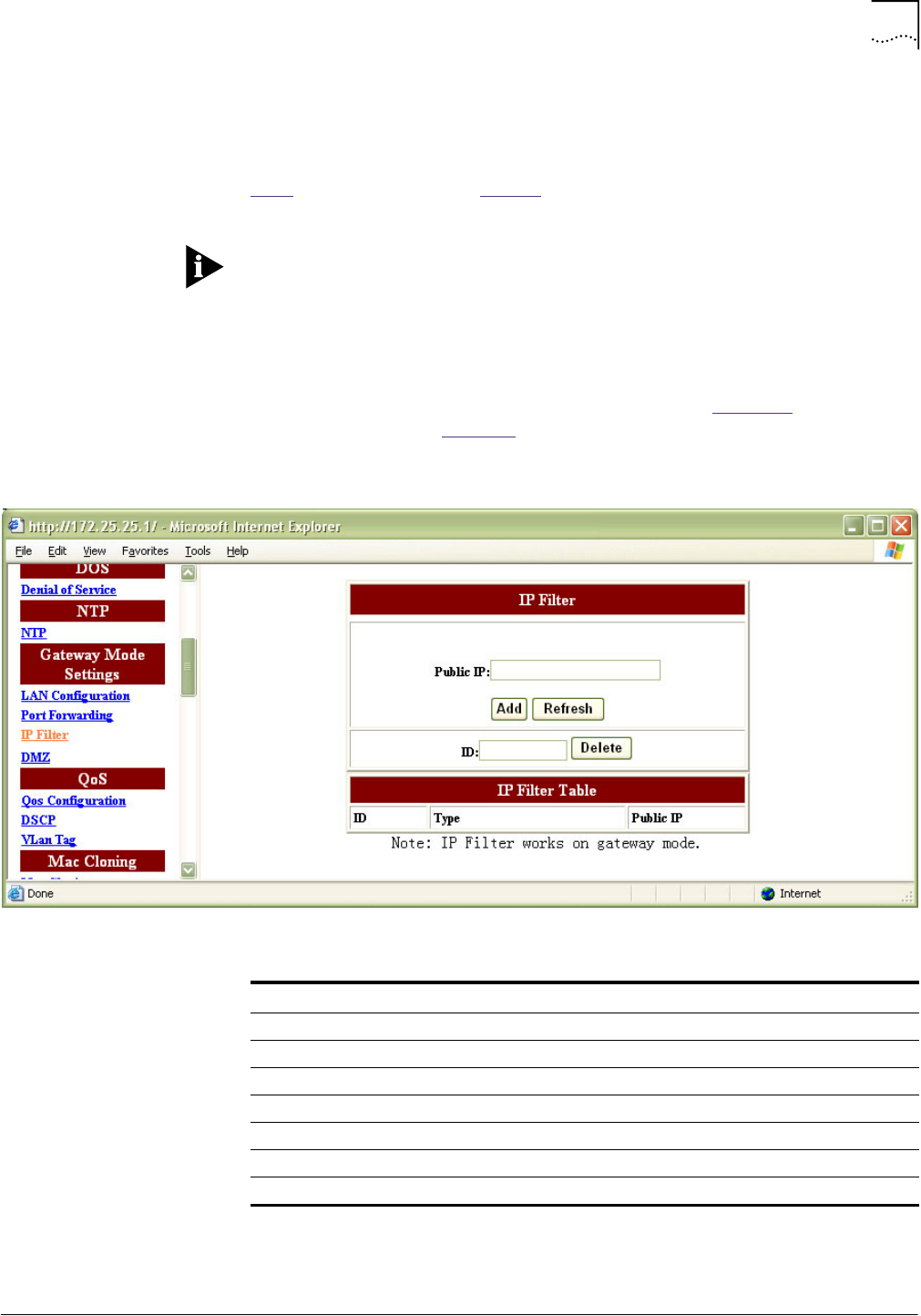

Figure 31
Gateway Mode Settings - IP Filter
Configure the parameters accordingly and click
Add
to create a new entry. Click
Refresh
to obtain the latest configuration information.
Table 18
Gateway Mode Settings - IP Filter Field Description
Field Description
IP Filter
Public IP The public IP address to be blocked.
ID The ID of the filter rule from the IP filter table.
IP Filter Table
ID A unique ID number assigned by the system.
Type IP filter.
Public IP The public IP address to be blocked.
