Save the configuration and Reboot the module for the new configuration to take
effect.
Note: Refer to DHCPC Status for PPPoE status.
Device Mode iAN-02EX has two operational modes: Bridge mode and Gateway mode. With
bridge mode, iAN-02EX acts as a transparent bridge to pass traffic between the
module and an end-user device. The WAN port and the LAN (ENET) port share
the same IP address. With gateway mode, iAN-02EX acts as a NAT device and
so that a group of users can use a private IP address in a LAN environment. The
WAN port and the LAN (ENET) port have distinct IP addresses.
Click
Device Mode in the WAN section. Figure 25 prompts for configuration.
Refer to Table 12
for more information of the parameters.

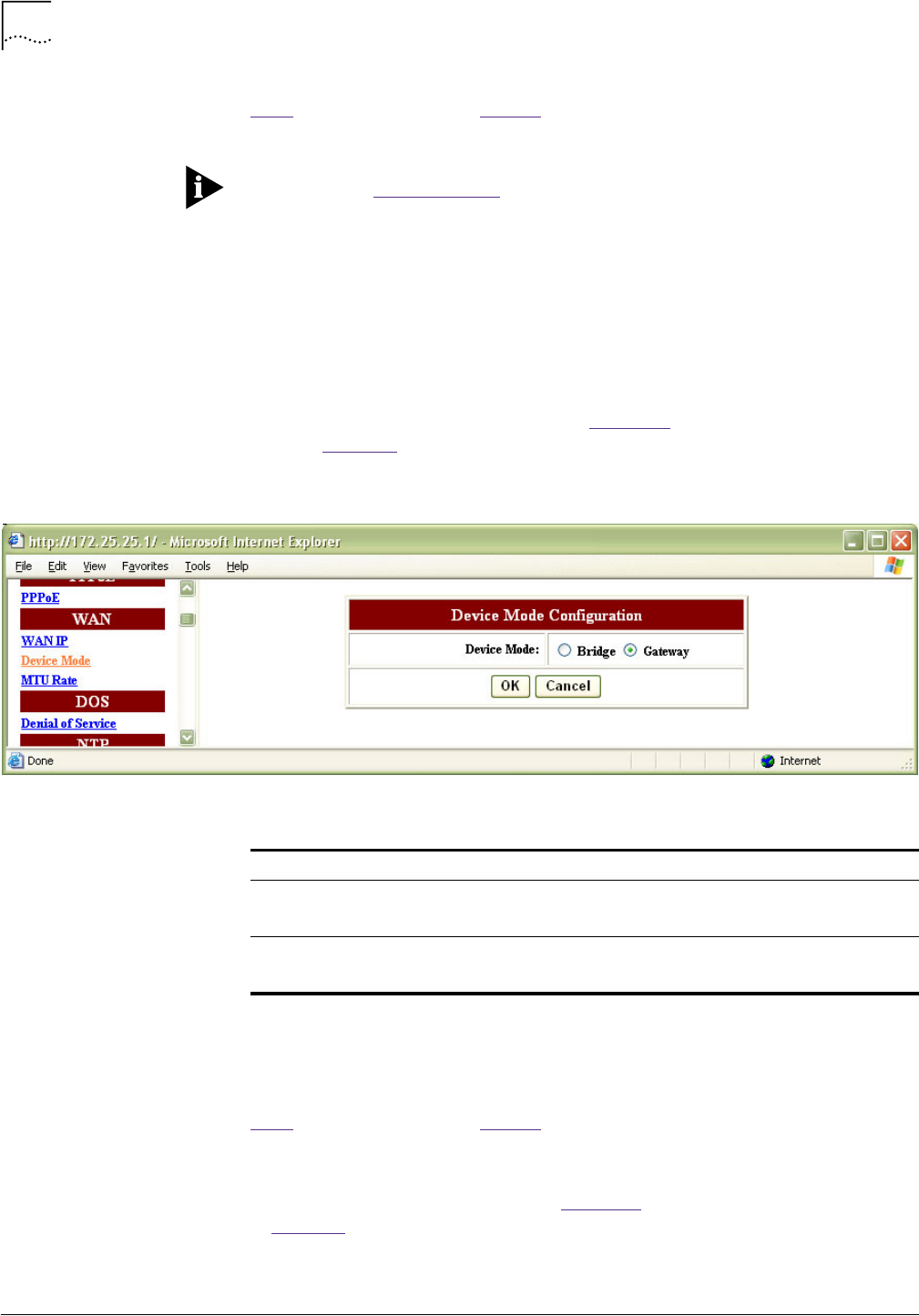

Figure 25 WAN - Device Mode
Configure the parameters accordingly. Click
OK to confirm the modification or
click
Cancel to discard the modification.
Save
the configuration and Reboot the module for the new configuration to take
effect.
MTU Rate Click MTU Rate in the WAN section. Figure 26 prompts for configuration. Refer
to Table 13
for more information of the parameters.
Table 12 WAN - Device Mode Field Description
Field Description
Bridge The LAN port (ENET) is bridged to the WAN Port.
NAT function is disabled.
Gateway NAT is applied between the LAN (ENET) and WAN Port.
Default mode.
