Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005

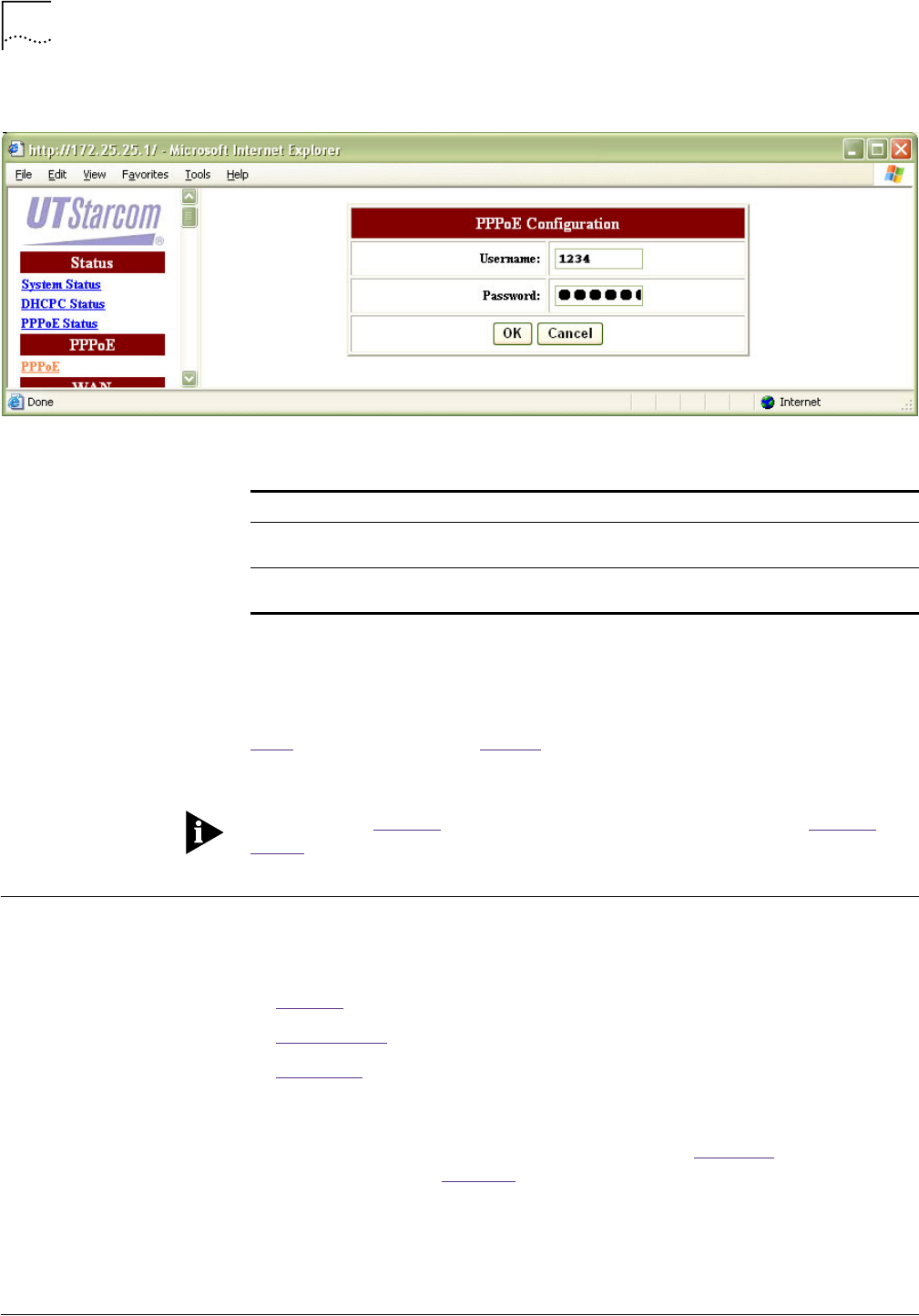

Figure 23
PPPoE - PPPoE
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save
the configuration and Reboot the module for the new configuration to take
effect.
Note: Refer to WAN IP for PPPoE mode configuration and refer to PPPoE
Status for PPPoE status.
WAN
The WAN port is the connection of the iAN-02EX module to the existing
broadband device such as cable modem or ADSL CPE. The WAN provision
contains the following sections:
■
WAN IP
■
Device Mode
■
MTU Rate
WAN IP
iAN-02EX supports three methods of obtaining the WAN IP address; static,
DHCP or PPPoE. Click
WAN IP
in the
WAN
section. Figure 24 prompts for
configuration. Refer to Table 11
for more information of the parameters.
Table 10
PPPoE - PPPoE Field Description
Field Description
Username User name for PPPoE registration recognized by the Internet
service provider
Password Password for PPPoE registration recognized by the Internet
service provider
