PPPoE
43
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
PPPoE Status
Click
PPPoE Status
in the
Status
section. Figure 22 prompts for current PPPoE
status. Refer to Table 9
for more information of the parameters.

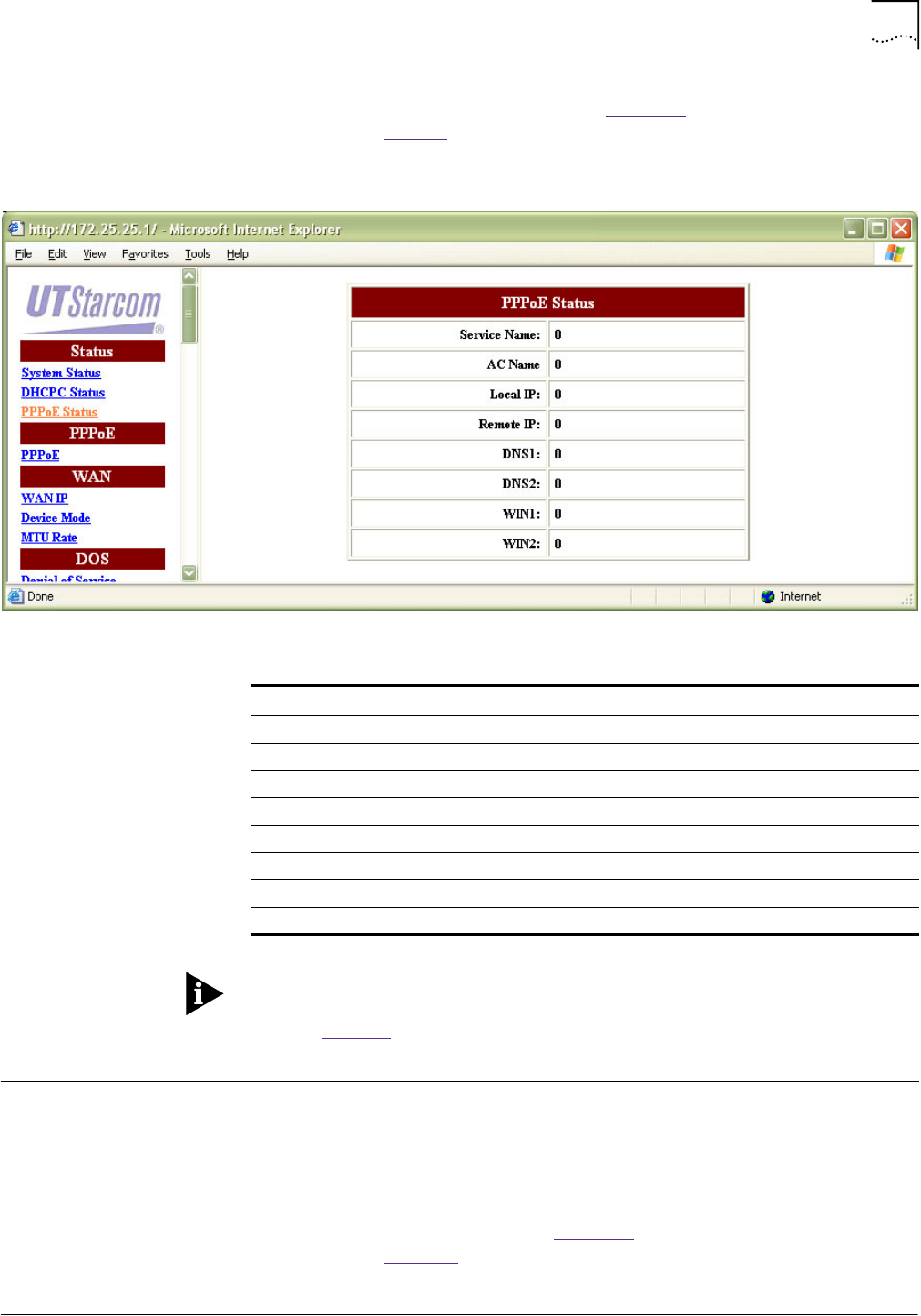

Figure 22
Status - PPPoE Status
Note: The parameters contain meaningful data only when PPPoE scheme is
used for WAN connection. All parameters are 0 or null when PPPoE is not used.
Refer to WAN IP
for WAN connection mode configuration.
PPPoE
PPPoE
A valid pair of user name and password is required when PPPoE mode is
selected for obtaining the WAN IP address for the iAN-02EX VoIP gateway.
Click
PPPoE
in the
PPPoE
section. Figure 23 prompts for current PPPoE
status. Refer to Table 10
for more information of the parameters.
Table 9
Status - PPPoE Status Field Description
Field Description
Service Name The service group name
AC Name Specific server account details
Local IP The Client IP address
Remote IP The Server IP address
DNS1 The IP address of domain name server 1
DNS2 The IP address of domain name server 2
WIN1 The IP address of WIN Server 1
WIN2 The IP address of WIN Server 2
