Note: The parameters contain meaningful data only when static IP address
scheme is used for WAN connection. All parameters are 0 or null when static IP
is not used. Refer to WAN IP
for WAN connection mode configuration.
DHCPC Status
Click
DHCPC Status
in the
Status
section. Figure 21 prompts for current DHCP
status. Refer to Table 8
for more information of the parameters.

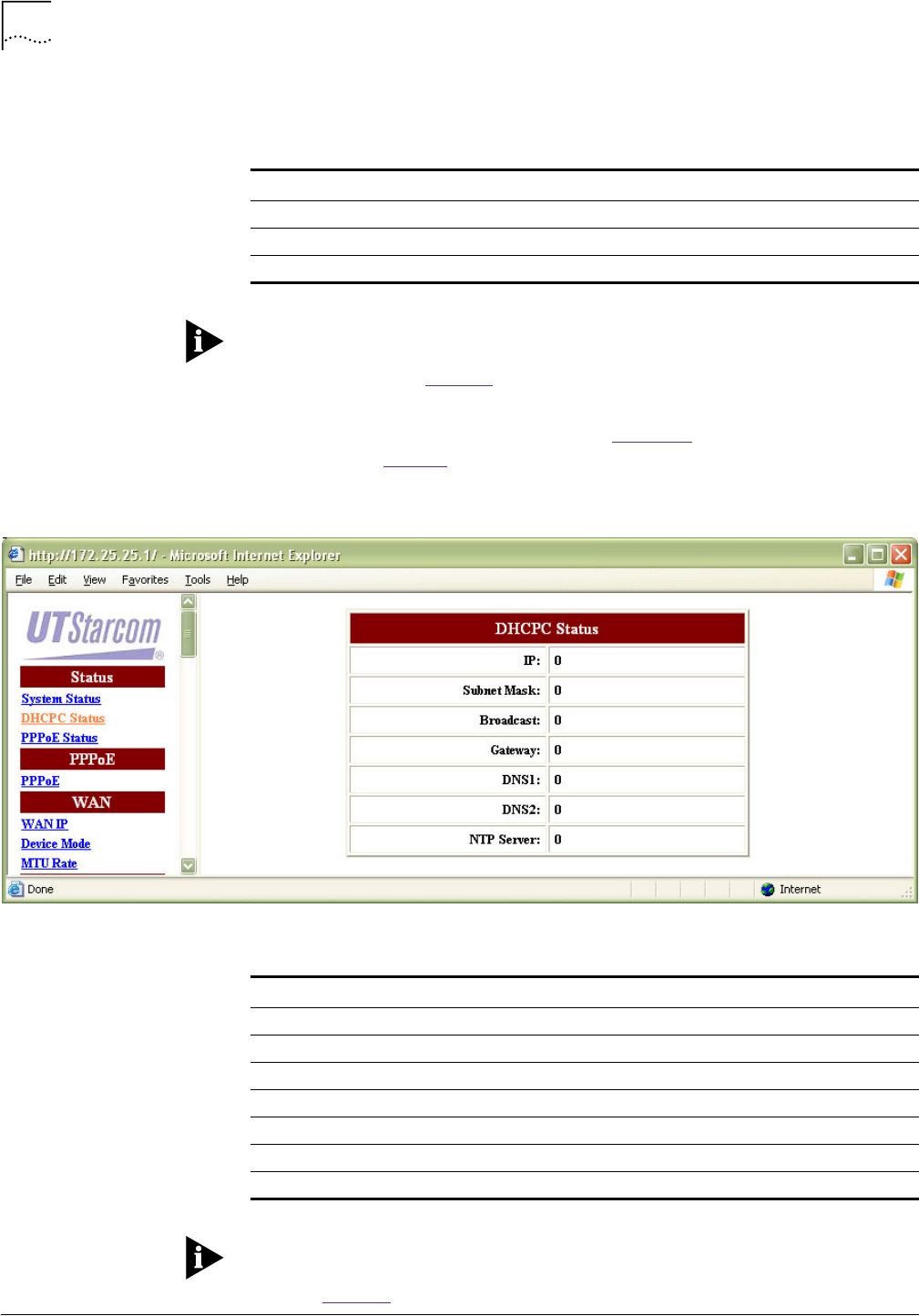

Figure 21
Status - DHCP Status
Note: The parameters contain meaningful data only when DHCP scheme is
used for WAN connection. All parameters are 0 or null when DHCP is not used.
Refer to WAN IP
for WAN connection mode configuration.
Table 7
Status - WAN Status Field Description
Field Description
WAN IP Address The IP address of the WAN
WAN Subnet Mask The subnet mask of the WAN
Default Gateway The gateway address of the WAN
Table 8
Status - DHCP Status Field Description
Field Description
IP The IP address of the iAN-02EX VoIP gateway
Subnet Mask The subnet mask of the iAN-02EX VoIP gateway
Broadcast The DHCP broadcast address
Gateway The gateway address of the iAN-02EX VoIP gateway
DNS1 The IP address of domain name server 1
DNS2 The IP address of domain name server 2
NTP Server The IP address of network time protocol server
