Status
41
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual

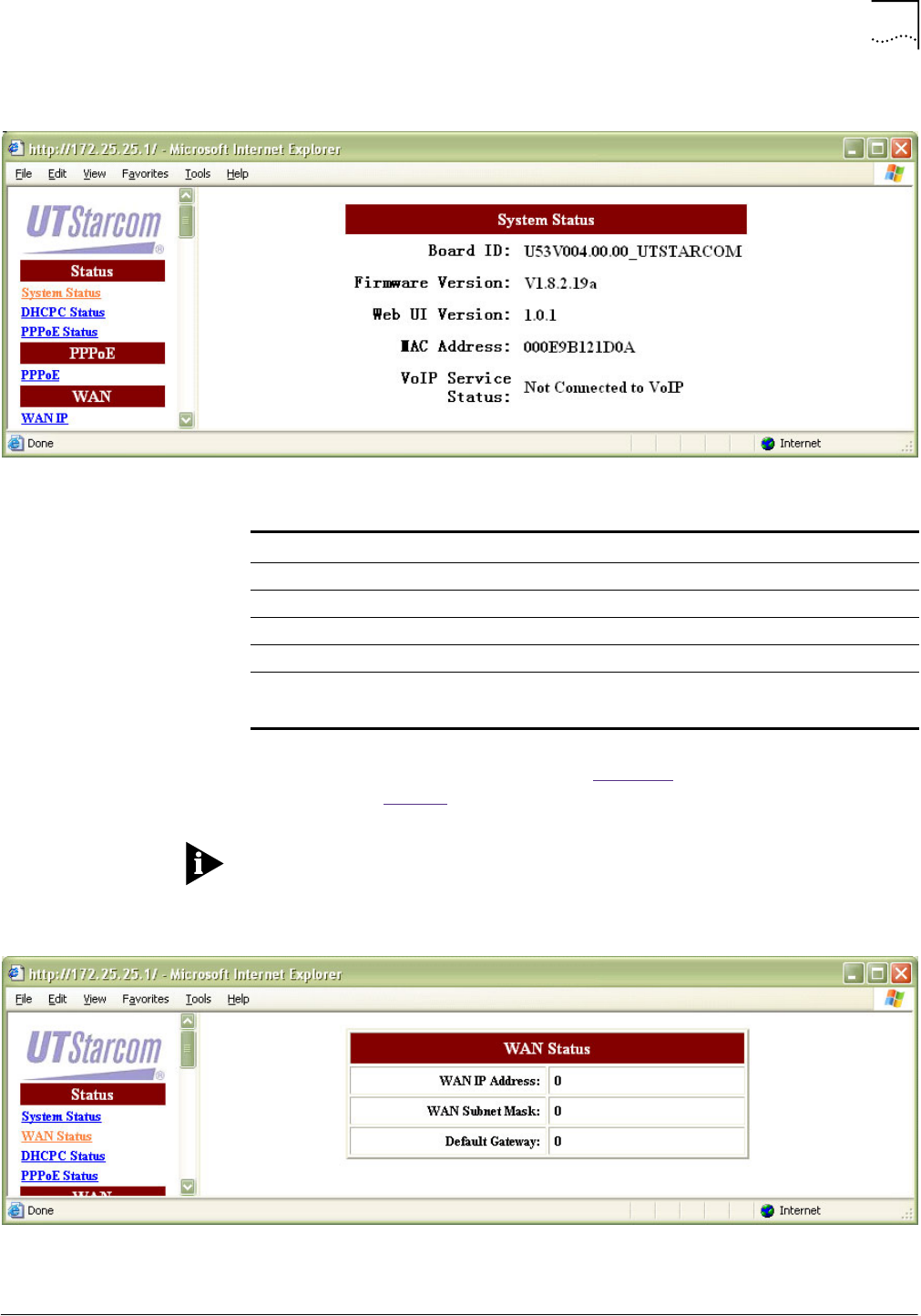

Figure 19
Status - System Status
WAN Status
Click
WAN Status
in the
Status
section. Figure 20 prompts for current WAN
status. Refer to Table 7
for more information of the parameters.
Note: This section is applicable for User mode only. It is not applicable for
Supervisor mode.
Figure 20
Status - WAN Status
Table 6
Status - System Status Field Description
Field Description
Board ID The ID number of this module
Firmware Version The current firmware version number
Web GUI Version The current Web UI version number
MAC Address The unique hardware number of this module
VoIP Service Status The current VoIP connection status
Value range: Connected to VoIP / Not Connected to VoIP.
