Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 18
Web Configuration Main Menu - Gateway Mode
Note: Click
OK
on any page to apply the modification. Navigating to another
page without clicking
OK
does not save any modifications and the configuration
are ignored. After making all necessary settings, you
MUST
Save
the
configurations and then
Reboot
for the new settings to take effect. Refer to
Save
and Reboot for more information.
Status
The Status provision contains the following sections:
■
System Status
■
WAN Status
■
DHCPC Status
■
PPPoE Status
System Status
Click
System Status
in the
Status

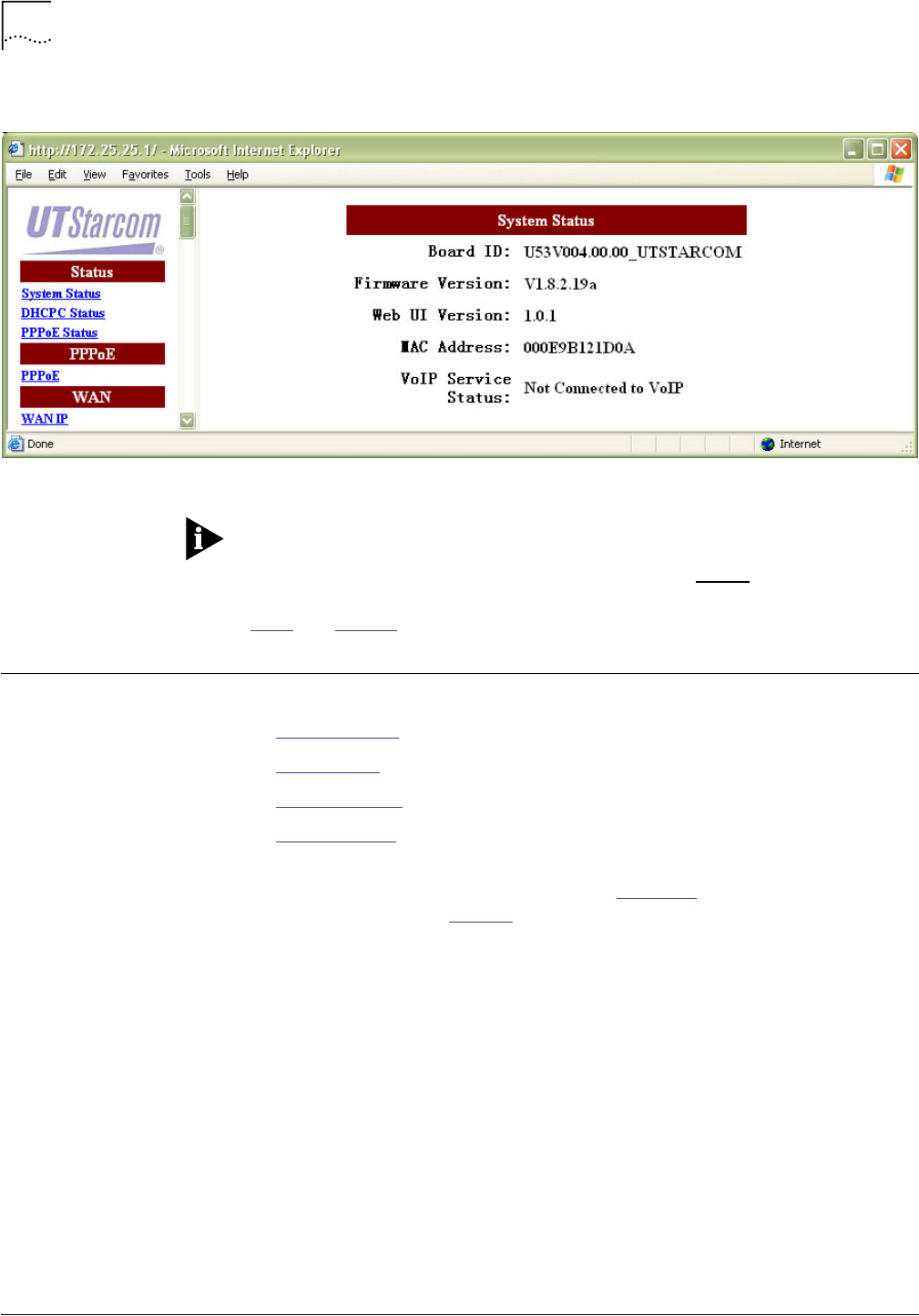

section. Figure 19 prompts for current
system status. Refer to Table 6
for more information of the parameters.
