Configuring via Web Browser
39
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual

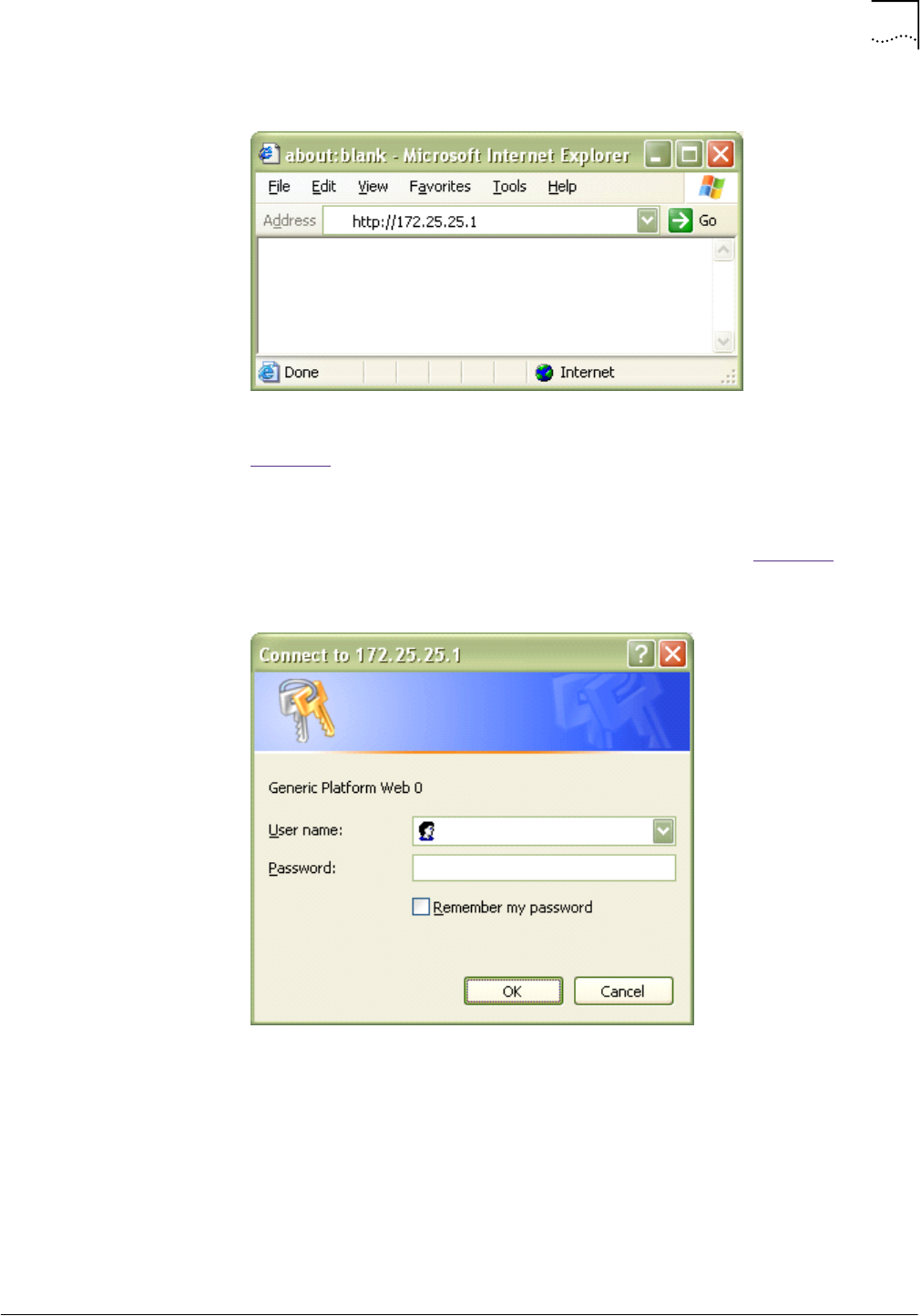

Figure 16
Starting Web Browser Window - Gateway Mode
3
Figure 17 prompts for user name and password. The web configuration menu
provides two operation modes: user mode and supervisor mode. For user
mode, enter the predefined user name as
user
with password as
12345
. For the
supervisor mode, enter the predefined user name as
supervisor
with password
as
utstar
. Click
OK
to access the configuration as shown in Figure 18.
Figure 17
User Name / Password Window - Gateway Mode
