Chapter 4: Configuring TCP/IP Protocol
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005

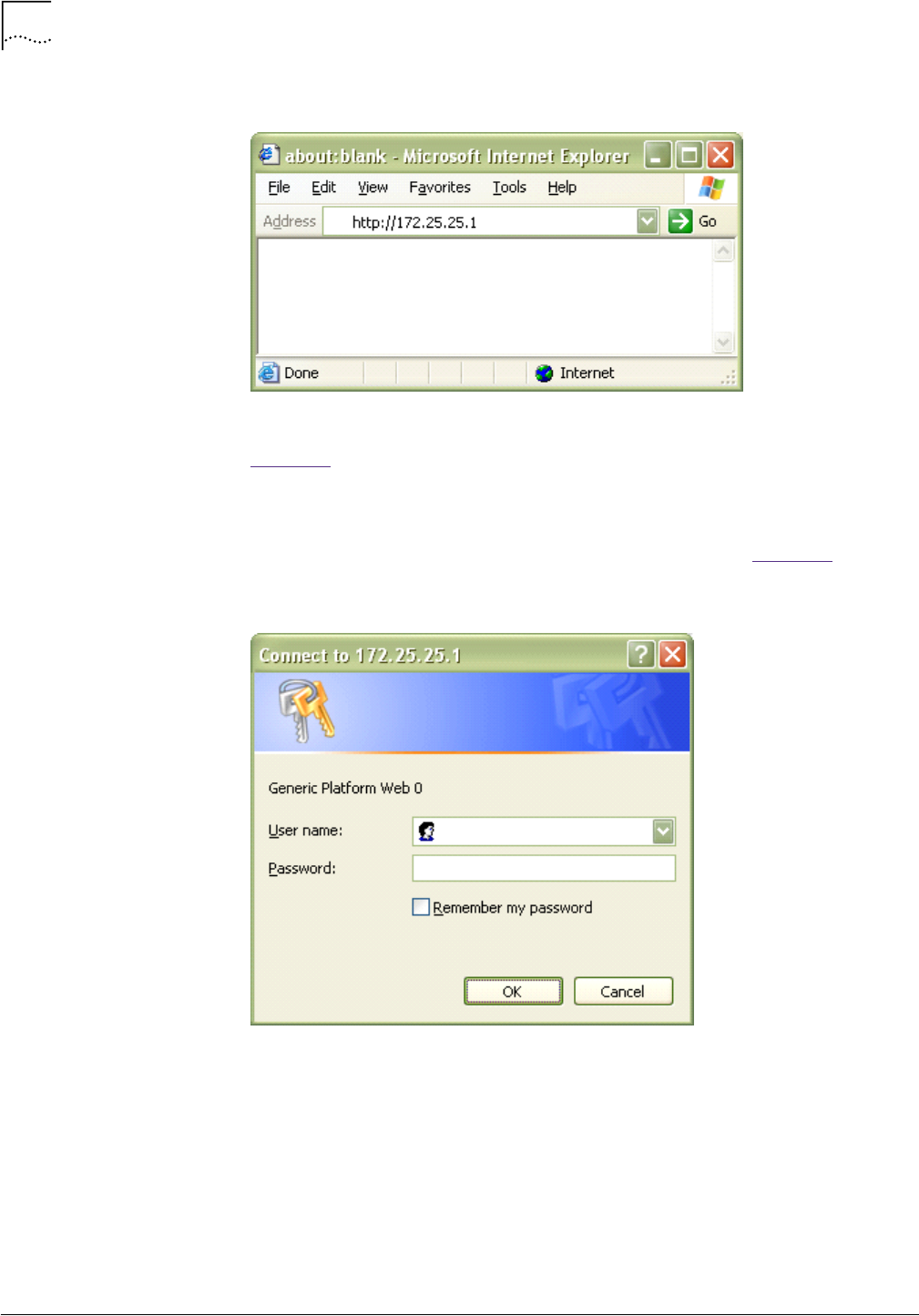

Figure 13
Starting Web Browser Window - Gateway Mode
3
Figure 14 prompts for user name and password. The web configuration menu
provides two operation modes: user mode and supervisor mode. For user
mode, enter the predefined user name as
user
and password as
12345
. For the
supervisor mode, enter the predefined user name as
supervisor
and password
as
utstar
. Click OK to access the configuration as shown in Figure 15.
Figure 14
User Name / Password Window - Gateway Mode
