28
Chapter 4: Configuring TCP/IP Protocol
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005

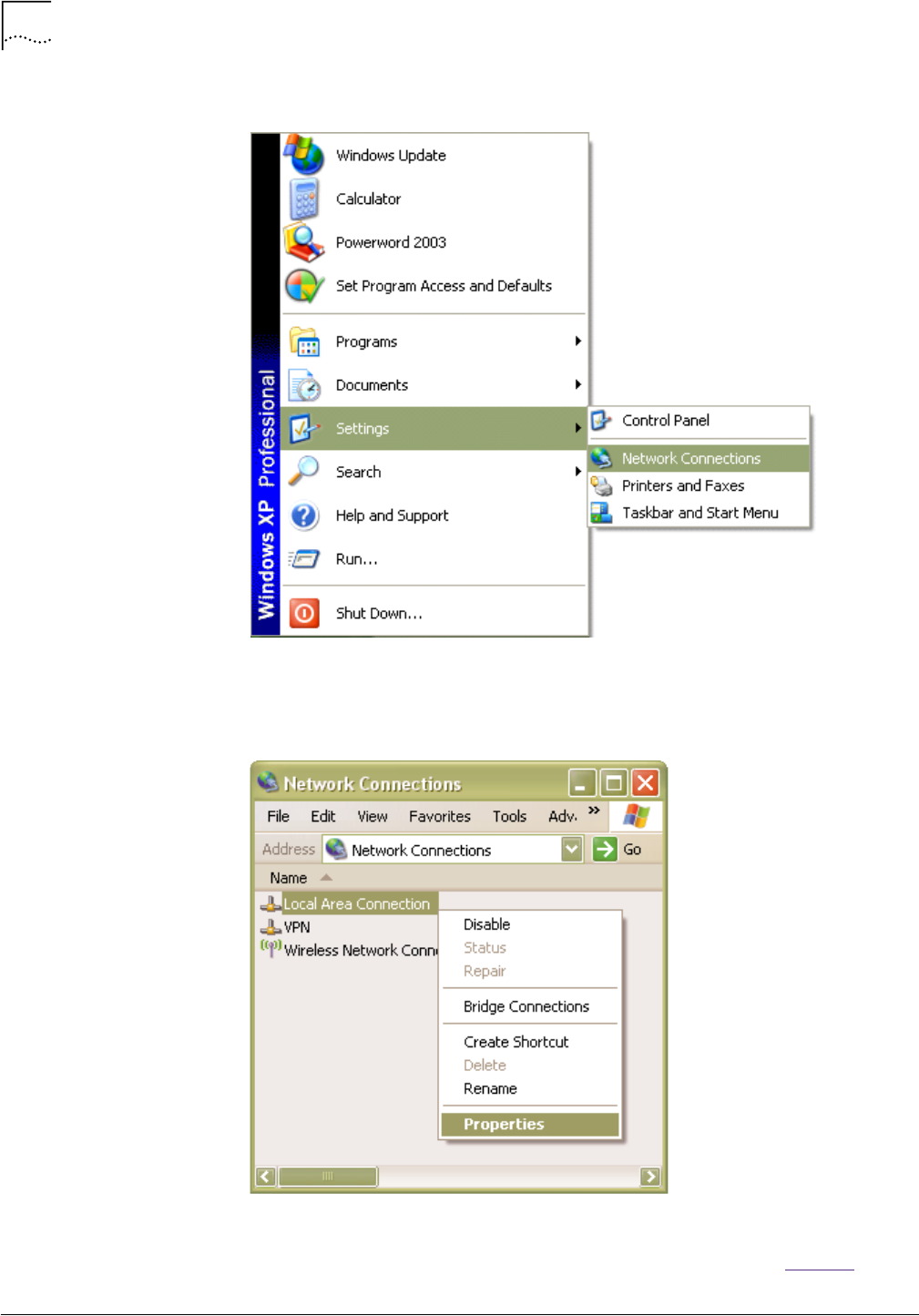

Figure 5
Settings - Network Connections - Gateway Mode
2
Right click
Local Area Connection
and select
Properties
.
Figure 6
Local Area Connection - Properties - Gateway Mode
3
Select
Internet Protocol (TCP/IP)
and then click
Properties
in Figure 7.
