Panel & LEDs

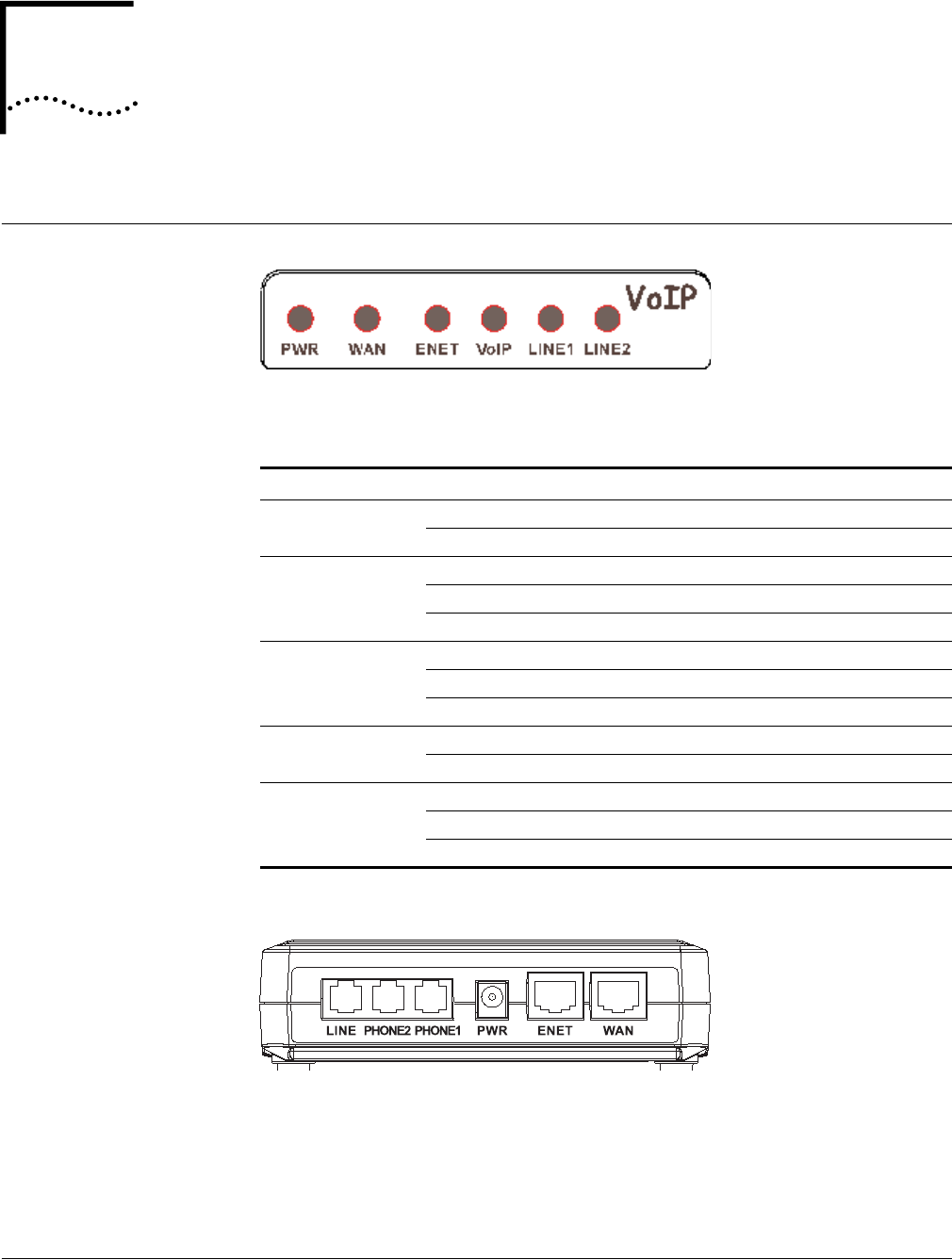

Figure 2
Front Panel of 2-Port VoIP Gateway
Figure 3
Rear Panel of 2-Port VoIP Gateway
LINE: RJ-11 connector, connected to PSTN back-up line
PHONE1 & PHON2: RJ-11 connectors, connected to IP telephones
PWR: Power connector, connected to the power adapter packaged with the
VoIP Gateway
Table 3
LED
LED Color Status Description
PWR Green On When the 2-port VoIP Gateway is powered on
Off No power supply
WAN Green Blinking When data is being transmitted or received
On When ADSL connection is established
Off When there is no ADSL connection
ENET Green Blinking When data is being transmitted or received
On When Ethernet connection is established
Off When there is no Ethernet connection
VoIP Green On When VoIP telephone service is ready
Off When VoIP telephone service is not ready
LINE1 &
LINE2
Green Blinking When there is an incoming call (the telephone is ringing)
On When the telephone is in use
Off Switches to PSTN back-up line
