Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
1
O
VERVIEW
Overview
The iAN-02EX is a Customer Premises Equipment that enables Voice over IP. It
interfaces regular POTS telephones with IP based telephony networks.
It is standalone device which provides a cost effective voice communication over
an existing broadband connection.
The iAN-02EX is a standard's based communication devices that deliver true,
next-generation voice-over-IP (VoIP) terminations to businesses and residences
worldwide. This is designed to address the needs of enterprise companies,
small-office environments, and the emerging VoIP managed voice services and
local services market by helping companies to cost-effectively turn their analog
telephones into IP devices.

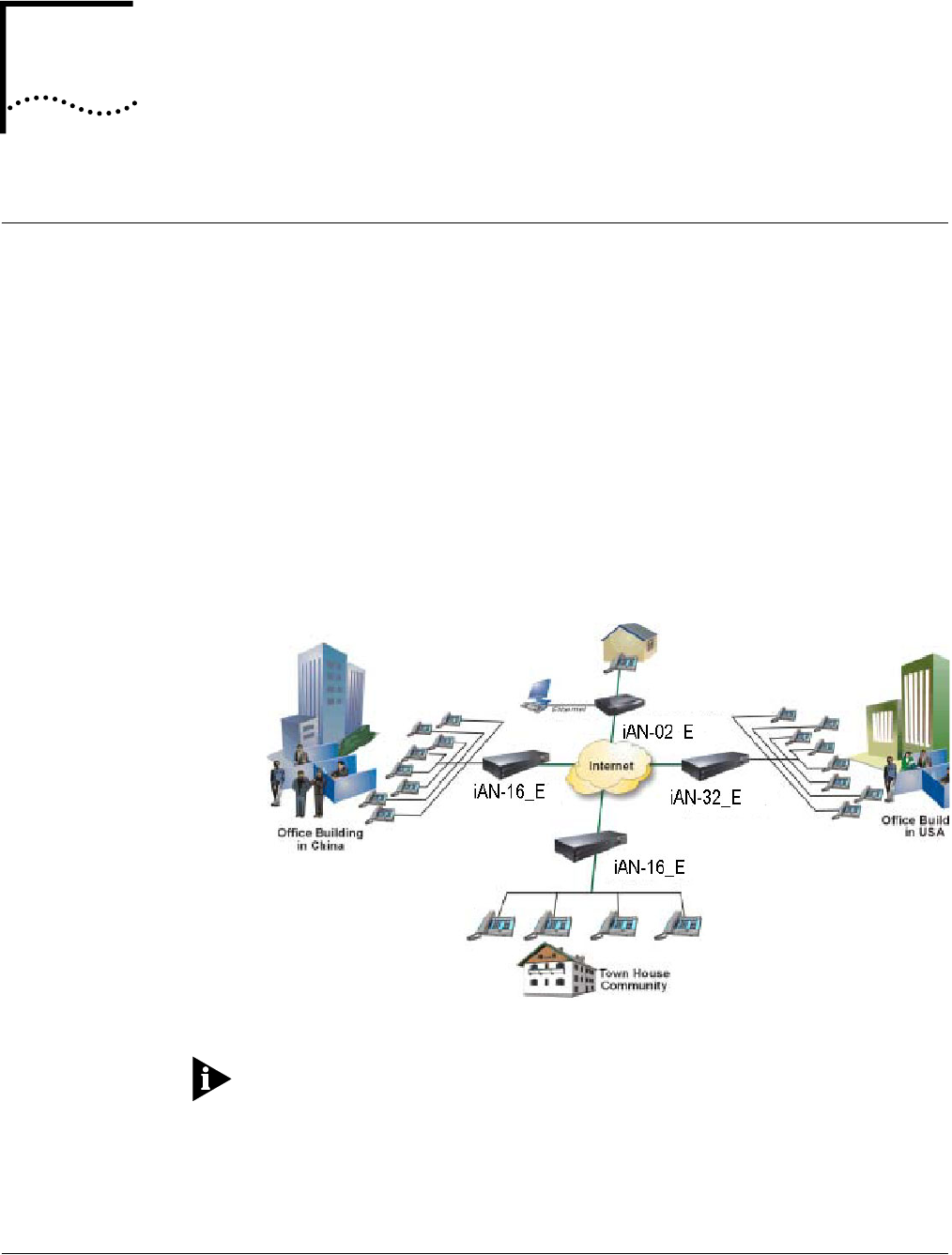

Figure 1
iAN Product Deployment Schematic
Note: The iAN-16/32_E is a product from the iAN family with 16 and 32 POTS
interfaces
The iAN-02EX CPE equipment has the following interfaces:
■
WAN Interface: 1 RJ45 10/100 Base-TX Auto-Negotiate
■
LAN Interface: 1 RJ45 10/100 Base-TX Auto-Negotiate
