3. Insert the cables firmly until they come to the end.

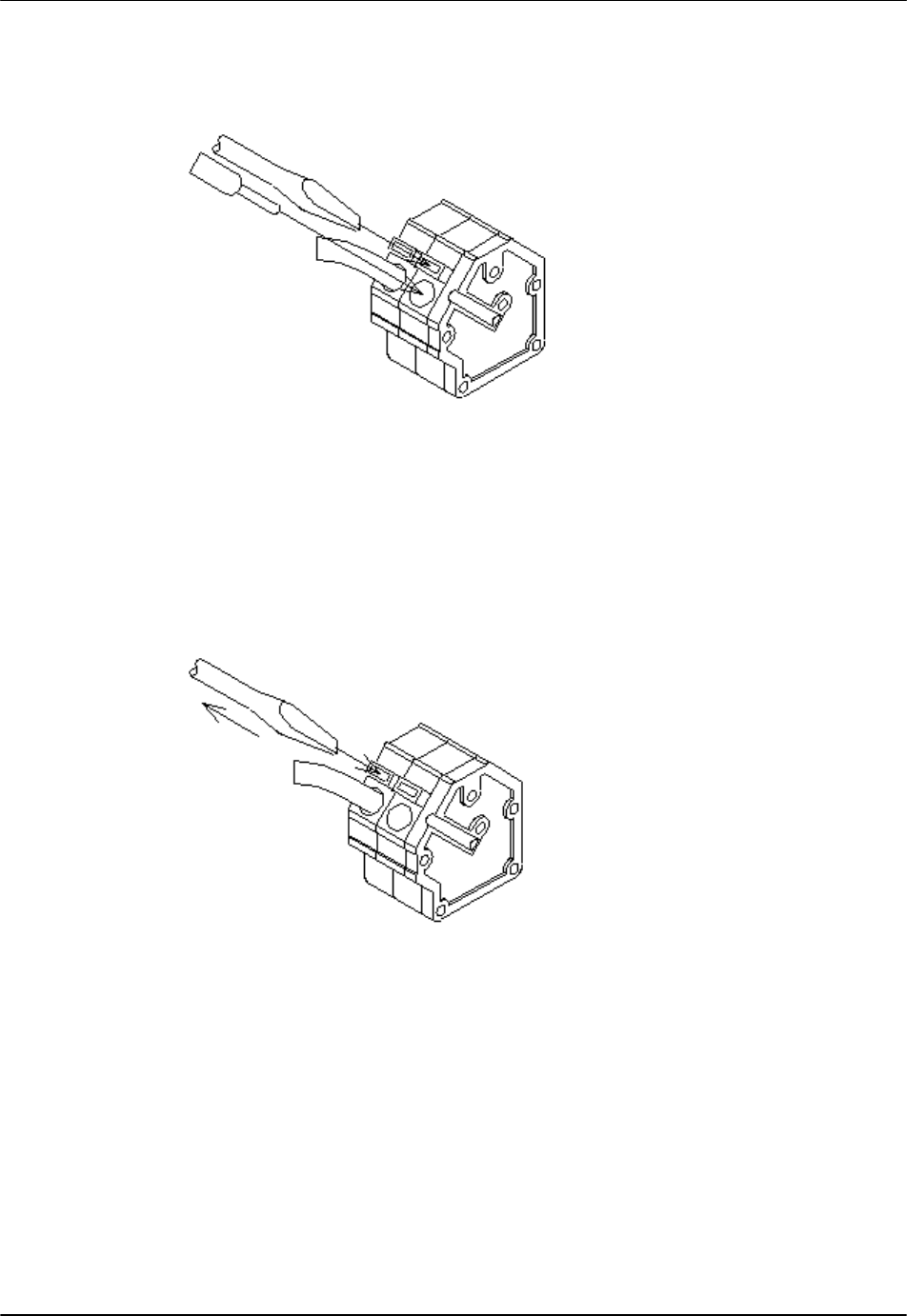

Figure 21: Inserting the Cable
4. If the cable is connected wrongly, use a proper tool to press down the button
of the terminal and pull out the attached cable. Then insert it again. The
proper tool that can be used for the purpose is a regular screwdriver (shaft
diameter: 3, nose width: 2.6)
Figure 22: Tools for Disconnecting the Cable
2.6 Fixing the AC Power Cables and FG Cables
Tighten the Power and FG cables' Bushings (3 places) firmly at the torque
indicated in Figure 23 or until the interval becomes less than 2mm.
